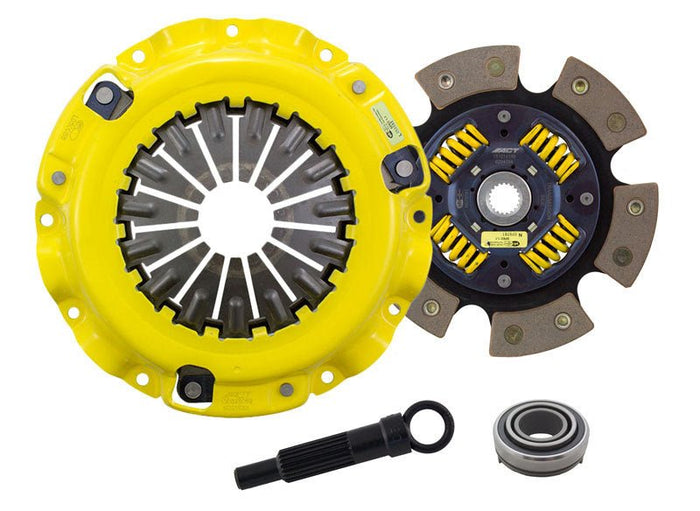

ACT MaXX/Race Sprung 6 Pad Clutch Kit (DSM)

ACT MaXX/Race Sprung 6 Pad Clutch Kit

MB1-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features:

MAXX Pressure Plate

• Clamps load increase of 70% to 150%
• Pedal feels stiff to very stiff
• All are SFI Certified to insure safety

6 Puck Sprung Disc (G6)

• Recommended for Road Racing and high power Street
• Increased torque capacity
• Very good durability and good spline life
• Quiet operation
• Reduced driveline shock
• Torque Capacity: 570 ft/lb

This Part Fits:
