Air suspension is often described in the simplest possible terms: air the car out when parked, then raise it for driving.
That description leaves out most of what makes the system work.
A complete setup includes front and rear air springs or air struts, management, compressors, a tank, air lines, fittings, wiring, sensors, mounting hardware, and calibration. Every part affects how quickly the system responds, how consistently it returns to a preset, and whether the car remains safe and comfortable at its normal driving height.
Air Lift Performance’s 3P management system controls the suspension primarily through air pressure. The 3H system adds physical height sensors while continuing to monitor pressure.
Neither is automatically the better choice. The right system depends on how much the car’s load changes, how precise the owner wants the ride height to be, and how much installation complexity the build can support.
Separate the Suspension, Management, and Air Supply
It helps to think of air suspension as three connected systems.
The suspension hardware supports the car. Vehicle-specific front and rear kits contain the air springs or air struts, dampers, mounts, and fittings needed at each axle.
The management system controls airflow. It opens and closes valves, reads pressure or height information, and stores presets.
The air supply creates and stores compressed air. This section includes the compressor or compressors, tank, electrical circuit, filters, drain system, lines, and fittings.
One category cannot be planned properly without the others. Large air springs paired with an undersized supply may feel slow to adjust. A powerful compressor connected through weak wiring can create electrical problems. Accurate 3H management cannot compensate for poor sensor geometry or inadequate suspension travel.
The complete system needs to be designed around the car’s intended use.
Air Lift 3P vs. 3H
| Feature | Air Lift 3P | Air Lift 3H |
|---|---|---|
| Primary feedback | Air-spring pressure | Physical height sensors plus pressure |
| Installation complexity | Simpler, with no external height-sensor linkages | Adds sensors, brackets, linkages, wiring, and calibration |
| Response to changing load | The same pressure may produce a different height with passengers or cargo | Height feedback can return the chassis closer to the saved target |
| Best fit | Street and show cars that prioritize simpler installation | Builds that need more repeatable physical height under changing loads |
How 3P Pressure-Based Management Works
Air pressure is related to how much load each air spring supports. A 3P system can save pressure-based presets for common positions such as parked, normal driving, or extra clearance.
For many street and show cars, this works very well.
The main limitation is that pressure does not always equal the same physical height. Add passengers, fuel, luggage, or audio equipment and the same pressure may leave one end of the car sitting slightly lower.
That does not make 3P inaccurate or unreliable. It simply means the owner should expect some variation when the vehicle’s load changes.
For a car that usually carries the same driver and has a consistent setup, 3P can provide the desired balance of control, simplicity, and clean installation.
What 3H Height Sensors Add
Air Lift 3H adds sensors that measure suspension position through small mechanical linkages.
This gives the management system more information. Instead of relying only on pressure, it can use physical height feedback to move the chassis closer to a saved target.
That makes 3H useful for cars that regularly carry passengers, luggage, fuel, or other changing loads. It can also be valuable when wheel-to-fender position needs to remain visually consistent.
The tradeoff is installation complexity.
Each sensor arm needs a safe range of motion through the suspension’s full travel. The linkage cannot bind, overextend, contact the chassis, or sit where road debris can easily damage it.
Poor sensor geometry can make calibration unreliable. A height sensor mounted at the wrong angle may use too little of its available range or move unpredictably as the suspension travels.
3H is not simply 3P with an extra option turned on. It requires careful mechanical planning.
Vehicle-Specific Front and Rear Kits Matter
Air management does not replace the need for the correct vehicle-specific suspension hardware.
Front and rear kits are often sold separately because each axle uses different mounts, dampers, clearances, and air-spring designs. A complete car normally needs both.
For the VA-platform Subaru, the Air Lift Performance Front Kit for 2015–2021 WRX/STI provides the front suspension portion of the system.
Air Lift Performance Front Kit for 2015–2021 WRX/STI
The matching Air Lift Performance Rear Kit for 2015–2021 WRX/STI covers the rear axle. Buying one without budgeting for the other does not create a complete four-corner setup.
Air Lift Performance Rear Kit for 2015–2021 WRX/STI
Shared-platform vehicles still require careful listing verification. The Air Lift Performance Front Kit for GR Supra/Z4 shows how one product can cover related vehicles, but the exact year, chassis, drivetrain, and included hardware still need to match the car.
Air Lift Performance Front Kit for GR Supra/Z4
Similar models may use different lower mounts, top mounts, sensor provisions, or suspension geometry. Fitment should come from the current listing, not visual similarity.
Define a Normal Driving Height First
An air-suspended car can operate at many heights, but the alignment is only correct at one of them.
Choose a normal driving position where the tires clear the body, the control arms and axles operate within a sensible range, and the dampers retain enough travel to absorb bumps.
Then align the car at that height.
Changing ride height affects suspension geometry. Toe can move, camber can change, and the tires may begin contacting the body or wearing unevenly.
A low parking preset is not automatically a safe driving height. Driving fully aired out can remove suspension travel, place components at poor angles, and allow the chassis or tires to contact the road or body.
Check clearance with the steering turned from lock to lock. The suspension should also be articulated so inner fenders, lines, axles, control arms, and wheel lips can be inspected under realistic movement.
Air Supply Determines How the System Behaves
The tank and compressors do more than fill empty space in a trunk display.
Tank volume affects how much stored air is available before the compressor needs to run. Compressor output affects refill speed. Line size and fitting layout influence how quickly air can move between the tank, manifold, and air springs.
A larger tank does not fix a leak. A second compressor does not correct undersized wiring. Faster air movement does not help if the fittings or lines are routed poorly.
The electrical system needs appropriate fuses, relays, wire size, and grounding. Compressors should receive enough ventilation and be mounted securely. A display that looks clean but traps heat around the compressors can shorten component life.
Moisture management also matters. The tank and system should have practical drain access, and filters or water traps should remain serviceable after the display is finished.

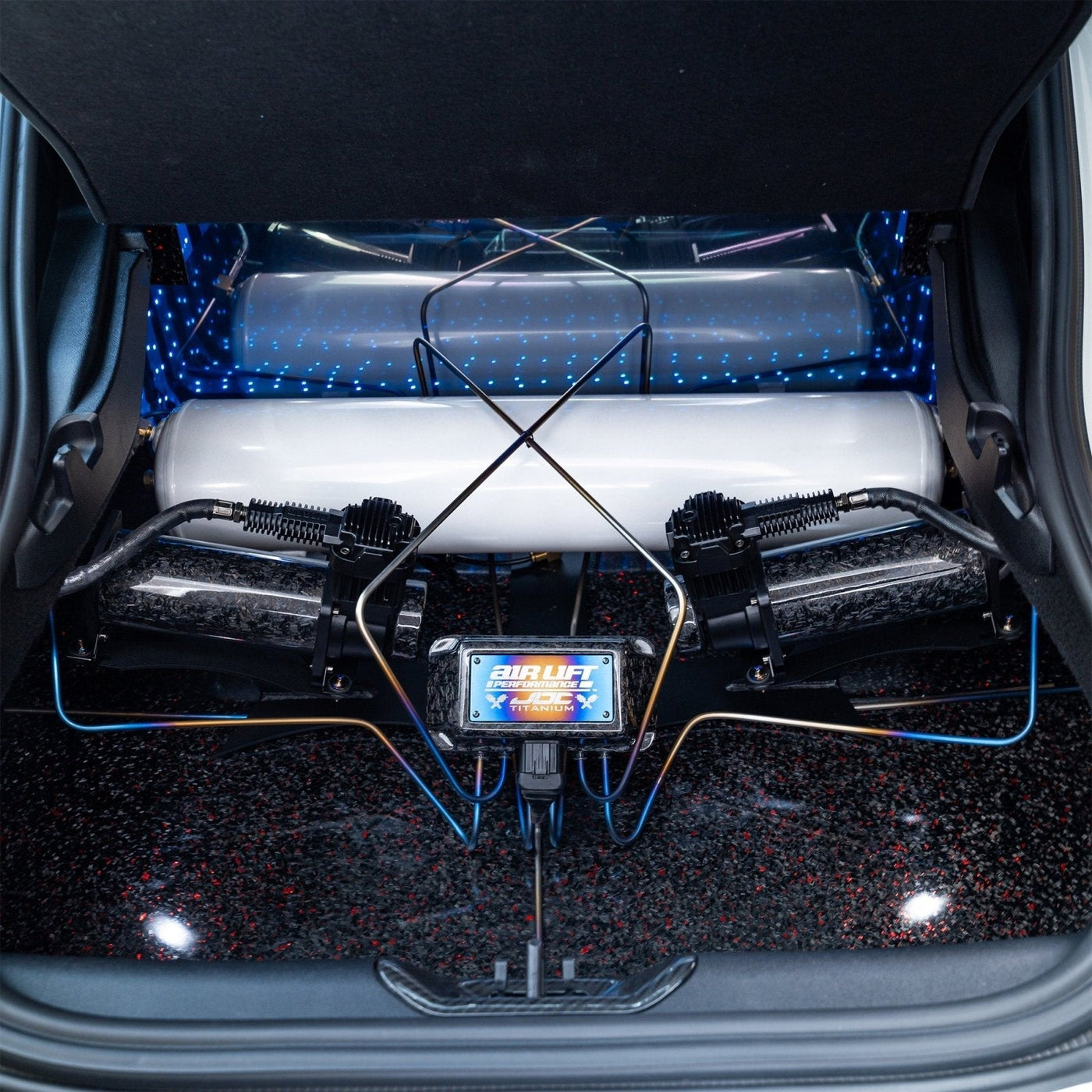

Plan the Functional Layout Before the Trunk Display
A polished hard-line display can become a major part of the build, but function needs to come first.
Plan where the tank will drain, where the compressor filters can be reached, and how the wiring can be inspected. Air lines should avoid sharp edges, exhaust heat, suspension movement, and areas where cargo can crush them.
Compressors and tanks must be securely mounted. The installation should remain safe during hard braking, rough roads, and an accident—not only while the car is parked at a show.
The JDC Titanium Air Lift 3P/3H Controller Overlay can add a finishing detail after the management system has been chosen. It works best as part of an established titanium or interior color theme, not as a substitute for planning the functional components first.
JDC Titanium Air Lift 3P/3H Controller Overlay
What to Verify Before Ordering
- Confirm the exact front and rear suspension applications for the chassis, year, and drivetrain.
- Choose 3P or 3H based on load changes, desired repeatability, and acceptable installation complexity.
- Size the compressors, tank, wiring, and lines around how frequently the system will be used.
- Plan drain access, filters, ventilation, and protected routing before designing the display.
- Define the normal drive height and check full steering and suspension clearance.
- Align and calibrate the car at its normal driving position.
- Include fittings, wiring, fabrication, alignment, and professional labor in the total budget.
Common Mistakes
- Buying front and rear air kits without budgeting for management and air supply
- Treating the lowest parking preset as a safe driving height
- Installing 3H sensors without checking their full range of motion
- Hiding compressors where they cannot cool or be serviced
- Trying to overcome a leak with a larger tank or additional compressor
- Aligning the car at a height that is not used for normal driving
- Building the trunk display before planning drains, wiring, and filter access
Maintenance Keeps Air Suspension Dependable
A reliable air suspension system still needs routine inspection.
Drain moisture according to the system design. Listen for leaks. Inspect lines near exhaust components and moving suspension. Keep compressor intake filters clean and accessible.
For 3H systems, inspect the sensor linkages and brackets for looseness, binding, or damage. Recalibrate after changing sensor geometry, suspension components, or the normal driving height.
After installation, recheck fittings, mounts, wiring, and clearances following the manufacturer’s procedure. An issue that is not obvious while the car is stationary may appear after the suspension cycles or the system reaches operating temperature.
Keep photos of the routing and records of the calibration. Good documentation makes future repairs and diagnosis much easier.
Frequently Asked Questions
Does Air Lift 3H ride better than 3P?
Not automatically. Ride quality depends mainly on the air springs, dampers, available travel, pressure, alignment, and overall setup. 3H primarily adds physical height feedback.
Can air suspension be used on track?
A properly engineered system can perform well, but it needs suitable damping, travel, temperature control, alignment, and secure routing. The setup should be chosen around the actual motorsport requirements.
Do I need two compressors?
Not always. Two compressors can improve refill speed and provide redundancy, but they also add current draw, heat, noise, cost, and installation complexity.
Will the car return to exactly the same height every time?
3H is better equipped to compensate for changing loads because it measures physical suspension position. A 3P pressure preset may produce a slightly different height when passengers or cargo are added.
Choose Management Around Repeatability
Air Lift 3P is the simpler pressure-based route and works well for many street and show builds. It reduces installation complexity while still offering useful presets and control.
Air Lift 3H adds height sensors for owners who want the car to return closer to the same physical position as load changes. That extra repeatability comes with additional brackets, wiring, calibration, and maintenance.
Either system can be dependable when the suspension, management, air supply, electrical circuit, alignment, and installation are planned together.
The clean trunk display is the visible result. Protected routing, proper electrical work, secure mounting, and a repeatable driving height are what make the car usable.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| Air suspension is a complete system | Struts, management, compressors, wiring, lines, and calibration must work together. |
| 3P controls pressure | It offers a simpler installation but may sit differently as vehicle load changes. |
| 3H adds physical height feedback | It can improve ride-height repeatability but requires sensors and careful geometry. |
| Drive height should guide the setup | Clearance, suspension travel, alignment, and calibration should be based on the normal driving preset. |
| Air supply needs electrical planning | Compressors require correct wiring, ventilation, mounting, and moisture management. |
| A larger compressor does not fix leaks | Leaks and poor routing should be repaired rather than masked with more air capacity. |
