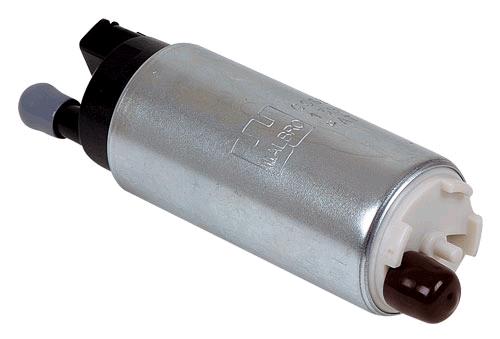

Fuel Pump In White Studio

How to Choose the Right Fuel Pump for Horsepower, Boost, and E85

Fuel-pump sizing should begin with fuel mass, operating pressure, voltage, temperature, and fuel type—not an advertised horsepower number. Learn how to read pump curves, prevent regulator overrun, size wiring, and validate fuel pressure under load.

Fuel-pump selection begins with the engine’s required fuel mass—not a universal horsepower claim printed on a box.

Ethanol content, engine efficiency, base fuel pressure, boost-referenced pressure, voltage, filter restriction, and hot-fuel behavior all change the amount of fuel a pump can actually deliver.

A pump advertised to support a certain horsepower may be adequate in one vehicle and undersized in another because the test conditions are different.

The correct goal is not to install the largest pump that fits. It is to select the smallest complete fuel system that maintains stable pressure with documented reserve under the vehicle’s worst operating conditions.

Why Horsepower Ratings Can Be Misleading

A horsepower rating is only useful when its assumptions are known.

Before comparing pumps, determine whether the claim assumes:

  • Crank horsepower or wheel horsepower
  • Gasoline, ethanol, or another fuel
  • Naturally aspirated or boosted operation
  • A specific base pressure
  • A particular charging voltage
  • A specific brake-specific fuel consumption value
  • A new filter and cool fuel

Changing any of those conditions can change the real supportable power level.

Fuel-Pump Sizing Factors at a Glance

Factor What It Means What to Verify
Power target Defines the approximate fuel-mass demand Crank or wheel basis, current target, and realistic future target
BSFC Estimates fuel consumed per horsepower-hour Engine type, boost level, fuel, and tuner estimate
Fuel density and content Changes the required fuel volume Gasoline, ethanol blend, flex fuel, or race-fuel compatibility
Operating pressure Pump flow falls as discharge pressure rises Base pressure plus boost and any low-side supply requirement
Voltage and temperature Affect pump speed, current draw, and hot-fuel behavior Actual voltage at the pump, controller strategy, and hot-flow data

Start With Fuel Mass, Not Pump Advertising

A rough fuel-demand estimate begins with target power multiplied by an expected brake-specific fuel consumption value.

That produces a fuel-mass rate.

The mass rate must then be converted to volume using the density of the selected fuel. Gasoline and ethanol blends do not require the same volume for the same target output.

The tuner or system designer should help define:

  • Target power
  • Boost pressure
  • Expected BSFC
  • Maximum ethanol content
  • Desired injector duty-cycle margin
  • Future power reserve

The calculation is a starting point. The final selection still depends on the pump curve at actual pressure and voltage.

Use Flow at Pressure, Not Free-Flow

A pump advertised at zero restriction will deliver less fuel at 50, 60, 70, or 80 psi.

As the pump works against more pressure, its flow decreases and its electrical demand may rise.

For a boost-referenced return-style system, rail pressure normally rises with manifold pressure.

For example, a system with 43.5 psi base pressure and 30 psi of boost may require the low-side pump to work near 73.5 psi, before accounting for line, filter, and fitting losses.

The pump curve must support the required volume at that combined pressure—not merely at the base-pressure number.

Voltage Changes Pump Performance

Fuel-pump flow data is incomplete without test voltage.

A pump may produce very different flow at:

  • 12 volts
  • 13.5 volts
  • 14 volts
  • A boosted controller voltage

Measure voltage at the pump under load. Battery voltage at the engine bay does not prove the pump receives the same voltage through the factory harness.

Voltage drop can come from:

  • Undersized wire
  • Old relays
  • Corroded connectors
  • Poor grounds
  • Overloaded control modules

A smaller pump with correct wiring can outperform a larger pump supplied through a weak electrical circuit.

Fuel Temperature Matters

Hot fuel can reduce pump performance and increase the risk of cavitation or vapor-related problems.

Heat may come from:

  • Continuous circulation through a return-style system
  • A large pump running at full speed during low demand
  • Exhaust heat near the tank or lines
  • Long track sessions
  • Low tank level

Use hot-flow data when it is available, especially for endurance, track, or high-power street applications.

Do not size the system around a cool bench-test number alone.

Gasoline, E85, and Flex Fuel Change the Decision

Ethanol blends typically require more fuel volume than gasoline for the same power target.

A flex-fuel system should be sized for the highest ethanol content the vehicle is expected to run.

Also confirm that the following components are compatible with the intended fuel:

  • Pump internals
  • Hoses
  • Seals
  • Filters
  • Regulator
  • Fuel rail
  • Injectors

A pump that flows enough fuel but uses incompatible materials is not a suitable choice.

For 2008 and newer Mitsubishi Evo X and 2009 and newer Lancer Ralliart applications, the MAP install kit with AEM’s 340-lph E85-compatible pump provides a vehicle-specific in-tank option. Its advertised flow still needs to be evaluated at the build’s actual pressure and voltage, and the kit removes the factory fuel filter, making an external filtration plan part of the installation.

MAP Fuel Pump Install Kit w/ AEM 340lph E85 Pump (Evo X / 09+ Ralliart)

Return-Style, Returnless, and Staged Fuel Systems

Return-Style Systems

A return-style system regulates pressure mechanically and continuously sends excess fuel back to the tank.

It can provide predictable control, but a very large pump may circulate unnecessary fuel and add heat.

Returnless Systems

A returnless system may regulate pressure by changing pump speed through a controller or factory module.

The replacement pump must be compatible with the electrical and control strategy.

Staged Multi-Pump Systems

A staged system runs one pump during low demand and activates another pump as load increases.

Correct staging can reduce:

  • Low-load fuel heating
  • Electrical demand
  • Pump noise
  • Regulator overrun

The activation strategy should be based on a reliable signal such as boost, injector duty, fuel demand, or ECU control—not an improvised switch with no validation.

An Oversized Fuel Pump Can Create Problems

Important: An oversized pump can overrun the regulator, heat the fuel, draw excessive current, increase noise, and make pressure control worse. More flow is not automatically safer.

The system must be capable of controlling excess flow at idle and low load.

Potential symptoms of excessive pump capacity include:

  • Base pressure higher than the regulator setting
  • Pressure that does not respond normally to adjustment
  • Excessive fuel temperature
  • High current draw
  • Persistent pump noise

Regulator Overrun and Return-Line Capacity

Regulator overrun occurs when the pump delivers more fuel than the regulator and return line can bypass.

The result is rail pressure that rises above the intended setting.

Solutions may include:

  • A larger or more suitable regulator
  • Greater return-line capacity
  • Staged pump control
  • Variable-speed pump control
  • A smaller primary pump

Do not assume that installing a larger regulator solves every pressure-control problem. The return path, fittings, tank entry, and plumbing must work as a complete system.

The AMS fuel-pressure-regulator kit is a return-style option for 2008–2015 Mitsubishi Evo X builds using upgraded pumps or injectors. It includes a 1:1 regulator, gauge, return plumbing, and mounting hardware, but stable control still depends on the rest of the return path being able to bypass the pump’s low-load flow.

AMS Performance Fuel Pressure Regulator Kit | Mitsubishi Evo X (AMSAMS.04.07.0001-1)

Low-Side and High-Side Fuel Systems

Direct-injected engines often use two fuel systems:

  • A low-pressure tank or lift-pump system
  • A high-pressure mechanical pump and injector system

Upgrading the low-side pump does not guarantee that the high-pressure pump or injectors can support the target.

Likewise, a larger high-pressure pump cannot perform correctly when the low side cannot supply stable pressure and volume.

Log both sides where the platform and ECU allow it.

Injector Capacity and Pump Capacity Must Be Evaluated Together

Injector flow is rated at a specified pressure differential.

Raising base pressure can increase injector flow, but it also forces the pump to work against greater pressure.

That can turn an apparent injector solution into a pump limitation.

The tuner should compare:

  • Injector flow curve
  • Pump flow curve
  • Rail pressure
  • Boost pressure
  • Injector duty cycle
  • Fuel pressure differential

Buying the injectors and pump independently can leave the system unbalanced.

For 2008–2015 Mitsubishi Evo X applications that genuinely require a high-volume injector, Fuel Injector Clinic’s 1650cc High-Z set is compatible with gasoline, E85, and several race fuels. Its size and supplied calibration data must be considered alongside pump flow, pressure differential, ECU control, and the tuner’s target rather than selected from displacement alone.

Fuel Injector Clinic 1650cc High-Z Injector Set | Mitsubishi Evo X

Electrical Supply Is Part of the Fuel System

Pump current changes with pressure and voltage.

Size the electrical system for continuous demand with appropriate margin.

Confirm:

  • Wire gauge
  • Fuse rating
  • Relay capacity
  • Connector current rating
  • Ground-path resistance
  • Controller compatibility

Follow the pump manufacturer’s wiring diagram and measure voltage drop during operation.

Do not run a large high-flow pump through factory wiring simply because the connector can be adapted.

The Aeromotive 30-amp fuel-pump wiring kit includes a relay, circuit breaker, wire, and connectors for applications whose pump current remains within the kit’s design. Final wire sizing, protection, routing, triggering, and continuous-current capacity still need to follow the pump manufacturer’s electrical requirements.

Aeromotive 30 Amp Fuel Pump Wiring Kit (Incl. Relay/Breaker/Wire/Connectors) (AER16301)

Fuel Hangers and Surge Tanks Solve Different Problems

Upgraded Fuel Hangers

An upgraded in-tank hanger may support larger or multiple pumps, improved wiring, and better pickup within the factory tank.

Radium’s 2008–2015 Evo X fuel-pump hanger supports single- or dual-pump configurations and provides provisions for factory-compatible or aftermarket feed and return plumbing. The pumps and final plumbing strategy should be selected as part of the complete system rather than assumed to be included with the hanger.

Radium Engineering 08-15 Mitsubishi Lancer Evo X Fuel Pump Hanger (RAD20-1640)

Surge Tanks

A surge tank maintains a small fuel reservoir around the high-pressure feed pump while a lift pump refills it.

This can help control starvation during:

  • Hard cornering
  • Acceleration
  • Braking
  • Low fuel level

The right choice depends on packaging, intended use, heat, noise, legal requirements, and the vehicle’s existing tank design.

The Radium Evo X surge-tank kit supplies the vehicle-specific installation components for adding a compatible Radium fuel surge tank. The surge tank itself is sold separately, so this kit should be treated as the chassis installation package rather than a complete pump-and-reservoir system.

Radium Fuel Surge Tank Kit | Mitsubishi Evo X (RAD20-0113)

Filter Selection Affects Pump Performance

A filter should protect the pump and injectors without creating excessive pressure drop.

Pre-pump and post-pump filters perform different jobs.

Confirm:

  • Micron rating
  • Filter surface area
  • Fuel compatibility
  • Flow direction
  • Service interval
  • Pressure rating

A fine filter with insufficient area can become a restriction.

Monitor pressure drop and replace filters after tank work, contamination, or unexplained increases in pump demand.

For 2008–2015 4B11T Evo X and Ralliart applications, the MAP inline fuel-filter kit provides a vehicle-specific external filtration option. It is especially relevant when using a pump installation that removes the factory filter, but its service interval and pressure drop still need to be included in system validation.

MAP Inline Fuel Filter Kit (08-15 4B11T Evo X & Ralliart)

A Reliable Fuel-Pump Selection Process

  1. Define the target. Confirm crank or wheel horsepower, fuel, boost, and future goals.
  2. Estimate fuel mass. Use a realistic BSFC value with the tuner.
  3. Convert mass to volume. Account for gasoline, ethanol content, or race-fuel density.
  4. Calculate maximum operating pressure. Include base pressure, boost, and system losses.
  5. Read the pump curve. Use the correct pressure, voltage, and fuel.
  6. Confirm material compatibility. Check pumps, hoses, seals, filters, and regulators.
  7. Evaluate pressure control. Ensure the regulator and return path can bypass low-load flow.
  8. Design the electrical system. Size the wire, relay, fuse, connectors, and ground.
  9. Add realistic reserve. Allow for heat, voltage variation, filter loading, and aging.
  10. Validate under load. Log pressure, voltage, current, and controller duty in the worst expected condition.

Which Fuel-Pump Strategy Fits the Build?

Build Type Main Priority Likely Starting Point
Pump-gas street car Moderate flow with low heat, noise, and electrical demand One correctly sized pump with reserve at operating pressure
Flex-fuel build Higher ethanol volume and material compatibility Size for maximum planned ethanol content
High-power staged system Low-load heat control and high-load volume Controlled secondary pump, upgraded hanger, or surge system

How to Validate the Fuel System

After installation, confirm performance under the conditions that place the greatest demand on the system.

Log:

  • Fuel pressure
  • Manifold pressure
  • Fuel-pressure differential
  • Battery and pump voltage
  • Pump current
  • Controller duty
  • Injector duty cycle
  • Fuel temperature where available

Pressure should remain stable relative to the target under maximum load.

A system that passes a cold dyno pull may still show problems after heat soak, a long session, low tank level, or repeated high-load operation.

Common Fuel-Pump Sizing Mistakes

  • Using a zero-pressure free-flow rating
  • Sizing from horsepower without defining BSFC or fuel
  • Ignoring pressure rise with boost
  • Running a high-current pump through factory wiring
  • Buying injectors and pumps independently
  • Assuming the largest pump is the safest option
  • Ignoring regulator and return-line capacity
  • Failing to account for hot fuel or voltage drop
  • Upgrading only one side of a direct-injection system
  • Skipping fuel-pressure logging under load

Questions to Answer Before Buying

  • Is the power target measured at the wheels or crank?
  • What BSFC does the tuner expect?
  • Which fuel and ethanol range must the system support?
  • What is the maximum operating fuel pressure?
  • At what voltage is the pump flow data published?
  • Can the regulator and return line control low-load flow?
  • How will pressure, voltage, current, and controller duty be logged?

Frequently Asked Questions

How Much Fuel-Pump Headroom Should I Have?

There is no universal percentage.

The tuner and system designer should allow enough reserve for voltage variation, heat, filter loading, aging, and the realistic future target without creating regulator, heat, or electrical problems.

Can One Fuel Pump Support Gasoline and E85?

Yes, when its materials are compatible and its flow at actual pressure covers the greater ethanol volume demand.

Is a Bigger Fuel Pump Always Safer?

No. Excess flow can overrun the regulator, heat the fuel, increase current draw, and create unnecessary noise.

How Do I Know Whether the Current Pump Is Failing?

Diagnosis should compare pressure, voltage, current, noise, and performance under load rather than relying on one symptom. See the related diagnostic guide below for a more complete process.

Key Takeaways

Key Takeaway What It Means for the Build
Start with fuel mass Horsepower claims are incomplete without BSFC, fuel type, and assumptions.
Use flow at actual pressure Base pressure, boost, and system restriction determine the pump’s real operating point.
Voltage belongs in the specification Measure supply voltage at the pump under load and size the wiring accordingly.
More flow can reduce control Oversized pumps can create heat, noise, current draw, and regulator overrun.
The fuel system must be balanced Pumps, injectors, regulator, return, filters, and electrical supply must work together.
Validation happens under load Log pressure, voltage, current, and duty under the hottest and highest-demand conditions.

Related JDC Guides

Size the fuel system from required fuel mass, maximum operating pressure, actual pump voltage, fuel compatibility, regulator capacity, and hot-condition reserve. Browse the Fuel Pumps, Surge Tanks & Install Kits collection for pumps, hangers, surge-system components, filters, and supporting installation hardware.

Size the Fuel System With Real Data

Browse pumps, surge tanks and more!

Browse Collection
