ACT HD/Perf Street Sprung Clutch Kit (17-21 Civic Type R)
The 10th Generation Civic Type R is the ultimate Honda-lovers goal. Already responsive and powerful as delivered, this latest platform is being explored for serious transformations in power output. As those improvements surpass the capabilities of the OE clutch components, ACT is again stepping up to provide the latest clutch developments - just as Honda drivers have counted on for over two decades.
HC12-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Features
-
Torque Capacity (ft/lbs.) 412
-
Torque Capacity Over OE 33%
-
Disc Material Organic
-
Friction Surface Diameter (Inches) 9.4
-
Friction Surface Diameter (mm) 240
-
Input Shaft Diameter (Inches) 1.0325
-
Spline Count 24
-
Disc Type Sprung Street Disc
-
Pressure Plate Type Heavy Duty
-
Flywheel Type Streetlite
-
Flywheel Tooth Quantity 149
-
Flywheel Mounting Hole Quantity 8
Benefits
-
Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
-
Life: Longer friction life, extended by ACT's exclusive diaphragm design
-
Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
-
Recommended Use: Recommended for street and race use
-
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 2017-2021 Honda Civic Type-R

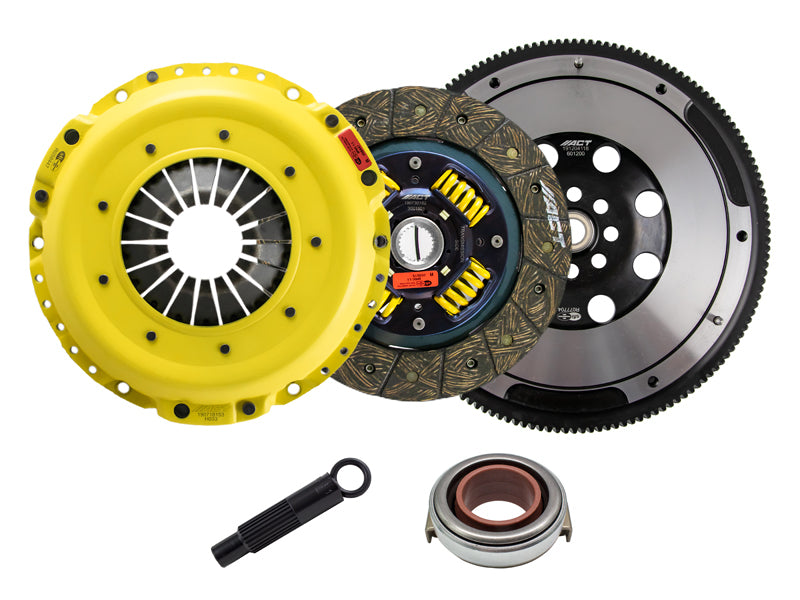

What's In The Box?
- Perf Street Sprung Disc - 3001801
- P/PL Heavy Duty Pressure Plate - H033
- XACT Flywheel Streetlite 601200
- Release Bearing - RB313
- Alignment Tool - AT61
References
Warranty
- 12 Month Manufacturer Warranty
