ACT HD/Race Sprung 4 Pad Clutch Kit (17-19 Honda Civic Type R)

The 10th Generation Civic Type R is the ultimate Honda-lovers goal. Already responsive and powerful as delivered, this latest platform is being explored for serious transformations in power output. As those improvements surpass the capabilities of the OE clutch components, ACT is again stepping up to provide the latest clutch developments - just as Honda drivers have counted on for over two decades.

HC12-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Torque Capacity (ft/lbs.) 527
• Torque Capacity Over OE 71%
• Disc Material Ceramic
• Friction Surface Diameter (Inches) 9.4
• Friction Surface Diameter (mm) 240
• Input Shaft Diameter (Inches) 1.0325
• Spline Count 24
• Disc Type Sprung Race Disc
• Pressure Plate Type Heavy Duty
• Flywheel Type Streetlite
• Flywheel Tooth Quantity 149
• Flywheel Mounting Hole Quantity 8

Benefits

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2017-2021 Honda Civic Type-R

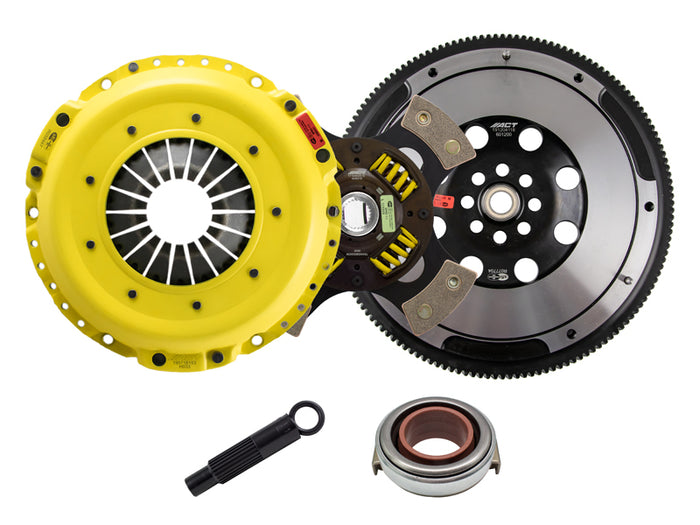

What's In The Box?

• 4 Pad Sprung Race Disc - 4240210
• P/PL Heavy Duty Pressure Plate - H033
• XACT Flywheel Streetlite 601200
• Release Bearing - RB313
• Alignment Tool - AT61

References

• Installation Manual

Warranty

• 12 Month Manufacturer Warranty
