ACT HD Race Clutch Kit w/ Rigid 6-Pad Disc (88-97 MK3 Supra)

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 6-pad rigid race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

• Torque Capacity (ft/lbs): 365 ft/lbs
• Torque Capacity (% Over OE): 69%

Applications

• 1988 - 1992 Toyota Supra 3.0L 7M-GE
• 1993 - 1997 Toyota Supra 3.0L 2JZ-GE
• 1992 - 1997 Lexus SC300 3.0L 2JZ-GE

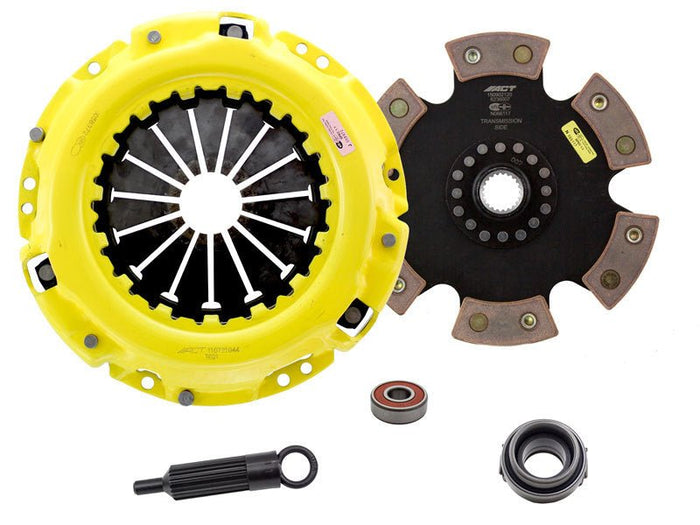

What's In The Box?

• 1 - Heavy Duty Pressure Plate
• 1 - Rigid 6-Pad Race Disc
• 1 - Release Bearing
• 1 - Pilot Bearing
• 1 - Alignment Tool

References

• Installation Instructions

Warranty

• ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
