ACT Xtreme Race Clutch Kit w/ Rigid 4-Pad Disc (87-92 Toyota Supra 3.0L Turbo)

This kit features ACT's Xtreme pressure plate paired with their ceramic 4-pad rigid race disc.

ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high-quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

• Torque Capacity (ft/lbs): 630 ft/lbs
• Torque Capacity (% Over OE): 109%

Applications

• 1987 - 1992 Toyota Supra 3.0L Turbo

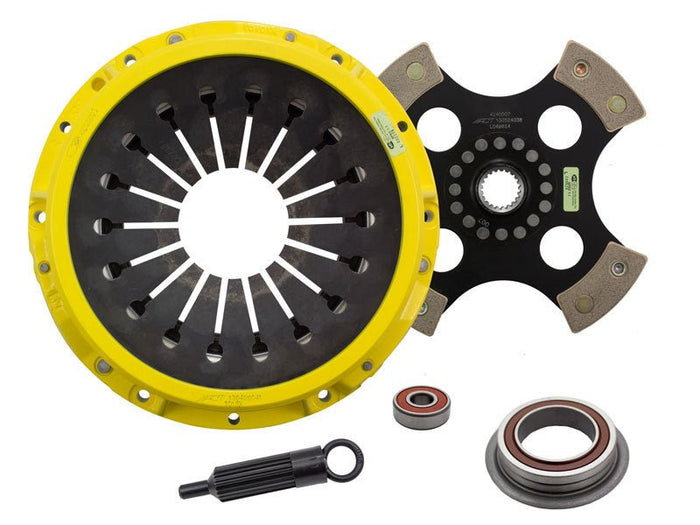

What's In The Box?

• 1 - Xtreme Pressure Plate
• 1 - Rigid 4-Pad Race Disc
• 1 - Release Bearing
• 1 - Pilot Bearing
• 1 - Alignment Tool

References

• Installation Instructions

Warranty

• ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
