ACT MaXX/Race Sprung 4 Pad Clutch Kit (DSM)

MB1-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Torque Capacity (ft/lbs.) 570
• Torque Capacity Over OE 125%
• Disc Material Ceramic
• Clutch Disc Diameter (Inches) 8.8
• Clutch Disc Diameter (Millimeters) 224
• Input Shaft Diameter (inches) 0.875
• Pressure Plate Type MaXX

Benefits

• Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, mild to moderate gear rattle
• Moderate friction life, extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for high horsepower street or race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 1990-1999 1G/2G DSM

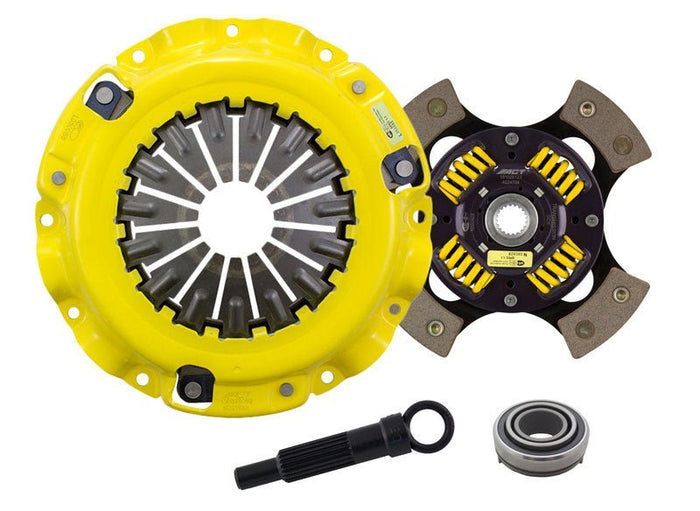

What's In The Box?

• (1) 4 Pad Sprung Disc 4224704
• (1) MaXX Xtreme Pressure Plate MB010XX
• (1) Alignment Tool AT20
• (1) Release Bearing RB210

References

• Installation Manual

Warranty

• Manufacturer Standard Warranty
