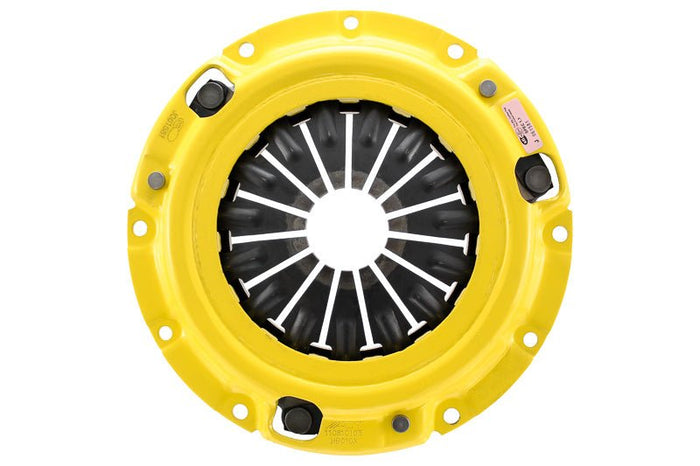

ACT Pressure Plate
All ACT pressure plates feature longer clutch life achieved through ACT's exclusive diaphragm design, smooth and precise feel with easy modulation, quiet, trouble-free operation by use of strong drive straps, less vibration even at high rpm because of dynamic balancing, and a variety of designs available - All factory push, pull, crimp and rivet designs.
Product Details
- Clamps load increase of 50% to 120%
- Pedal feels moderate to stiff
- SFI Certified to insure safety (Rated to 10,000 RPM)
- Recommended disc: Street or Race
Vehicle Applications:
- Dodge Colt Vista 1992-1996 (2.4L)
- Dodge Stealth 1991-1999 (3.0L / 2WD)
- Dodge Summit 1992-1995 (2.4L)
- Eagle Talon 1989-1992 (FWD/AWD / Turbo / 6-bolt)
- Eagle Talon 1992-1999 (FWD/AWD / Turbo / 7-bolt)
- Mitsubishi 3000GT 1990-1999 (2WD)
- Mitsubishi Eclipse 1989-1992 (FWD/AWD / Turbo / 6-bolt)
- Mitsubishi Eclipse 1992-1999 (FWD/AWD / Turbo / 7-bolt)
- Mitsubishi Eclipse 1996-2003 (non-turbo / 4cyl. / 2.4L)
- Mitsubishi Eclipse 2000-2005 (non-turbo / 2.4L)
- Mitsubishi Expo 1991-1996 (2.4L)
- Mitsubishi Galant 1991-1992 (AWD / Turbo / VR4 / 2.0L)
- Mitsubishi Galant 1992-1993 (AWD / non-turbo / DOHC / 2.0L)
- Mitsubishi Galant 1994-1997 (all 2.4L, 2.5L)
- Plymouth Laser 1989-1992 (FWD/AWD / Trubo / 2.0L / 6-bolt)
- Plymouth Laser 1992-1994 (FWD/AWD / Trubo / 2.0L / 7-bolt)
Key Features:
- Diaphragms are induction hardened on the release bearing contact area to reduce wear and promote smooth operation
- Cover stampings are sometimes reinforced by ACT to reduce flex and improve the efficiency and feel of the pressure plate
- Stronger drive straps and rivets are used when needed to strengthen the pressure plate and prevent breakage
- Up to four clamp load ratings are available (some applications) ‚Ǩ‚Äú choose between a Sport, Heavy Duty, Xtreme or MaXX Xtreme pressure plate
- We load test every pressure plate on a special computerized testing press for quality assurance. This same machine also assists in designing new products and evaluating parts that are in for service
- Proper release travel, clamp load, pedal effort, and working range are analyzed using specialized testing equipment and software
- All castings are CNC machined for greater consistency and precision
- ACT pressure plates feature a special single diaphragm design to dramatically increase clamp load without the adverse effects of double diaphragm type clutches
- Precision cover stampings provide rigidity, consistency and are cost effective
- Creative diaphragm designs are used to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four stage heat treating process for unparalleled performance
- Most ACT pressure plates are certified as meeting SFI Specification 1.1. and are legal for competition in all racing organizations where SFI certification is required
- All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
