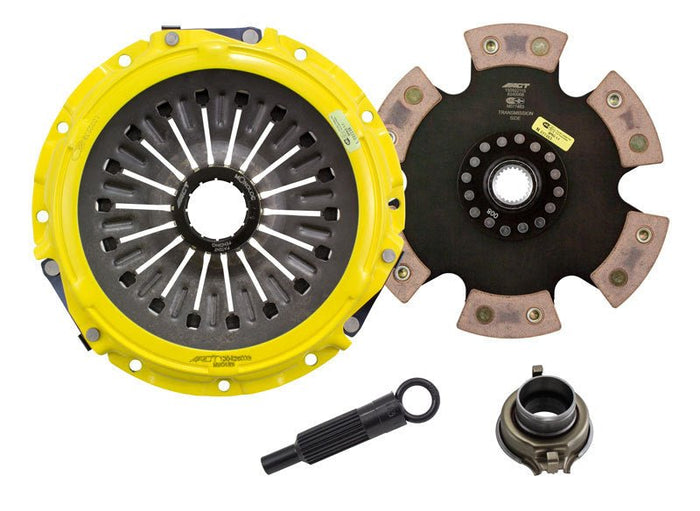

ACT Xtreme Duty 6 Puck Solid Disc Clutch Kit (Evo 8/9)

ACT Xtreme Duty 6 Puck Solid Disc Clutch Kit

ME2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high-quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features:

6 Puck Solid Disc (R6)

• Increased torque capacity
• Faster shifts & reduced inertia
• Very good durability but shortened spline life
• Absorbs more heat than 4 pad
• Harsh engagement with some chatter
• Not recommended for street use

XT Pressure Plate

• Clamps load increase of 50% to 120%
• Pedal feels moderate to stiff
• Many are SFI Certified to insure safety
• Torque Capacity: 725 ft/lb

This Part Fits:
