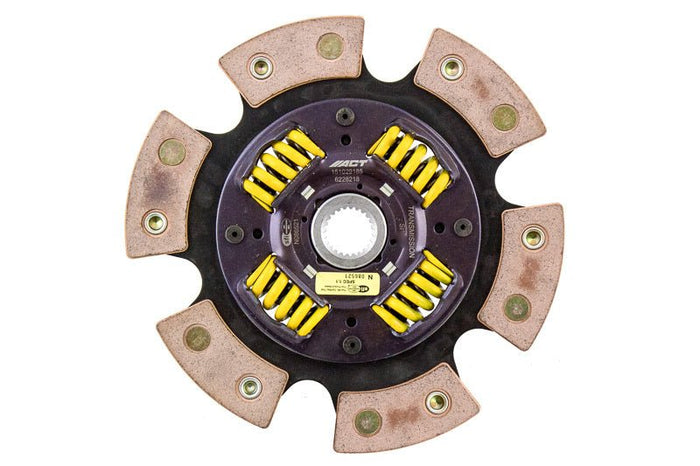

ACT 6-Pad Sprung Racing Clutch Disc (Multiple Subaru Applications)

ACT's 6-pad spring-centered race discs are made with high-quality ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy-duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat and for smoother engagement.

Features

• Aggressive engagement, quick shifts, mild to moderate gear rattle
• Premium ceramic friction materials provide moderate wear rates and high heat tolerance
• Utilizes wraparound spring windows, thicker retainer stampings, and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations, and increase strength and reliability
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for high horsepower street or race use
• High burst strength and holds 28% more torque than typical organic materials

Applications

• 2006-2014 Subaru Impreza WRX
• 2015-2021 Subaru WRX
• 2006 Saab 9-2X Aero 2.5L/2458cc H 4 Turbocharged DOHC
• 2004-2005 Subaru Forester XT(see * below)
• 2005 Subaru Forester XT Premium(see * below)
• 2006-2007 Subaru Forester XT Limited
• 2005-2006 Subaru Legacy GT(see ** below)
• 2005-2009 Subaru Legacy GT Limited(see ** below)
• 2008-2009 Subaru Legacy GT Spec B(see ** below)
• 2010-2012 Subaru Legacy 2.5GT(see ** below)
• *230mm
• *Must be used with ACT flywheel or 2003 to 2005 WRX flywheel
• **Must be used with ACT pressure plate and ACT flywheel or factory flywheel for 2006 and newer WRX (not included)

What's in the box?

• 6228218 - 6 Pad Sprung Race Disc

Specifications

• Description: 6 Pad Sprung Race Disc
• Disc Type: Race Disc
• Spline Count: 24
• Spline Size (in.): 1
• Disc Diameter (in.): 9
• Disc Diameter (mm.): 228
• Product Weight (lbs.): 3.7
