ACT 6-Pad Sprung HD Racing Clutch Kit w/Prolite Flywheel
This Performance Race Kit features ACT's most popular Heavy Duty Pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure an exclusive four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc engagement is harsher, but shifting is fast. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features
- Wheel Torque Capacity - 345 ft-lb
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for high horsepower street or race use
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 2013-2021 Subaru BRZ
- *Conversion kit - Includes ACT Prolite flywheel
- 2017-2021 Toyota 86
- *Conversion kit - Includes ACT Prolite flywheel
- 2013-2016 Scion FR-S
- *Conversion kit - Includes ACT Prolite flywheel
- *Must use ACT Flywheel (included in kit)

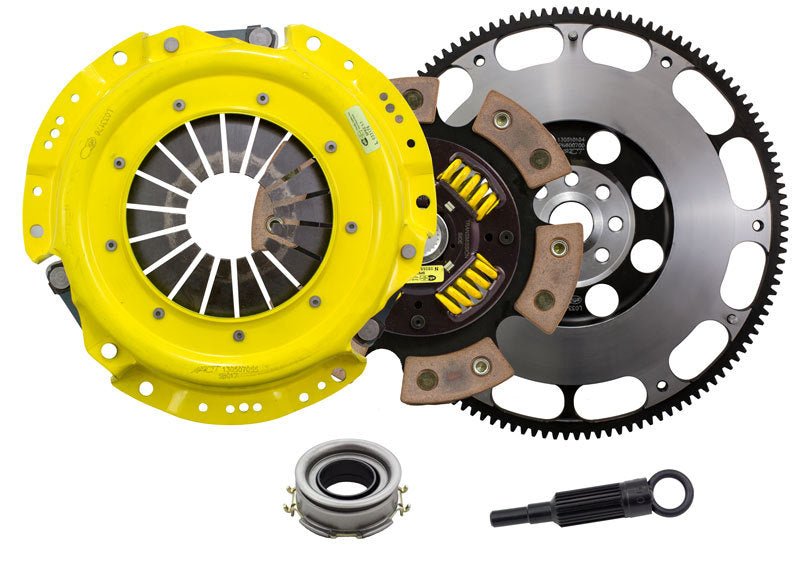

What's in the box?
- 600700 - XACT Flywheel Prolite
- 6224218-1 - 6 Pad Sprung Race Disc
- AT90 - Alignment Tool
- PB1004 - Pilot Bearing
- RB004 - Release Bearing
- SB017 - P/PL Heavy Duty
- Installation Instructions!
Specifications
- Description: HD/Race Sprung 6 Pad
- Torque Capacity (ft/lbs.): 345
- Torque Capacity Over OE: 117%
- Flywheel Tooth Count: 124
- Disc Type: Race Disc
- Spline Count: 24
- Spline Size (in.): 1
- Disc Diameter (in.): 8.8
- Disc Diameter (mm.): 224
- Pressure Plate Type: Heavy Duty
- Product Weight (lbs.): 25.3
