ACT Sprung Xtreme Clutch Kit w/Streetlite Flywheel (013-21 BRZ/FR-S/86)
SKU:ACTSB8-XTSS
Order and get 1582 reward points
Earn points by signing up for our rewards program
ACT Sprung Xtreme Clutch Kit w/Streetlite Flywheel (013-21 BRZ/FR-S/86)
ACT Sprung Xtreme Clutch Kit w/Streetlite Flywheel
SB8-XTSS kit features ACT's popular Xtreme pressure plate and most popular street disc. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Features
- Torque Capacity (ft/lbs.): 347
- Torque Capacity Over OE: 118%
- Moderate to heavy pedal effort, smooth positive engagement, OE to mild gear rattle
- Longer friction life, extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
- Recommended for street and race use
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 2013-2016 Scion FR-S
- *Conversion kit - Includes ACT Prolite flywheel.
- *Must use ACT Flywheel (included in kit)
- 2013-2021 Subaru BRZ
- *Conversion kit - Includes ACT Streetlite flywheel.

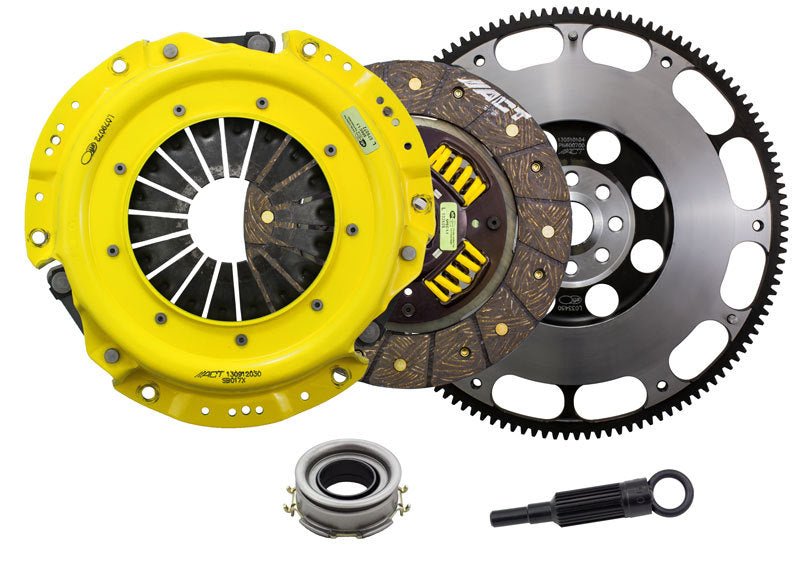

What's in the box?
- 3000504 - Perf Street Sprung Disc
- 600705 - XACT Flywheel Streetlite
- AT90 - Alignment Tool
- PB1004 - Pilot Bearing
- RB004 - Release Bearing
- SB017X - Heavy Duty Pressure Plate
- Installation Instructions!
