Mitsubishi Evo X GSR HD-M/Race Rigid 6 Pad Clutch Kit by ACT
ME3-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad rigid race discs are made with high-quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Features
-
Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts
-
Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life, rigid design may increase spline wear
-
Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
-
Recommended Use: Recommended for race use only
-
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc
Applications
- 2008 - 2015 Mitsubishi Evolution X GSR
Specifications
- Disc Type: Rigid Race Disc
- Pressure Plate Type: Heavy Duty
- Torque Capacity (Over OE): 85%
- Torque Capacity (ft/lbs.) 678
- Disc Material: Ceramic
- Pad Quantity: 6

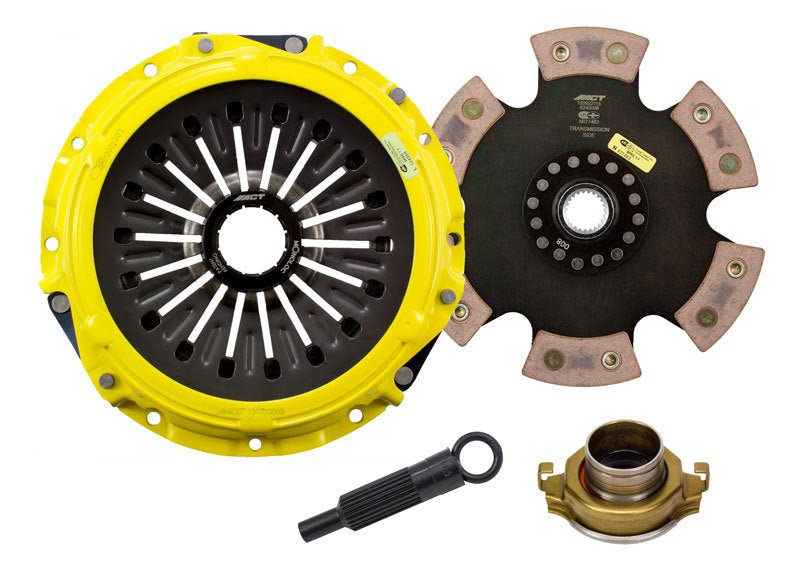

What's In The Box?
- 1 - Heavy Duty Pressure Plate
- 1 - Ceramic 6 Pad Rigid Race Disc
- 1 - Alignment Tool
- 1 - Release Bearing
- 1 - Monoloc Collar
References
Warranty
- ACT 1-Year Limited Warranty
