ACT HD-M/Race Sprung 4 Pad Clutch Kit (Evo X)

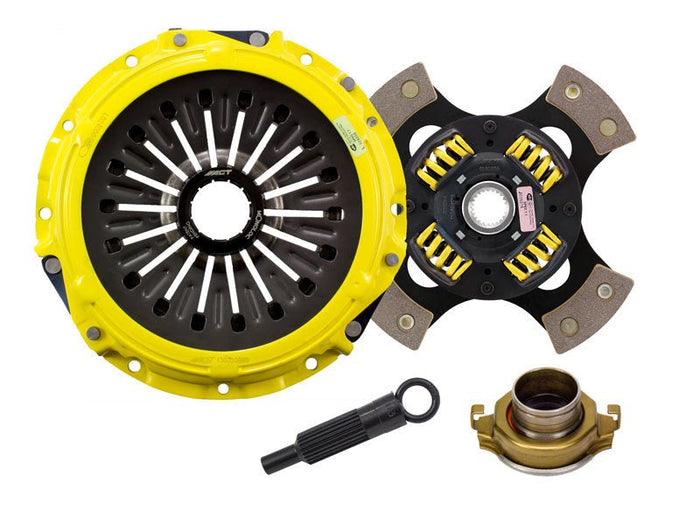

ACT HD-M/Race Sprung 4 Pad Clutch Kit

ME3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

Features:

4 Puck Sprung Disc (G4)

• Recommended for Road Racing
• Increased torque capacity and spline life
• Good durability and spline life
• Quiet operation
• Reduced driveline shock
• Very harsh engagement & chatter

HD Pressure Plate:

• Clamps load increase of 20% to 50%
• Pedal feels stock to moderate
• Many are SFI Certified to insure safety
• Torque Capacity: 650 ft/lb

This Part Fits:
