2006-2021 Subaru WRX ACT HD/Race Sprung 6 Pad Clutch Kit
ACT's SB5-HDG6 kit features their most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad, spring-centered race disc features a spring center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features
- Torque Capacity: 535 ft/lb
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for high horsepower street or race use
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 2006-2021 Subaru WRX
- 2006 Saab 9-2X Aero 2.5L/2458cc H 4 Turbocharged
- 2006 Subaru Baja Turbo 2.5L
- 2006-2007 Subaru Forester XT Limited
- 2008 Subaru Forester 2.5 XT
- 2006 Subaru Legacy GT spec.B (see * below)
- 2005-2006 Subaru Legacy GT(see * below)
- 2005, 2007-2009 Subaru Legacy GT Limited(see * below)
- 2010 Subaru Legacy 2.5GT(see * below)
- *230mm
- *5 Speed applications only
- *Must be used with ACT flywheel or factory flywheel for 2006 and newer WRX (not included)

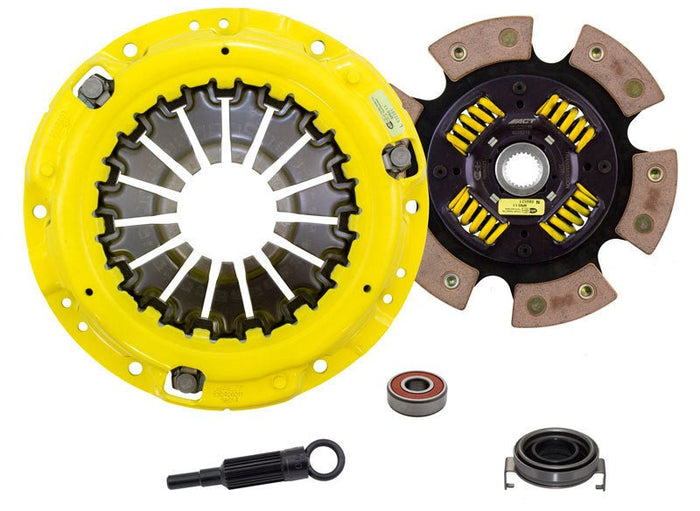

What's in the box?
- 6228218 - 6 Pad Sprung Race Disc
- AT90 - Alignment Tool
- PB1004 - Pilot Bearing
- RB844 - Release Bearing
- SB014 - P/PL Heavy Duty Pressure Plate
- Installation Instructions!
Specifications
- Description: HD-M/Race Sprung 6 Pad
- Torque Capacity (ft/lbs.): 535
- Torque Capacity Over OE: 69%
- Disc Type: Race Disc
- Spline Count: 24
- Spline Size (in.): 1
- Disc Diameter (in.): 9
- Disc Diameter (mm.): 228
- Pressure Plate Type: Heavy Duty
- Product Weight (lbs.): 14.9
