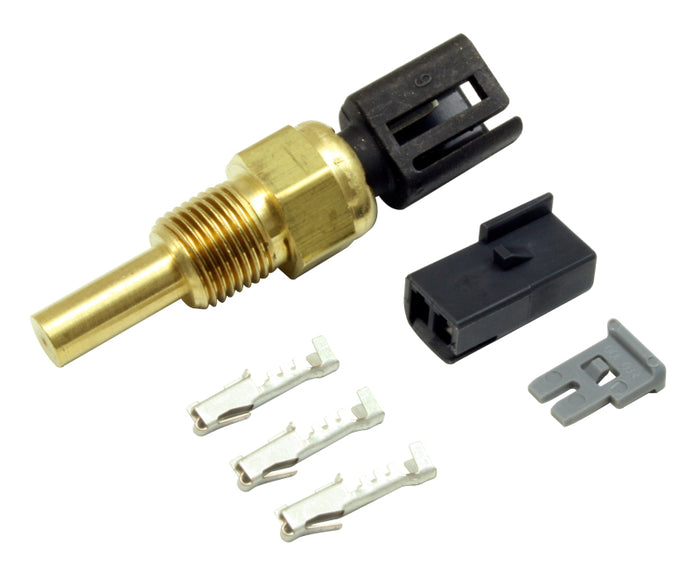

AEM 1/8" NPT Water/Oil Temperature Sensor Kit
Temperature Sensor with 1/8" NPT Male Thread, Plug, Pins & Pin Lock
Features
- Accuracy: < 2°C / 3.6°
- Operating Temp: -40C to 200C / -40F to 392F
- Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
- Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
- Sensor Body Material: Brass
- Thread: 1/8"-27 PTF
- Hex Size: 1/2"
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 12.2g
- Elec. Termination: Connector. Includes mating connector, pins & pin loc
Applications
- Universal
What's In The Box?
- (1) Water/Oil Temperature Sensor
- Connector, Pins & Pin Lock
References
Warranty
- Manufacturer Standard Warranty
