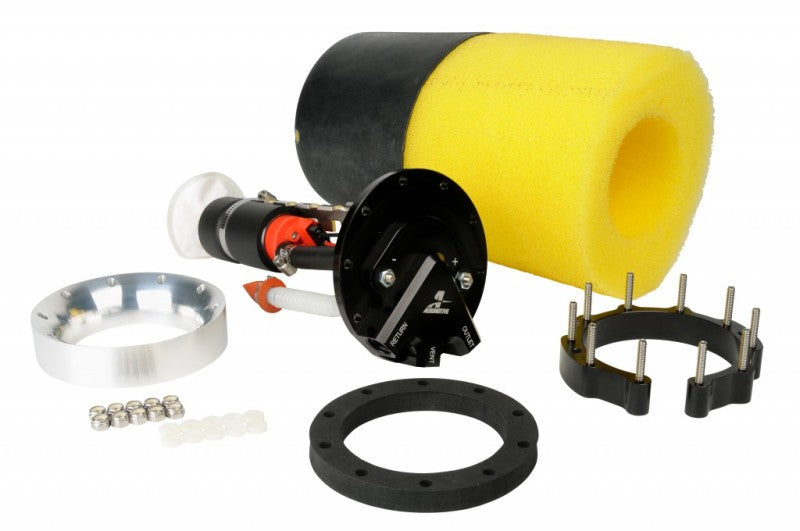

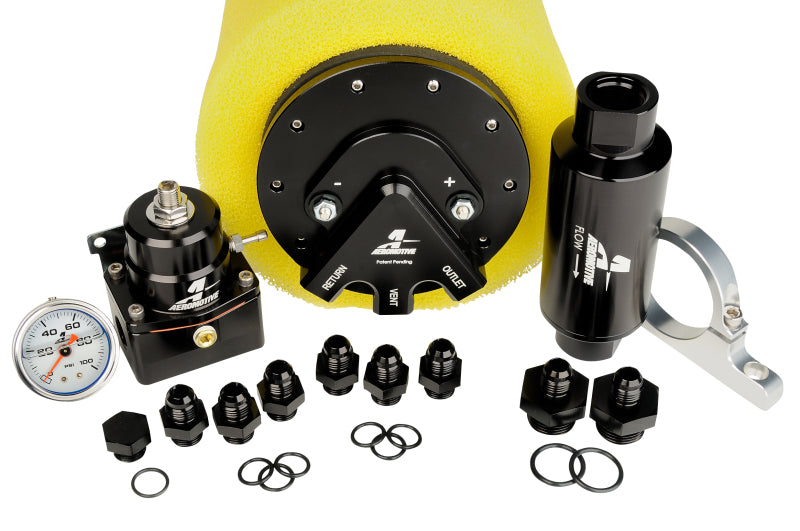

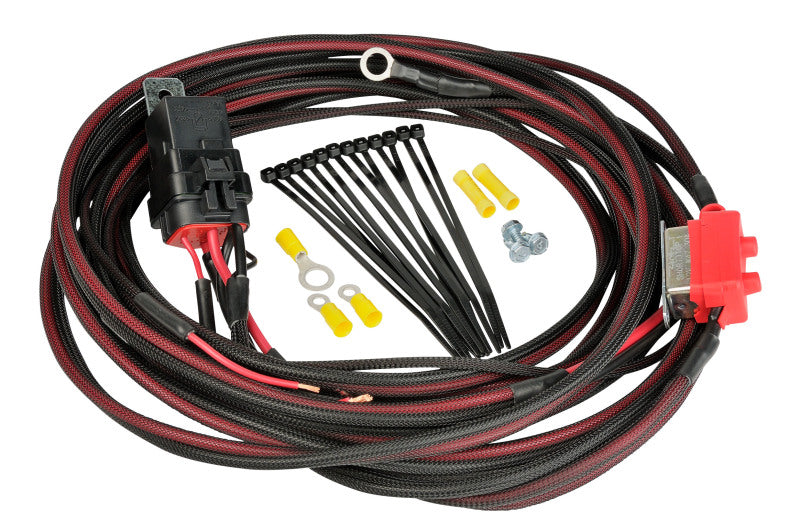

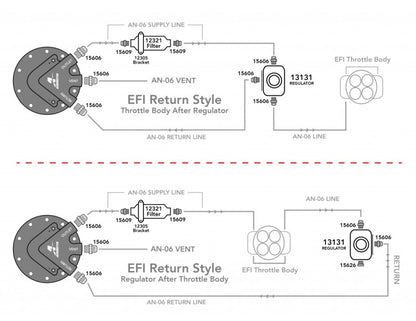

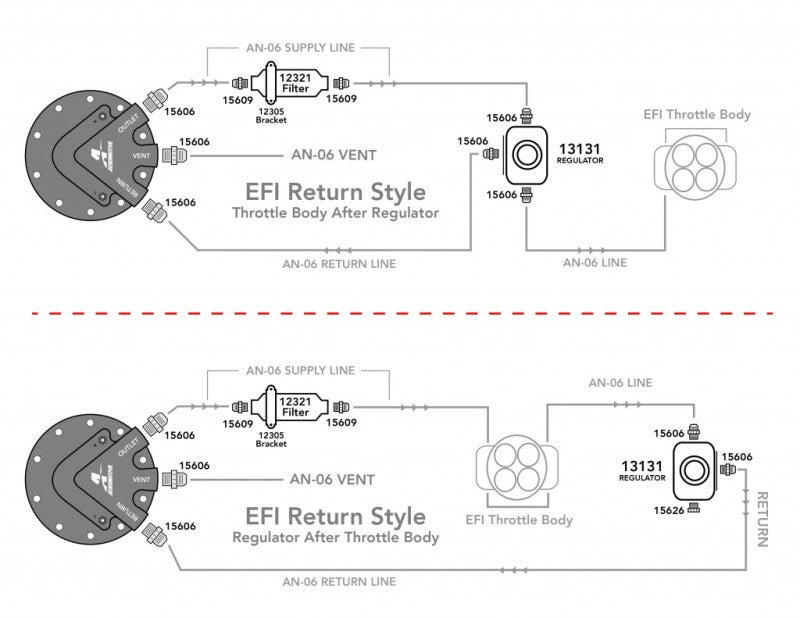

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with today?s Hot New Carb to EFI Throttle Body Conversion Systems, including the desired Phantom Baffled Fuel Pump Kit a 340 LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for popular throttle body EFI conversions systems that make the move to EFI so easy.? Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.? AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18688 Phantom 340, 1ea p/n 12321 Filter 10 micron Paper, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare, 1 ea p/n 15626 AN-06 Port Plug, 1ea p/n 15633 0-100 psi Gauge.
Installation Instructions
Installation Instructions

Aeromotive Product Warranty, Policy and Procedure: Retail

All Aeromotive products sold are warranted free from defects in materials and workmanship for a period of one year from the original date of purchase. No warranty claim will be valid without authentic, dated proof of purchase. Only sales from authorized dealers qualify for warranty claims.

This warranty is to the original retail purchaser and none other and is available directly from Aeromotive and not through any point of distribution or purchase.

If a defect is suspected, the retail purchaser must contact Aeromotive directly to discuss the problem, possible solutions and obtain a Return Goods Authorization (RGA), if deemed necessary by the company. All returns must be shipped freight pre-paid to the company and with valid RGA before they will be processed.

Aeromotive will examine any product returned with proper authorization to determine if the failure resulted from a defect or from abuse, improper installation, misapplication or alteration. Aeromotive will then, at its sole discretion return, repair or replace the product.

Limitation of Remedies

If any Aeromotive product is determined defective, buyer’s exclusive remedy is limited in value to the sale price of the good. In no event shall Aeromotive be liable for incidental or consequential damages. Aeromotive fuel system components are not legal for sale or use on emission controlled motor vehicles.

The telephone number to contact Aeromotive Returns and Repairs for help with a warranty claim is 913-808-2376, then dial option 3. Be certain to have the part in question, along with proof of purchase and a pen and paper when you call.

Aeromotive Product Warranty, Policy and Procedure: Distributor

Any product returned for warranty by a distributor, retailer or party that is NOT the actual retail purchaser, requires proper RGA and authentic proof of customer purchase. Authorized returns that do qualify as “in warranty and defective” will NOT be processed for credit, but handled as any other warranty return, where the product will be repaired if possible or replaced with rebuilt or new merchandise of equal performance and value. Returned product NOT “defective” or NOT “in warranty” will be destroyed or returned as-is, by distributor request.

New product returns for stock adjustment are allowed annually. All returned merchandise requires advance approval from Aeromotive along with the assigned RGA number. All returns for stock adjustment must be in perfect condition and if above 5% of annual sales orders, are subject to a 15% restocking fee. All returns will be for account credit only. Aeromotive does not make cash refunds.
