Eibach Anti-Roll Bar Front & Rear Kit (15-21 Subaru WRX STI)
Eibach has just released their Anti-Roll-Kit Performance Sway bars for the 2015+ Subaru WRX STI. While Eibach's Pro-Kit performance springs are regarded as the primary suspension enhancement components, the Eibach Anti-Roll-Kit allows critical fine-tuning of your Subaru's handling characteristics.
Features
- Performance Tuned Sway Bars for Improved Handling and Reduced Body-Roll
- Precision Hi-Tensile Steel Alloy, Cold-Formed, Tempered and Shot-Peened for Long-Lasting Performance and Durability
- Precision Forged Ends and OEM Style Pressed Bushing Locaters (No Welding Or Weak Points Here)
- Million-Mile Warranty
Front Bar Specs
- OE bar: 24 mm (0.9 in) Solid
- OE measured bar rate: 66 N/mm (378 lbs/in)
- OE bar weight: 4.3 kg (9.5 lbs)
- Eibach bar: 25 mm (1.0 in) Tubular
- Eibach measured bar rate: P1 =87 N/mm (497 lbs/in) ,P2 =100 N/mm (572 lbs/in)
- Eibach bar weight: 3 kg (6.5 lbs)

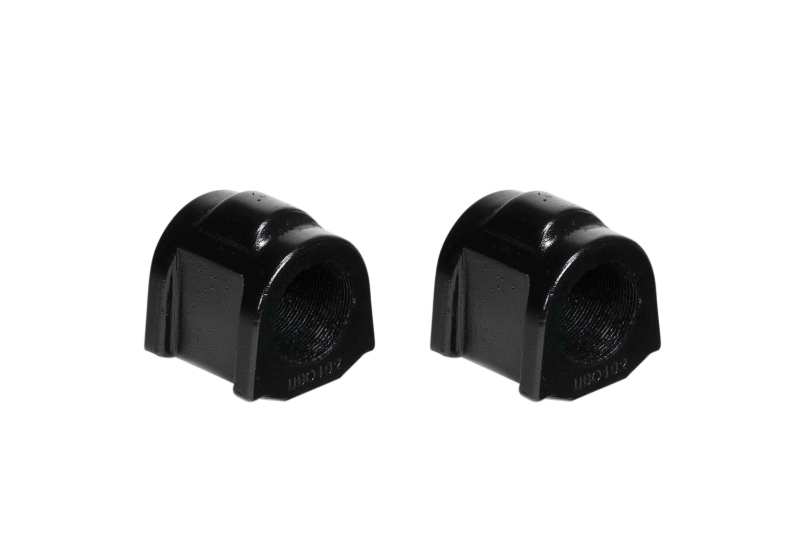

- Bushings: New Eibach bushing
- End Link: OE
- Approximate installation time: 1.5 hrs
Rear Bar Specs
- OE bar: 20 mm (0.8 in) Solid
- OE measured bar rate: 50 N/mm (287 lbs/in)
- OE bar weight: 3.2 kg (7 lbs)
- Eibach bar: 22 mm (0.9 in) Tubular
- Eibach measured bar rate: P1 =58 N/mm (332 lbs/in), P2 =76 N/mm (432 lbs/in)
- Eibach bar weight: 2.7 kg (6 lbs)

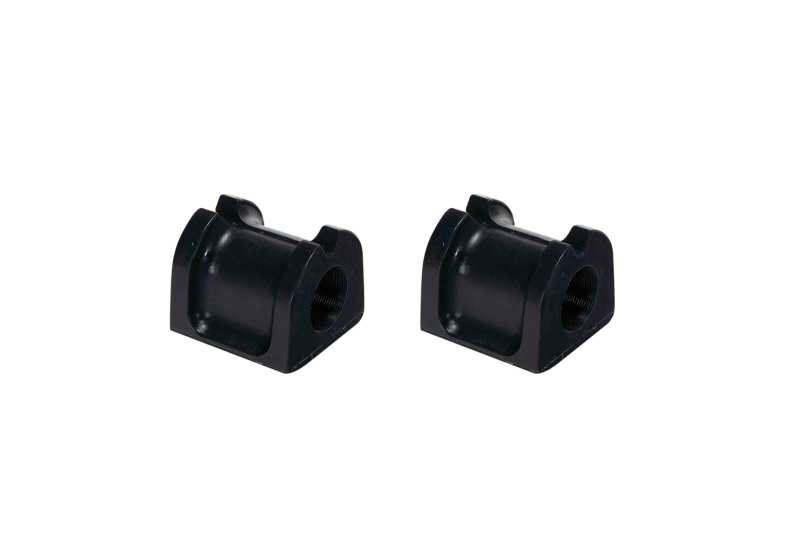

- Bushings: New Eibach bushing
- End Link: OE
- Approximate installation time: 1.0 hr
Applications
- 2015-2021 Subaru STI

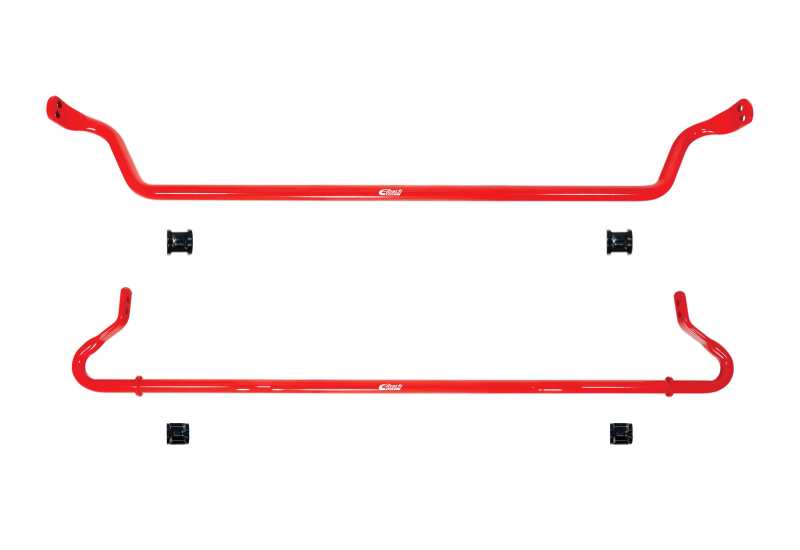

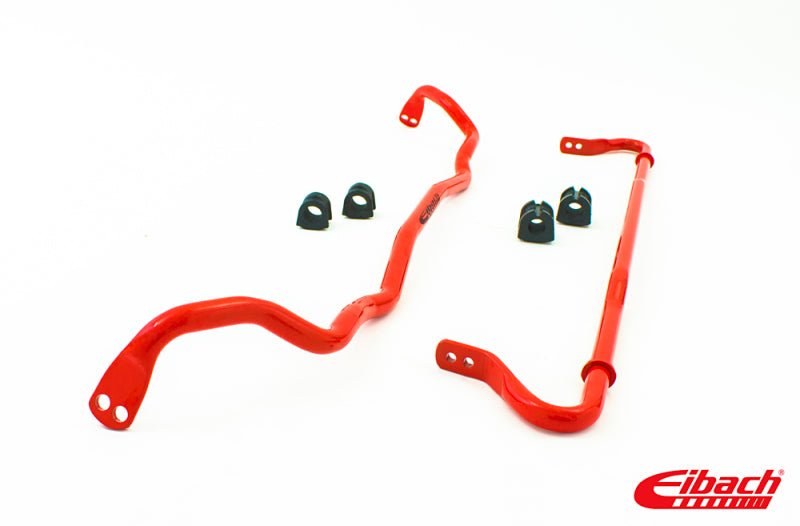

What's In The Box?
- Front Roll Bar
- Rear Roll Bar
- Bushings
References
Warranty
- Million Mile Warranty
