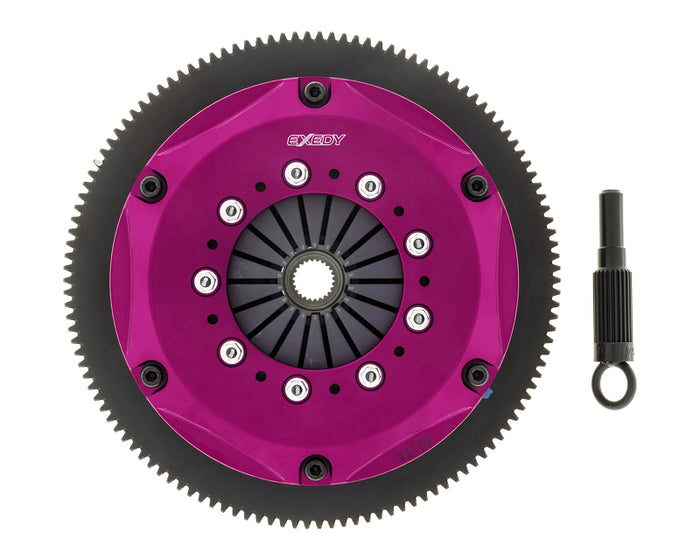

Exedy Hyper Triple Cerametallic Clutch (Nissan 300ZX)
For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use.
All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it's additional power capability, most multi-plate clutches exhibit light pedal pressure thanks to a half-engaged "zone" provided by the patented clutch "cushion" function.
Features
- Triple friction plates for up to 800 lbs.-ft.
- All multi-plate clutch kits come with lightweight chromoly flywheel
- Purple anodized forged aluminum cover
- Strap or lug drive, depending on application
- Spring damper discs or solid discs
- Cerametallic or carbon friction material
- Clamp Load : 2205
- Disc Diameter (Inches) : 7.9
- Disc Diameter (Millimeters) : 200
- Kit Contents : CM01S, PP01, IM02, DL03R, DL03R, DL03R, CH12, FR01, FM05, BS05, BS01
- Spline Count : 24
- Spline Size (Inches) : 1
- Spline Size (Millimeters) : 25.6
- Torque Capacity (ft/lbs.) : 767
Benefits
- Quicker shifts and faster lap times
- Higher torque transmitting capacity
- High burst strength can be achieved in all temperature ranges.
Please Note: All referenced torque ratings are measured at the wheels.
Applications
What's In The Box?
- 1 - Hyper Triple Cerametallic Clutch
Warranty
- Exedy 60-Day Limited Warranty
