Haltech Elite 1500 With Plug'n'Play Adapter Harness Kit (Honda S2000)

Featuring a robust, environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 1500 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

Features

• Drive by Wire Throttle Control (DBW)
• Low Impedance Injector control with programmable injector peak and hold currents and programmable peak time
• Flex fuel support (Direct sensor input). Tune your engine's boost, fuel and ignition by ethanol content
• Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type
• Closed Loop O2 Control - Dual bank control for precise tuning (With optional external CAN O2 Wideband Controller Kit)
• Knock Control - Synchronised to engine position with high speed digital filtering for accurate detection
• Variable cam control - Independently control up to 2 intake camshafts - Requires a minimum of 1 user defined input & output per variable cam
• Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user defined outputs (BAC type) or 4 user defined outputs (Stepper motor type)
• Long term learning (Auto tune) on fuel, cam, boost & idle control maps (up to 4D)
• Waterproof Case (With Pocket Cover Fitted)
• USB Laptop communication (Windows)

Benefits

• Rolling Anti-Lag - lock to your current (or pre-set) RPM or road speed for roll racing or pit lane limiting
• Launch Control - Control your engines power delivery, RPM & boost for consistent performance at the start line

Please Note: Product does not support the following OEM Functionaliy: Immobiliser Fuel Tank Pressure Sensor K-Line Communication Start Switch Signal Air Pump Electric Current Sensor

Applications

• 2000-2009 Honda S2000

What's In The Box?

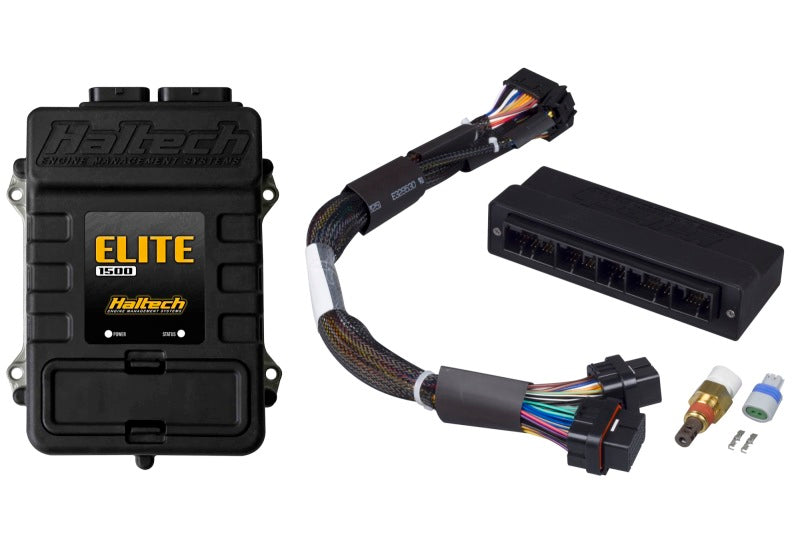

• 1 - Elite 1500 ECU, Plug'n'Play adaptor harness
• 1 - M14 x 1.5 air temp sensor with matching plug and pins
• 1 - Auxiliary I/O 16 Pin TYCO plug and pins
• 1 - USB programming cable and USB software key

Warranty

• Haltech Limited Warranty
