JDC Titanium Extended Wheel Studs

JDC titanium wheel studs are a great addition for the true titanium addict! Each stud is CNC machined from a solid piece of super-strong Ti6Al-4V (Grade 5) and weighs only 39 grams! Extended studs are a must-have for anyone running thick spacers and the JDC titanium studs will save you 600 grams (~1.5lbs) over other steel studs on the market.

Open-ended lug nuts may be needed if your current lug nuts aren't deep enough to accept the extended studs. You can combine these extended studs with the JDC titanium lug nuts for the perfect combination!

Dimensions:

  • Thread Size: 12mm x 1.25 RH
  • Knurl Diameter (in.): 0.0565"
  • Underhead Length (in.): 3.0"
  • Knurl Lenth (in.): 0.270"
  • Quick-Start Nose: Yes

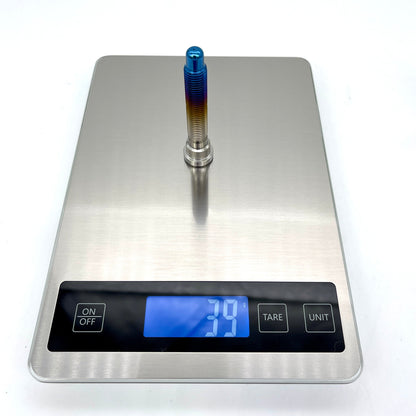

  • Weight 39g each

Sold as a set of 20, a set of 5, or individually as needed.

If you are replacing all the studs, you will need to purchase 20 pieces.

  • To install the wheel studs, we recommend pressing or hammering them from the rear side of the hub. Our unique knurling design ensures a secure fit, preventing the stud from spinning during lug nut installation. Relying on a lug nut or puller tool for this task may not yield optimal results.
  • Before commencing the installation process, it's essential to thoroughly clean the splines within the wheel hub. Failing to do so could make the installation of the new titanium wheel studs more challenging, potentially resulting in incomplete insertion or even breakage due to excessive force.
  • • • Note: We strive to provide high-quality products and reliable guidance for our customers. However, please note that we cannot be held liable for any broken studs if the correct installation methods, as described above, are not followed. It is the responsibility of the installer to ensure proper installation techniques are employed to avoid any potential issues. We encourage our customers to consult a professional mechanic if they are unsure about any aspect of the installation process.

Installation Video by Devin Niemela

  • Subaru WRX & STi models
  • Nissan R35 GT-R
  • Nissan 350z/370z
  • Infiniti G35/G37
  • 2013+ FR-S / BRZ





Orders Containing Titanium

Colored Titanium:

  • All titanium is colored to order unless otherwise stated on the item listing. Please see the banner at the top of the website for the current estimated lead times. Production time can vary depending on your order size, products ordered, and the difficulty of custom options requested.

Bare Titanium/Stainless Steel:

  • In-stock items have a processing time of 3-5 business days.

For orders without titanium, our average processing time is 2-4 business days.

CNC machined from a single piece of Ti6Al-4V (Grade 5) titanium.

Each piece is hand-polished before receiving our proprietary cold anodizing treatment for colors that will last a lifetime!

For a color chart and information on our titanium products please click here.

GR5 Titanium (Grade 5 Titanium) is a premium alloy composed primarily of titanium, with small amounts of aluminum (6%) and vanadium (4%) for added strength and versatility. Renowned for its exceptional strength-to-weight ratio, GR5 Titanium offers superior corrosion resistance, excellent heat tolerance, and remarkable durability. This makes it an ideal material for aerospace, automotive, medical, and high-performance applications, where lightweight strength and longevity are critical. Its ability to be anodized into vibrant colors further enhances its appeal for customization in industries like motorsports and jewelry.
