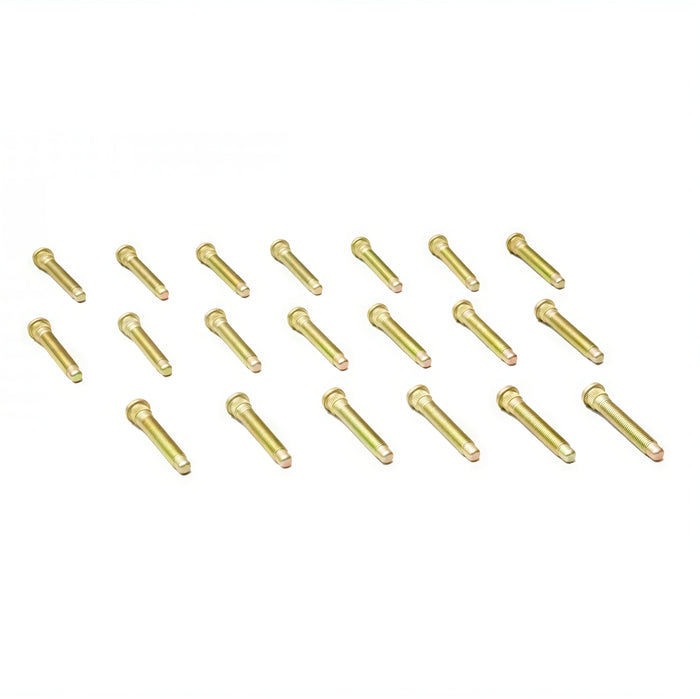

Megan Racing Extended Wheel Studs (EVO 8/9)
Megan Racing extended wheel studs are made with heat-treated high-strength Chromoly steel. Lost threading on stock studs can be a major safety issue, these extended studs are an essential upgrade for added spacers or aftermarket thick-center wheels. These studs are intended to be used with open-ended lug nuts.
Applications:
- 90-99 1G & 2G DSM
- 01-06 Evolution VII-IX
- 07-15 Evolution X
- 91-99 3000GT & Stealth
What's in the box:
Specifications:
- Thread Size: 12mm x 1.5RH
- Knurl Size: 14.50mm
- Thread Length: 52mm
- Overall dimension of stud (see diagram)
- D1: 18.75mm
- D2: 12.10mm
- D3: 12mm
- L1: 5.50mm
- L2: 8.50mm
- L3: 5.50mm
- L4: 62mm
*Note: Recommended to be used with wheel spacers up to 20mm, 5-6 full turns of lug nut to secure with the use of torque wrench.
