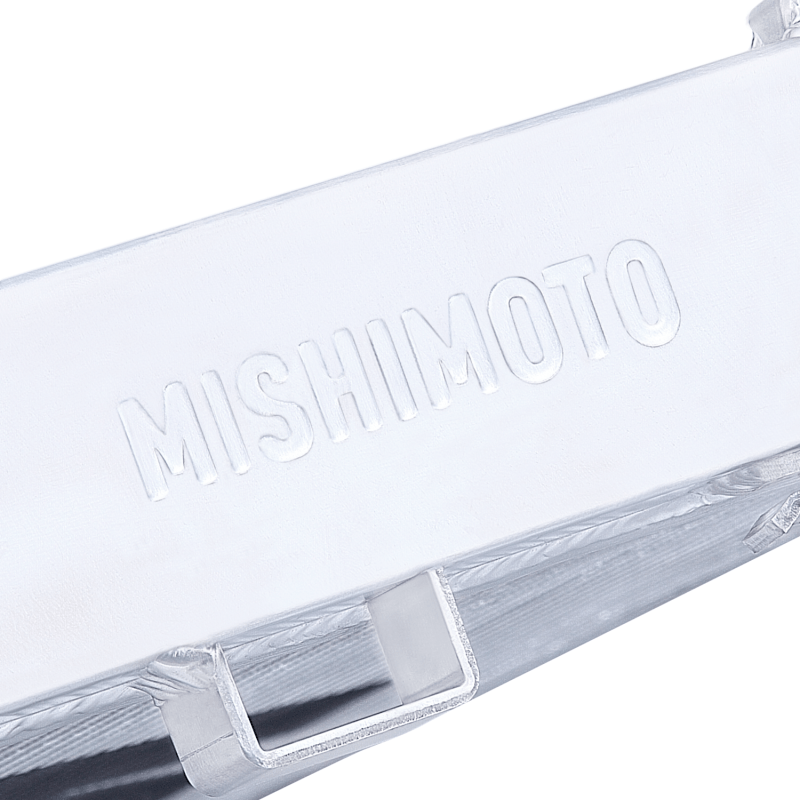

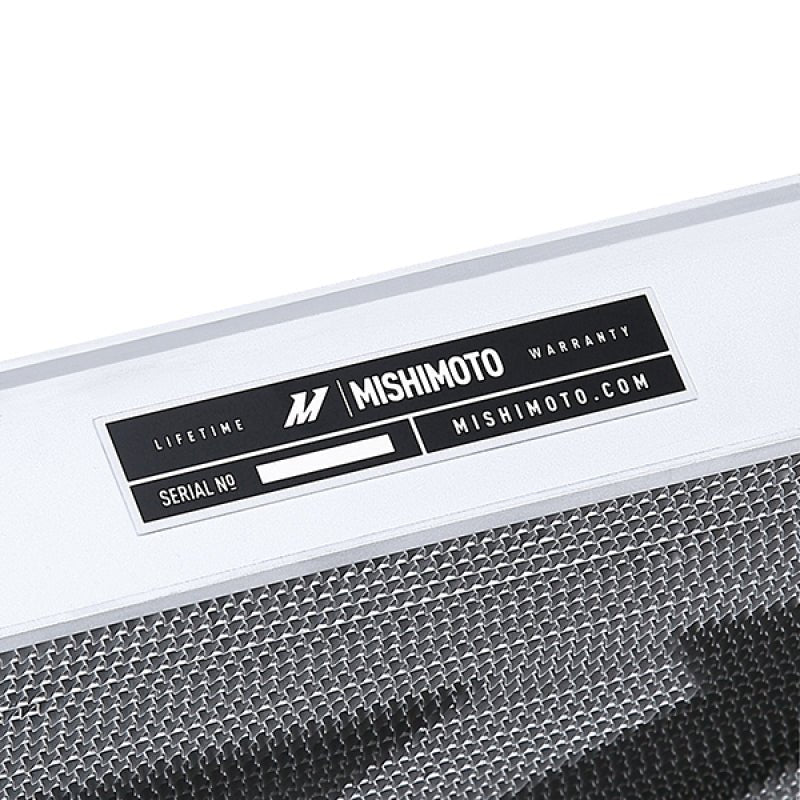

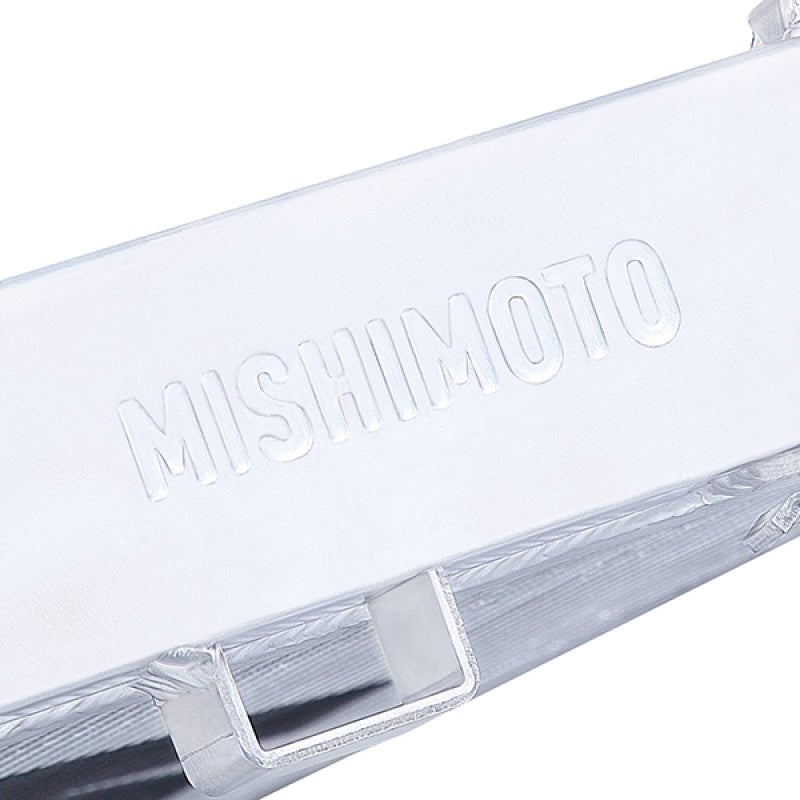

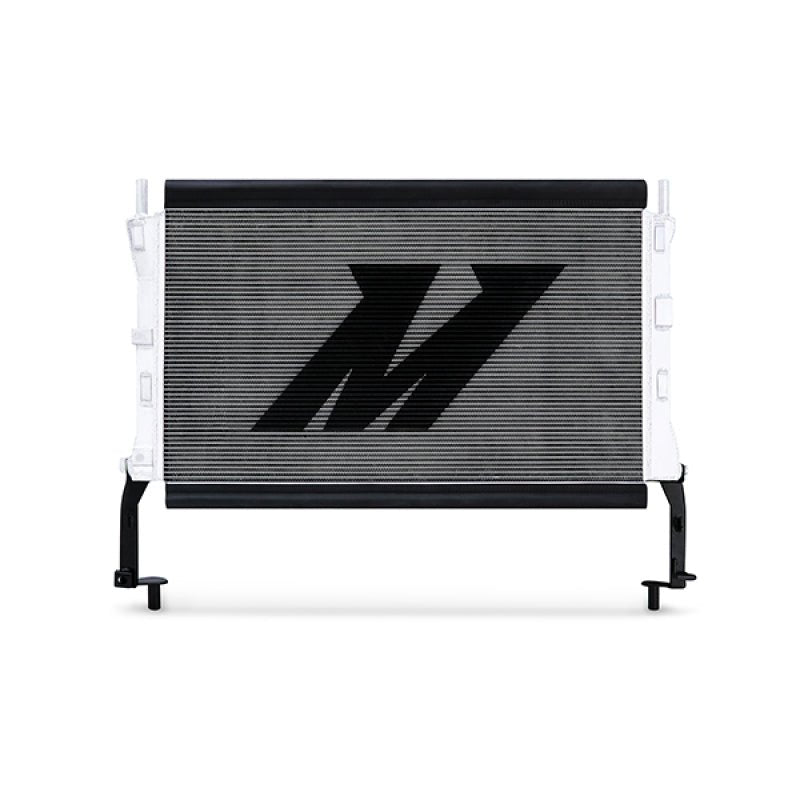

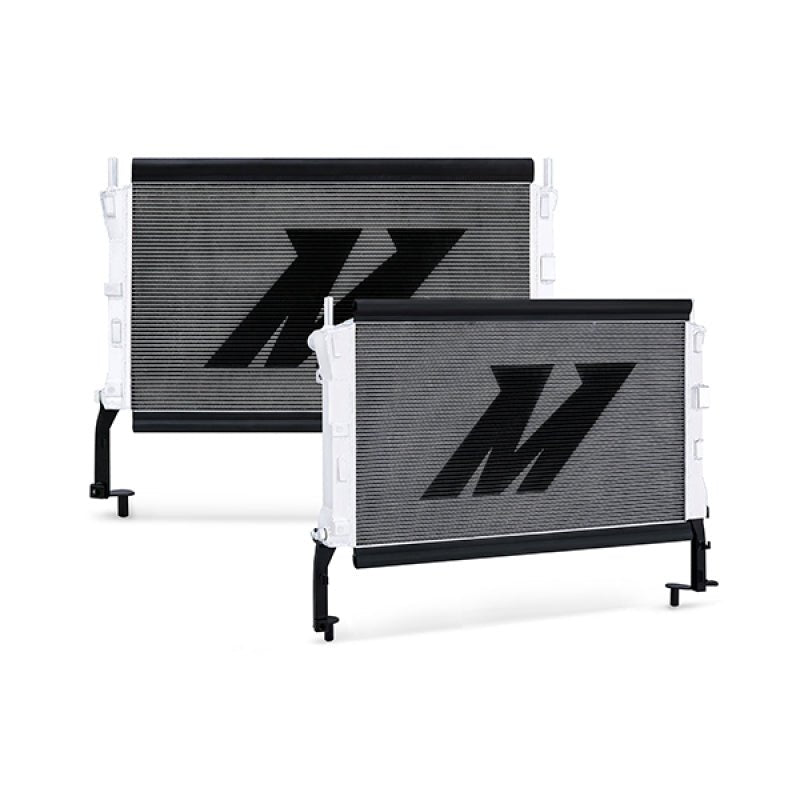

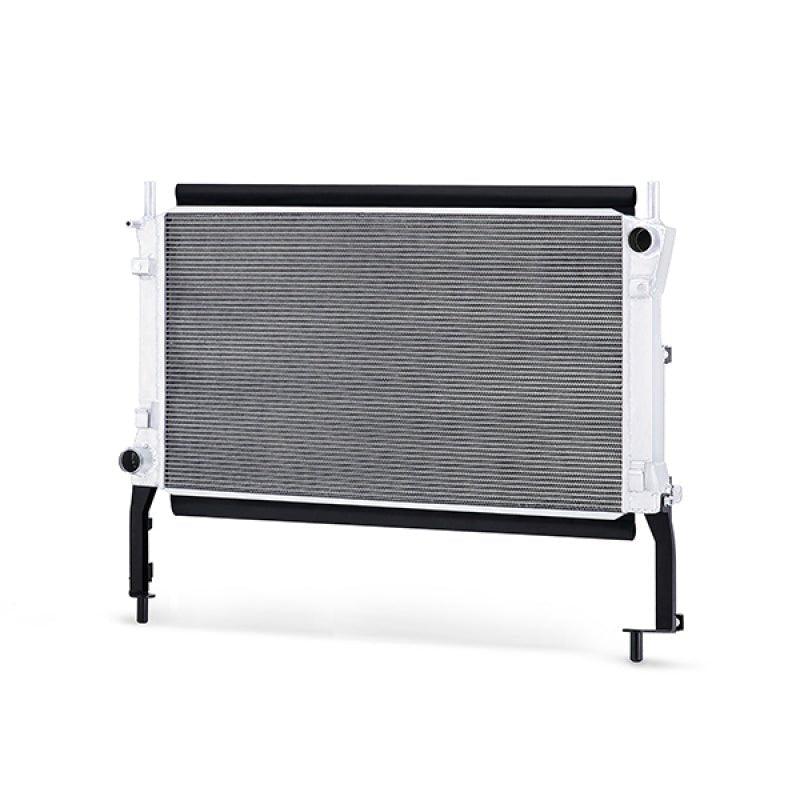

Mishimoto EcoBoost Performance Aluminum Radiator (15+ Ford Mustang)
The Mishimoto Ford Mustang EcoBoost Performance Aluminum Radiator is designed and engineered to reduce coolant temperatures substantially, and to protect your 2015 Mustang from overheating during aggressive driving or hot lapping sessions. It is the ideal upgrade to the stock 2015 EcoBoost Mustang radiator, and will outperform even the upgraded Ford performance package radiator. The Mishimoto Mustang EcoBoost radiator features a large three-row core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. The engineers at Mishimoto designed this EcoBoost radiator with a 72.5% increase in coolant capacity over the base-model radiator, and 53.3% increase in coolant capacity over the larger performance package radiator. This 2015 Mustang radiator also has a 22% increase in coolant surface area, and 50% increase in air surface area over the larger performance package radiator, making it an ideal upgrade to keep your EcoBoost running cool! This innovative 2015 Mustang radiator design features steel lower mounting brackets that are fully functional with the stock intercooler or the Mishimoto EcoBoost Performance Intercooler. To maximize the efficiency and prevent any ambient air from bypassing the core, the radiator also comes with upper and lower rubber trim seal to fully close any large air gaps between the radiator and intercooler, as well as the upper air diversion panel. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless, with no cutting or modification required. Like all of our EcoBoost Mustang parts, this radiator comes with the Mishimoto Lifetime Warranty.
Features
- Direct fit for 2015+ Ford Mustang EcoBoost, standard, and performance package models

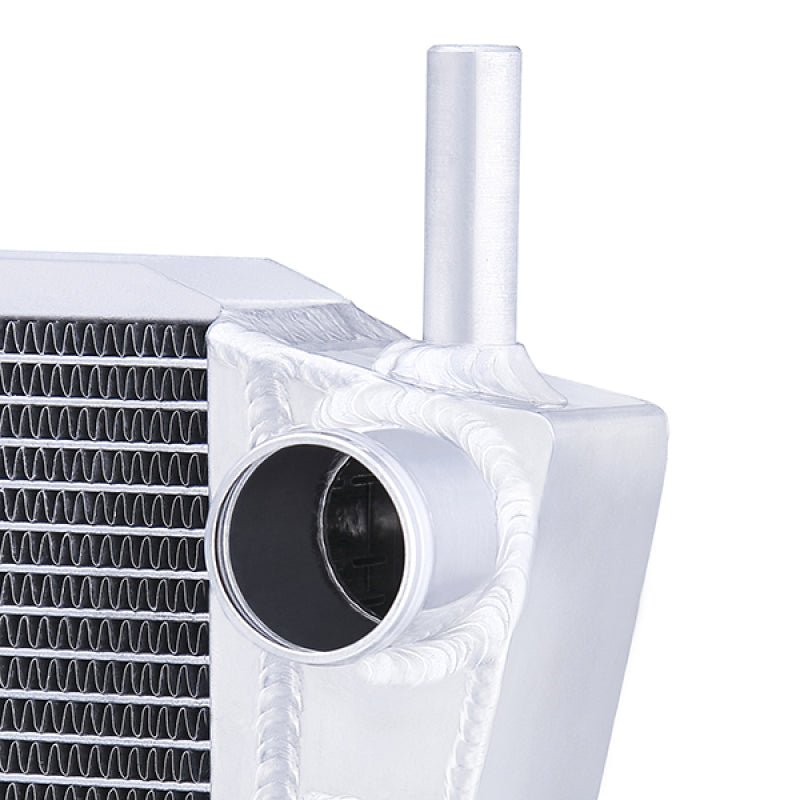

- Brazed aluminum core with TIG-welded end tanks
- Includes Magnetic Drain Plug
- Mishimoto Lifetime Warranty
- 72.5% increase in coolant capacity over the base model radiator
- 53% increase in coolant capacity over the performance package radiator
- 22% increase in coolant surface area (tubes) over the stock performance package radiator
- 50% increase in air surface area (fins) over the stock performance package radiator
- Fits manual and automatic vehicles
- Fits with stock or Mishimoto Mustang EcoBoost Intercooler
- Includes rubber trim seal to close off any unwanted air gaps between the radiator and chassis of the vehicle
- 2" thick 3-row core
Specifications
- Material: Aluminum
- Chassis Codes: S-550
- Overall Height: 29.75"
- Drain Plug Thread Size: M12 x 1.5
- Overall Length: 15.25"
- Tank Wall Thickness: 0.08"
- Outlet: 1.34"
- Rows: 3
- Inlet: 1.34"
- Coolant Capacity: 2.67
- Dual Pass: No
- Overall Width: 4.75"
- Core Length: 25.35"
- Core Height: 14.7"
- Core Size: 25.35" x 14.7" x 2.05"
- Core Thickness: 2.05"
Applications
- 2015-2017 Ford Mustang EcoBoost
What's In The Box?
