Radium Engineering Engines PCV Baffle Plate (07-13 Mazda 3/15-19 Mustang Ecoboost)

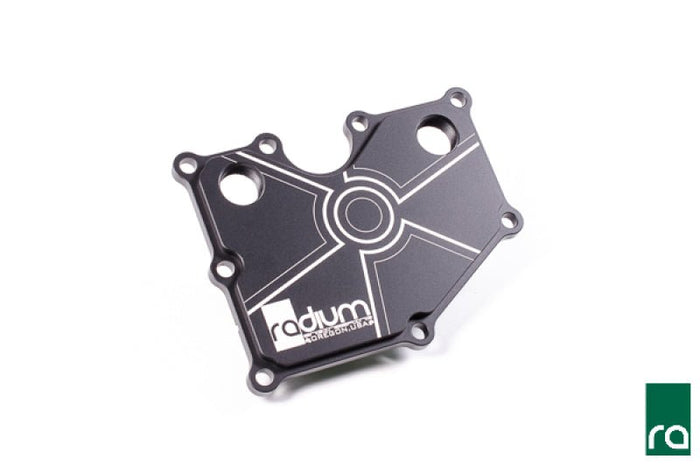

The Radium Engineering PCV Baffle Plate mounts to the engine block and replaces the factory plastic PCV plate and valve. Compared to the OEM unit, the CNC machined aluminum Radium Engineering PCV plate features an extra baffle to prevent oil sludge from entering the intake system without restricting air flow. Furthermore, there are two 10AN ORB ports machined above both aluminum baffles.
The bare-bones kit includes ONLY the Radium PCV plate and associated baffles. The twin 10AN ORB ports allow connection of breathers, catch cans, oil return lines, etc. for custom installations.
The OEM configuration kit includes all parts necessary for a plug and play installation and can be used with the OEM PCV tubing or with Radium catch cans. Because the OEM Ford PCV valve leaks at all boost levels, this kit includes Radium's own 10AN ORB PCV Valve which prevents boost from leaking into the crankcase. No permanent vehicle modifications are required.
Features
- CNC Machined Aluminum
- Protects Intake from Oil Sludge
- Prevent Boost Leak
- Aluminum Baffles
- Two 10AN ORB Ports to Connect Breathers, Catch Cans, Oil Return Lines, etc.
- An Aluminum 10AN ORB PCV Valve is Included to Replace the OEM Valve (PnP OEM Kit Only)
- An Aluminum 10AN ORB Plug is Included (PnP OEM Kit Only)
- Stainless Steel Hose Clamp (PnP OEM Kit Only)
Applications
- 2013 - 2018 Ford Focus ST EcoBoost
- 2016 - 2018 Ford Focus RS EcoBoost
- 2015 - 2019 Ford Mustang EcoBoost
- 2019 - 2019 Ford Ranger EcoBoost
- 2010 - 2018 Ford Fusion Duratec
- 2007 - 2013 Mazda Mazdaspeed3 MZR
- 2006 - 2007 Mazda Mazdaspeed6 MZR
- 2005 - 2015 Mazda MX-5 MZR (Not Compatible with 20-0327-01 due to PCV valve clearance issues)
- 2015 - 2016 Zenos E10
What's In The Box?
- 1 - Radium PCV Plate w/ Baffles
- 1 - 10AN ORB PCV Valve (PnP OEM Kit Only)
- 1 - 10AN ORB Plug (PnP OEM Kit Only)
- 1 - Hose Clamp (PnP OEM Kit Only)
- All Necessary Hardware
- Instructions/Manual
- Warranty Information
Warranty
- Manufacturer Standard Warranty
