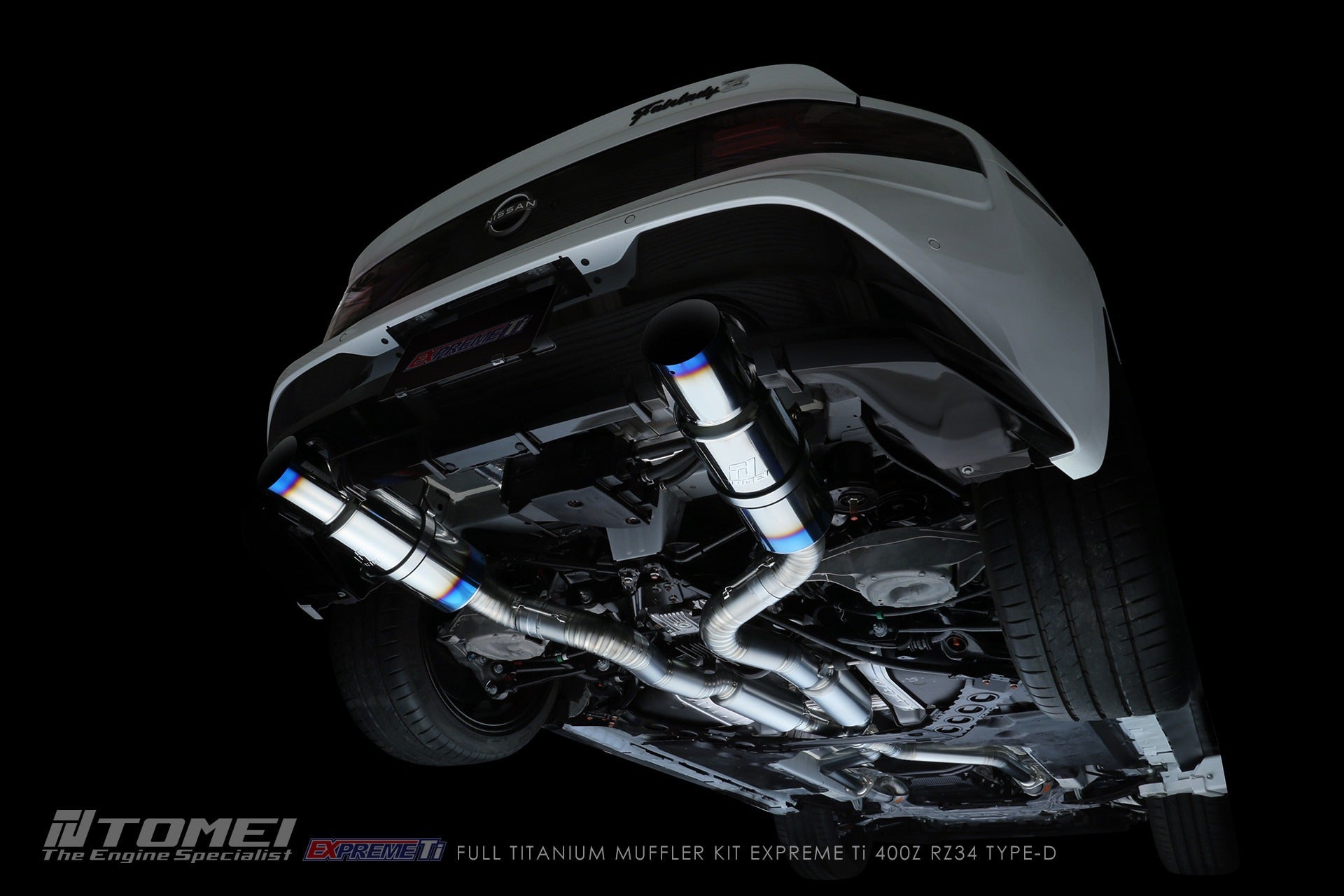

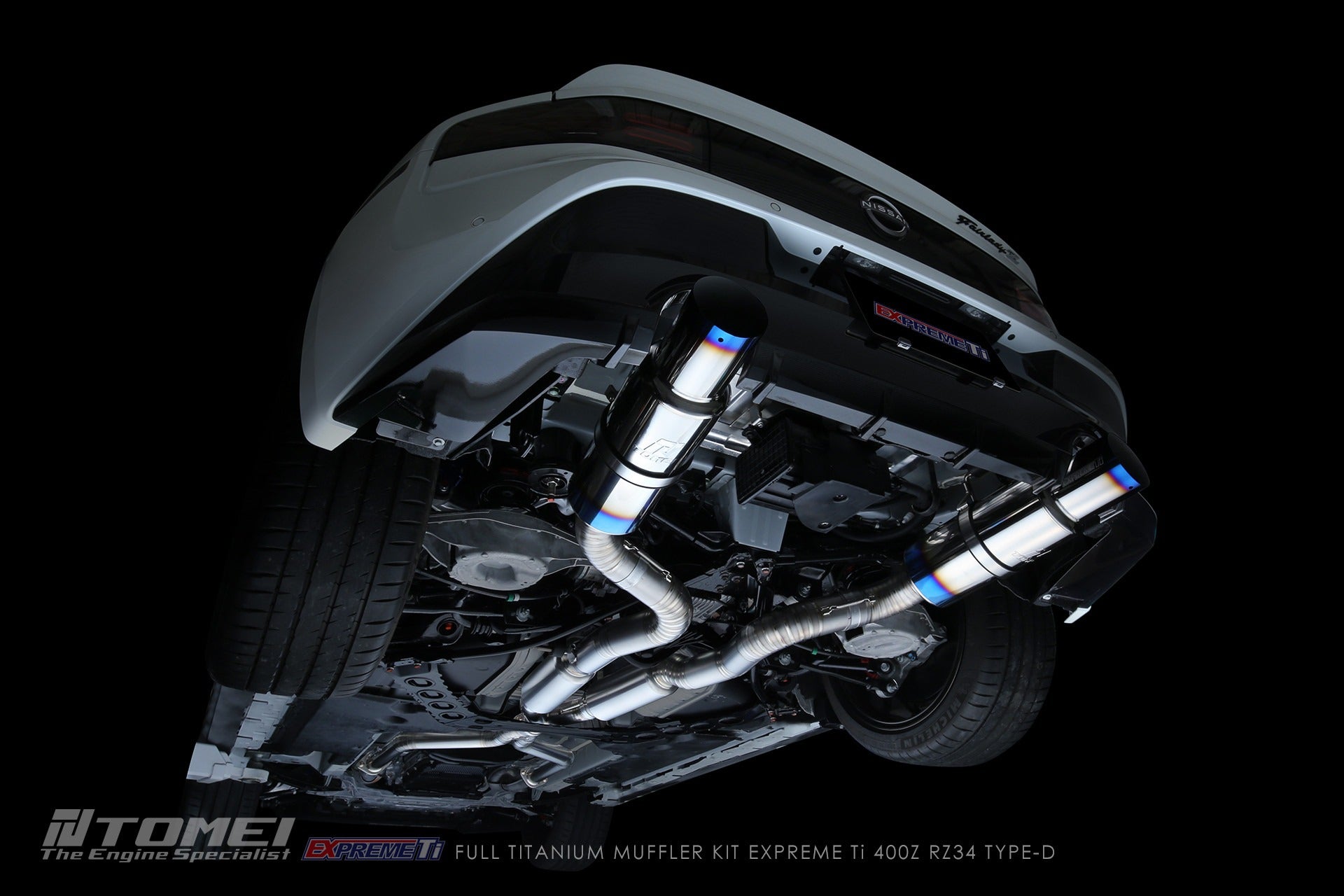

Tomei Expeme Type-D Titanium Exhaust | 2023+ Nissan Z (TB6090-NS21D)

Tomei Expeme Type-D Titanium Exhaust | 2023+ Nissan Z

Give your 2023+ Nissan Z the unmistakable sound and appearance of a premium titanium exhaust with the Tomei Expreme Ti Type-D Dual-Exit Muffler Kit. Engineered specifically for the RZ34 Nissan Z and its VR30DDTT twin-turbocharged V6 engine, this system combines lightweight construction, improved exhaust flow, and aggressive motorsport-inspired styling.

Constructed entirely from titanium, the Type-D exhaust weighs just 26.7 pounds compared to approximately 44.1 pounds for the factory system. This represents a significant 17.4-pound weight reduction while maintaining the balanced dual-exit appearance of the Nissan Z.

The performance-oriented design features large 80.5mm main piping, straight-through silencers, and dual 115mm titanium exhaust tips. These components work together to reduce exhaust restriction and produce the deep, distinctive titanium exhaust note Tomei is known for.

Full Titanium Construction

Tomei developed the Expreme Ti lineup around lightweight materials, precise exhaust routing, and motorsport engineering. The Type-D system utilizes titanium piping with a 1.0mm wall thickness, offering an excellent balance of durability, strength, and reduced weight compared to conventional steel exhaust systems.

The dual-exit configuration incorporates precision-welded titanium silencers and signature blue heat-gradation exhaust tips with laser-etched Expreme Ti branding. The result is a striking performance exhaust that complements the aggressive rear styling of the RZ34 Nissan Z.

Key Features

  • Full titanium exhaust construction
  • Type-D dual-exit configuration
  • Designed specifically for the Nissan Z RZ34 platform
  • 80.5mm (3.17 inch) main pipe diameter
  • Lightweight 1.0mm titanium pipe walls
  • Dual 115mm (4.53 inch) titanium exhaust tips
  • Dual 152mm high-flow main silencers
  • Approximately 17.4 pounds lighter than the factory exhaust
  • Straight-through design for improved exhaust flow
  • Precision-welded titanium construction
  • Spring and clamp connections accommodate heat expansion and vibration
  • Includes removable sound reducers for exhaust volume adjustment
  • Signature titanium heat-gradation finish
  • Tomei part number TB6090-NS21D

Technical Specifications

  • Manufacturer: Tomei USA
  • Product Series: Expreme Ti
  • Part Number: TB6090-NS21D
  • Configuration: Type-D Dual-Exit
  • Material: Full Titanium
  • Main Pipe Diameter: 80.5mm (3.17 inches)
  • Main Pipe Wall Thickness: 1.0mm
  • Sub Silencer Diameter: 118mm x 2
  • Main Silencer Diameter: 152mm x 2
  • Exhaust Tip Diameter: 115mm x 2
  • Exhaust Tip Wall Thickness: 1.0mm
  • Flange Thickness: 8.0mm
  • Tomei Exhaust Weight: 12.1kg (26.7 lbs)
  • OEM Exhaust Weight: Approximately 20.0kg (44.1 lbs)
  • Approximate Weight Savings: 7.9kg (17.4 lbs)
  • Engine Application: VR30DDTT 3.0L Twin-Turbo V6

Performance Benefits

  • Reduces exhaust system weight by approximately 17.4 pounds
  • Improved exhaust flow through larger diameter piping
  • Reduced exhaust restriction for performance applications
  • Deep, aggressive titanium exhaust sound
  • Dual-exit design maintains balanced rear styling
  • Lightweight construction with durable titanium materials
  • Designed to complement modified VR30DDTT engines

Adjustable Exhaust Sound

The Tomei Type-D exhaust includes two removable sound reducers that allow the exhaust volume to be adjusted between three configurations: Standard, Quiet Mode 1, and Quiet Mode 2.

Standard mode provides the unrestricted exhaust sound, while the optional sound reducers allow reduced exhaust volume. Quiet Mode 2 requires additional drilling and proper installation of the supplied mounting hardware.

Always follow Tomei's installation instructions when configuring the sound reducers to ensure they are securely mounted.

Vehicle Fitment

  • 2023+ Nissan Z (RZ34)
  • 2023+ Nissan 400Z (RZ34)
  • VR30DDTT 3.0L Twin-Turbo V6

Designed for the RZ34 Nissan Z platform. Please verify compatibility with your specific vehicle, drivetrain, and exhaust configuration before ordering.

What's Included

  • One Tomei Expreme Ti Separator Pipe
  • One Left Titanium Main Pipe
  • One Right Titanium Main Pipe
  • One Left Titanium Silencer and Exhaust Tip
  • One Right Titanium Silencer and Exhaust Tip
  • Two Silencer Mounting Bands with Rubber Insulators
  • Two Exhaust Gaskets
  • Four Exhaust Clamp Bands
  • Six Exhaust Connection Springs
  • Two Removable Sound Reducer Assemblies
  • One Charcoal Canister Relocation Bracket
  • Required Oil-Resistant Hoses, Hose Brackets, and Clamps
  • Required Installation Bolts and Nuts
  • One Hex Key
  • Tomei Bolt Smooth Paste
  • Installation Instructions

Important Installation Information

This product is the Tomei Type-D Dual-Exit Titanium Muffler Kit. The matching Tomei Titanium Y-Pipe, part number TB6110-NS21A, is sold separately.

The optional Tomei Y-shaped mid-pipe can be purchased separately to complete your titanium exhaust setup. Please verify compatibility with your existing exhaust components before installation.

Installation requires relocation of the factory charcoal canister using the supplied bracket and associated hardware. Follow the manufacturer's instructions carefully to ensure proper clearance and hose routing.

Tomei specifies this product for motorsport and competition use on closed courses. It is not intended for public road use. Please verify applicable exhaust noise regulations before purchasing.

Professional installation is recommended. The exhaust system and surrounding components must be completely cool before installation or servicing.

Quiet Mode 2 requires additional drilling to securely mount the sound reducers. Follow all manufacturer warnings and installation procedures to prevent loose components or exhaust damage.

For detailed installation instructions, refer to the Tomei Type-D Nissan Z Installation Manual.

Warranty

  • Tomei Standard Limited Manufacturer's Warranty
