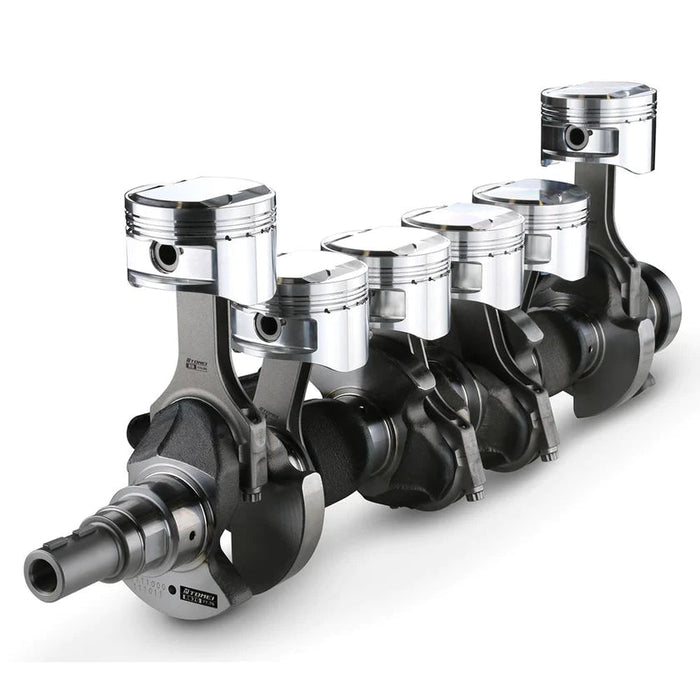

These new stroker kits from Tomei are just what the doctor ordered. This kit comes with an expertly balanced crankshaft with shaped counterweight edges and an X type 2 line oiling system. Each crankshaft has gone through high precision quality control.
The pistons are forged for light weight and high rigidity, are compatible with standard and 1mm oversized valves, and feature a thin ring design to reduce friction. They are compatible with standard and 1mm oversized valves and have optimal oil jet clearance.
The connecting rods utilize a tested and proven H-beam design and feature a gradually slanted design for maximum rigidity. They have large diameter dowel pins and two oil ports on the piston side for maximum lubrication. High tensile ARP L19 bolts are included.
Features
Precision designed crankshaft with high balance ratio counterweights
Crankshaft utilizes an X type 2 line oiling system
Pistons designed for light weight and high rigidity with thin rings for reduced friction
Pins, rings and clips are all included with the pistons
Compatible with standard and 1mm oversized valves
Gradually slanted H-beam connecting rods designed for light weight and high rigidity
Connecting rods have two oil ports on the piston side for maximum lubrication
High tensile ARP L19 connecting rods bolts are included
Specifications
BORE (mm):87.00 (STOCK +1.0)
STROKE (mm):77.70 (STOCK +4.0)
DISPLACEMENT (cc):2771.4
C.C. VOLUME (cc):64.5
PISTON DOME VOL. (cc):13.3 (Tomei Pistons) | 12.4 (CP Pistons)
PISTON DECK CLEARANCE/HIGHT (mm):±0.0
PISTON COMP.HEIGHT (mm):30.00 (STOCK ±0.0)
ROD C-to-C (mm):119.50 (STOCK -2.0)
HEAD GASKET BORE (mm):88.0
C/R With 88.0-1.2:8.90 (Tomei Pistons) | 8.78 (CP Pistons)
C/R With 88.0-1.5:8.66 (Tomei Pistons) | 8.54 (CP Pistons)
C/R With 88.0-1.8:8.43 (Tomei Pistons) | 8.33 (CP Pistons)
