Replacing rusty or worn factory fasteners with titanium can clean up a vehicle, improve corrosion resistance, and make frequently serviced areas easier to maintain. The key is to treat the project as a location-by-location hardware upgrade, not a reason to replace every bolt on the car.
Start with visible, noncritical locations where the original fastener can be measured and its function is understood. Engine-bay panels, radiator-support trim, license plates, cosmetic brackets, and purpose-built dress-up kits are sensible starting points. Brakes, steering, suspension, restraints, structural joints, electrical grounds, and other safety-critical locations require application-specific engineering and should never receive a generic replacement based only on diameter or appearance.
Why Use Titanium Automotive Hardware?

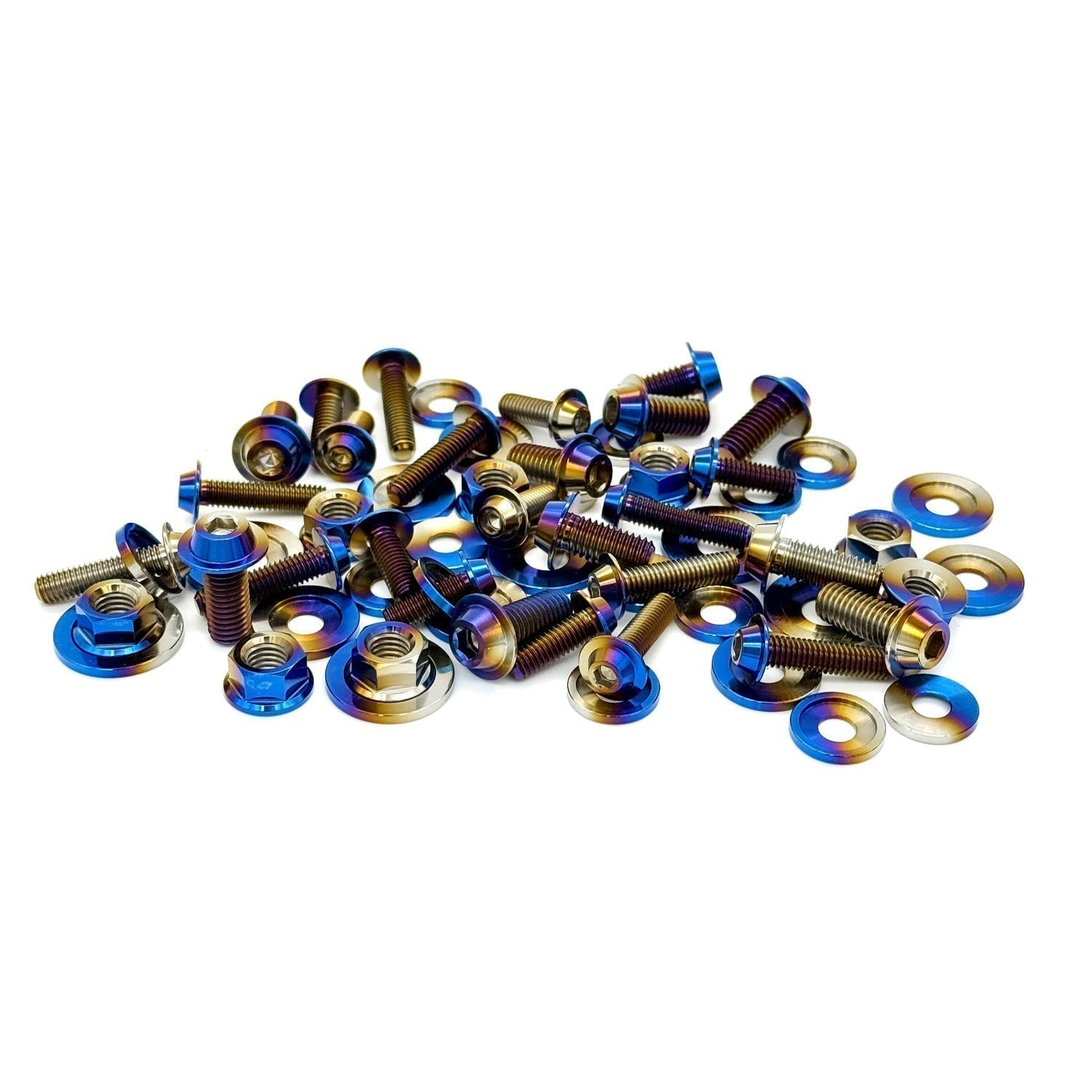

JDC hardware is commonly made from Grade 5 titanium, also known as Ti-6Al-4V. This alloy offers high specific strength, low weight, and excellent resistance to corrosion. Those properties make it especially useful for visible automotive hardware exposed to moisture, road salt, heat cycles, and repeated cleaning.
On a street car, the most noticeable benefits are usually corrosion resistance, finish quality, and the ability to coordinate hardware across an engine bay or exterior detail. Replacing a small number of bolts will not create a meaningful performance gain by itself, and titanium is not automatically a better substitute for every grade of steel fastener.
Where Titanium Hardware Makes Sense
Titanium works best where its specifications match the factory hardware and its material properties suit the location. Common candidates include:
- Visible engine-bay panels and brackets
- Radiator-support, fender, and core-support trim hardware
- License-plate mounting points
- Interior and exterior dress-up hardware
- Valve-cover and accessory-area hardware when supplied for the exact application
- Wheel hardware engineered for the vehicle, wheel seat, and stud specification
Do not assume a visually similar bolt has the same job. A factory fastener may provide electrical continuity, establish alignment, compress a seal, locate a component with an unthreaded shoulder, or use a controlled-stretch installation procedure. If removing the original piece can affect vehicle control, occupant protection, fluid containment, or structural integrity, use an application-approved part and professional guidance.
Inventory the Factory Hardware Before Removal
Photograph the complete area before taking it apart, then label each fastener by location. Work on one small section at a time and keep the original hardware organized so the vehicle can be returned to its previous configuration.
Record the thread diameter, pitch, length, head style, washer or flange, shoulder length, seat geometry, tool size, and quantity. Also note clips, spacers, isolators, and grounding points that may not be obvious once the assembly is apart.
The JDC measuring gauge gives an engine-bay or exterior hardware project a consistent way to compare bolt length and diameter before ordering replacements. It is particularly useful when several visually similar factory bolts have been removed from adjacent panels, although thread pitch and the fastener's function still need to be checked separately.
JDC Titanium Bolt Measuring Gauge
A thread checker is useful when the project includes both male and female threads or a mix of metric and SAE hardware. Identifying the interface before ordering helps prevent cross-threading and avoids forcing a close-looking pitch into a threaded insert or captive nut.
Nut & Bolt Thread Checker for SAE & Metric Hardware
How to Measure a Replacement Bolt
Use the factory fastener and the receiving thread together as the reference. Confirm every specification that controls how the joint clamps and locates the part:
- Diameter: The nominal outside diameter of the thread, such as M6 or M8.
- Thread pitch: The distance between metric threads or the threads per inch for SAE hardware.
- Length: Usually measured from beneath the head to the tip, except for countersunk fasteners whose head is included in the overall length.
- Head and drive: The head diameter, height, profile, and tool interface must clear the surrounding part.
- Shoulder and grip: An unthreaded section may locate a component or carry shear load. A fully threaded bolt is not automatically equivalent.
- Washer, flange, and seat: These determine how clamp load spreads into the surface.
- Thread engagement: The replacement must engage the receiving threads correctly without bottoming out.
Do not determine fitment from the vehicle name alone. Model year, trim, production changes, prior repairs, aftermarket panels, and threaded inserts can all change the hardware found on an individual car.
Vehicle-Specific Kits vs Universal Titanium Bolts
A vehicle-specific kit is the simplest route when the car and surrounding components remain close to the intended application. The kit organizes hardware for known mounting points and reduces the amount of individual sizing required. Fitment should still be checked if the car has aftermarket covers, radiator panels, brackets, or replacement bodywork.
For an Evo X engine bay, this application-specific kit addresses a coordinated group of visible factory locations instead of making the owner assemble a mixed set one bolt at a time. It is a strong fit for a full engine-bay refresh where consistent head style, finish, and location-specific quantities matter.
JDC Titanium Engine Bay Hardware Kit | Mitsubishi Evo X
Universal hardware makes more sense when the full kit is unavailable or an aftermarket component no longer uses the factory fastener arrangement. This M6x1.0 flush-fit kit is well suited to visible panels and brackets that need a low-profile head and matching washer, provided the thread pitch, length, seating surface, and load are correct for the location.
JDC Titanium Flush-Fit Bolt/Washer Kit (M6x1.0)
A Low-Risk First Titanium Upgrade
License-plate hardware is a practical place to begin because it is visible, exposed to weather, and separate from the vehicle's major mechanical systems. It also lets you evaluate the chosen titanium finish against the paint, plate frame, and exterior accents before carrying that color into the rest of the build.
This universal mounting kit suits an exterior detail where corrosion resistance and a clean finish are more important than saving weight. Check the vehicle's front and rear mounting method, threaded inserts, plate frame thickness, and any local plate-display requirements before installation.
JDC Titanium Universal License Plate Mounting Kit
Wheel Hardware Is a Separate Fitment Decision
Lug nuts are safety-critical hardware and should not be selected using the same process as an engine-bay dress-up bolt. Confirm the vehicle's stud diameter and pitch, the wheel's seat type, required engagement, stud length, socket clearance, load rating, and the product manufacturer's torque and installation instructions.
These closed-end lug nuts are a purpose-built choice for compatible wheel and stud combinations where protecting the end of the stud and creating a finished appearance are priorities. The available M12 and M14 specifications still have to match the exact thread pitch and the wheel's 60-degree conical seat before use.
JDC Titanium Closed-End Lug Nuts | M12 & M14
Choosing a Titanium Color
Anodized titanium color is created by a controlled oxide layer rather than a painted coating. The appearance can shift with lighting, viewing angle, fingerprints, surface preparation, and nearby colors. A phone or monitor is useful for narrowing the options, but it cannot perfectly reproduce how the finish will look on the vehicle.
Physical color swatches make sense before a larger engine-bay or exterior order because they can be viewed next to the car's paint, carbon fiber, wheels, and existing accents in the same lighting. That helps establish one color direction before purchasing multiple location-specific kits.
JDC Titanium Sample Color Swatches
Installing Titanium Hardware Correctly
- Compare every replacement with the labeled factory fastener before installation.
- Inspect and clean the receiving threads. Stop if they are damaged or contaminated.
- Dry-fit the fastener by hand. It should engage smoothly without being forced.
- Confirm the head and washer sit flat and do not contact nearby hoses, wiring, paint, or moving parts.
- Follow the product and vehicle instructions for torque, lubricant, anti-seize, or threadlocker. Do not reuse a factory torque value blindly when the material, coating, washer, or joint has changed.
- Use clean, fully seated tools to protect the drive and anodized finish.
- Reinspect the area after normal vibration and heat cycles.
Titanium threads can gall when friction and installation conditions are not controlled. The correct assembly method depends on the joint, so use only the lubricant or locking compound specified by the product manufacturer or qualified installer. Keep electrical grounding paths intact, and do not stack decorative washers or spacers where they change engagement or clamp load.
Cleaning and Maintaining the Finish
Allow the vehicle to cool before cleaning. Start with a soft microfiber towel and a product compatible with anodized titanium, then avoid abrasive pads, aggressive metal polish, and harsh chemicals that may alter the surface appearance.
This titanium-specific cleaner fits the final detailing stage of an engine-bay or exterior hardware installation. It helps remove fingerprints and light residue from visible titanium without treating the anodized surface like bare stainless steel or chrome.
JDC Titanium Cleaner - *The World's First Titanium Cleaner!*
Common Titanium Hardware Mistakes
- Replacing every visible bolt before documenting the factory locations
- Matching only the thread diameter while ignoring pitch, length, shoulder, or seat
- Using a universal bolt in a braking, steering, suspension, restraint, or structural location
- Removing a fastener that also provides grounding, alignment, or sealing
- Assuming a vehicle-specific kit accounts for every aftermarket panel or bracket
- Forcing a fastener that does not thread smoothly by hand
- Applying an unverified torque value or installation compound
- Choosing color from a screen for a large coordinated build
- Skipping the first reinspection after heat and vibration cycles
Replacement rule: Match the fastener's complete specification and function, not just its visible size. If the location affects safety or you cannot explain what the factory hardware does, stop and confirm the application before installing a substitute.
When Professional Help Is the Better Choice
Use a qualified technician when the hardware affects brakes, steering, suspension, seat belts, seats, airbags, subframes, drivetrain mounts, pressurized systems, structural panels, alignment, electrical grounding, or another safety-critical assembly. Professional input is also appropriate when factory service information specifies torque-to-yield hardware, one-time-use fasteners, angle tightening, special thread treatment, or a controlled installation sequence.
Bring the original hardware, exact vehicle information, aftermarket component details, and the proposed replacement. A competent installer should be able to verify the material, dimensions, engagement, seat, clamp requirements, and installation method before the vehicle returns to service.
Titanium Hardware Upgrade Checklist
| Stage | What to Confirm |
|---|---|
| Choose the area | The location is understood, suitable for replacement, and not being treated as a generic cosmetic joint |
| Document | Photos, locations, quantities, clips, washers, grounds, and original hardware are organized |
| Measure | Diameter, pitch, length, head, drive, shoulder, washer, seat, and engagement all match |
| Install | Threads engage by hand and the correct torque and compound instructions are available |
| Reinspect | The fastener remains seated after normal heat and vibration, with no movement, contact, or finish damage |
Frequently Asked Questions
Can titanium replace every factory bolt?
No. Titanium should replace a factory bolt only when the complete specification, joint function, installation method, and application have been verified. Generic titanium hardware does not belong in safety-critical or structurally important locations.
Is titanium hardware stronger than steel?
That comparison depends on the specific titanium alloy, steel grade, fastener design, manufacturing process, and joint. Grade 5 titanium has an excellent strength-to-weight ratio, but it is not automatically stronger or more suitable than every automotive steel fastener.
Does titanium hardware rust?
Titanium does not form iron oxide rust and is highly corrosion resistant in many automotive environments. The complete joint still needs inspection because surrounding metals, clips, washers, and mounting surfaces can corrode.
Do titanium bolts need anti-seize?
Some titanium threaded joints require an appropriate lubricant or anti-seize to control friction and reduce galling risk, while other applications may specify threadlocker or a dry installation. Follow the instructions for the exact product and joint rather than applying one rule everywhere.
What is the easiest titanium upgrade to start with?
License-plate hardware or a verified vehicle-specific dress-up kit is usually easier to plan than building a mixed universal set. Both still require fitment checks, but their intended locations and quantities are clearer.
Plan the Upgrade One Area at a Time
A successful titanium hardware project starts with a well-documented factory baseline. Choose one suitable area, verify every interface, install the hardware according to the correct instructions, and reinspect it before expanding the color and finish into another part of the vehicle.
