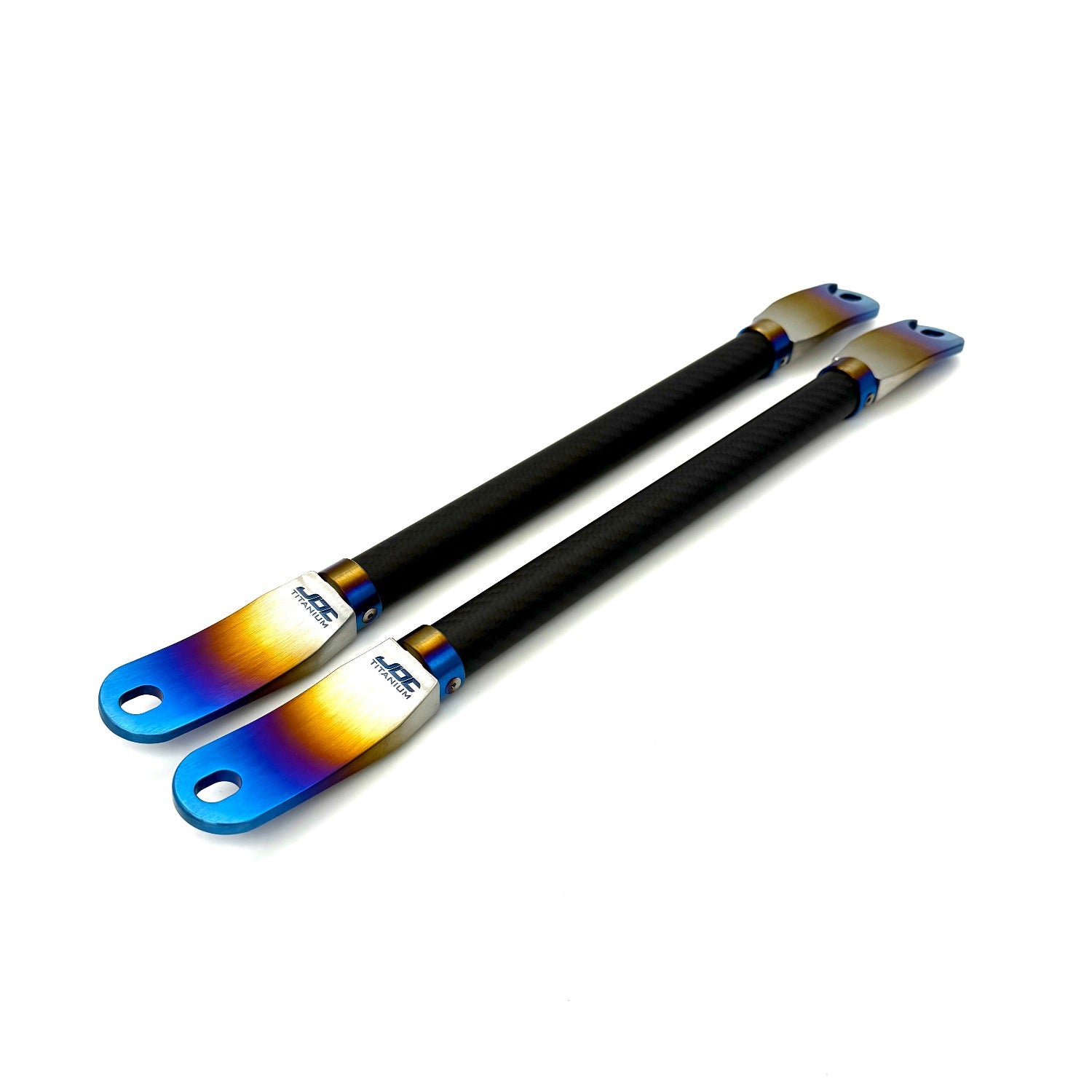

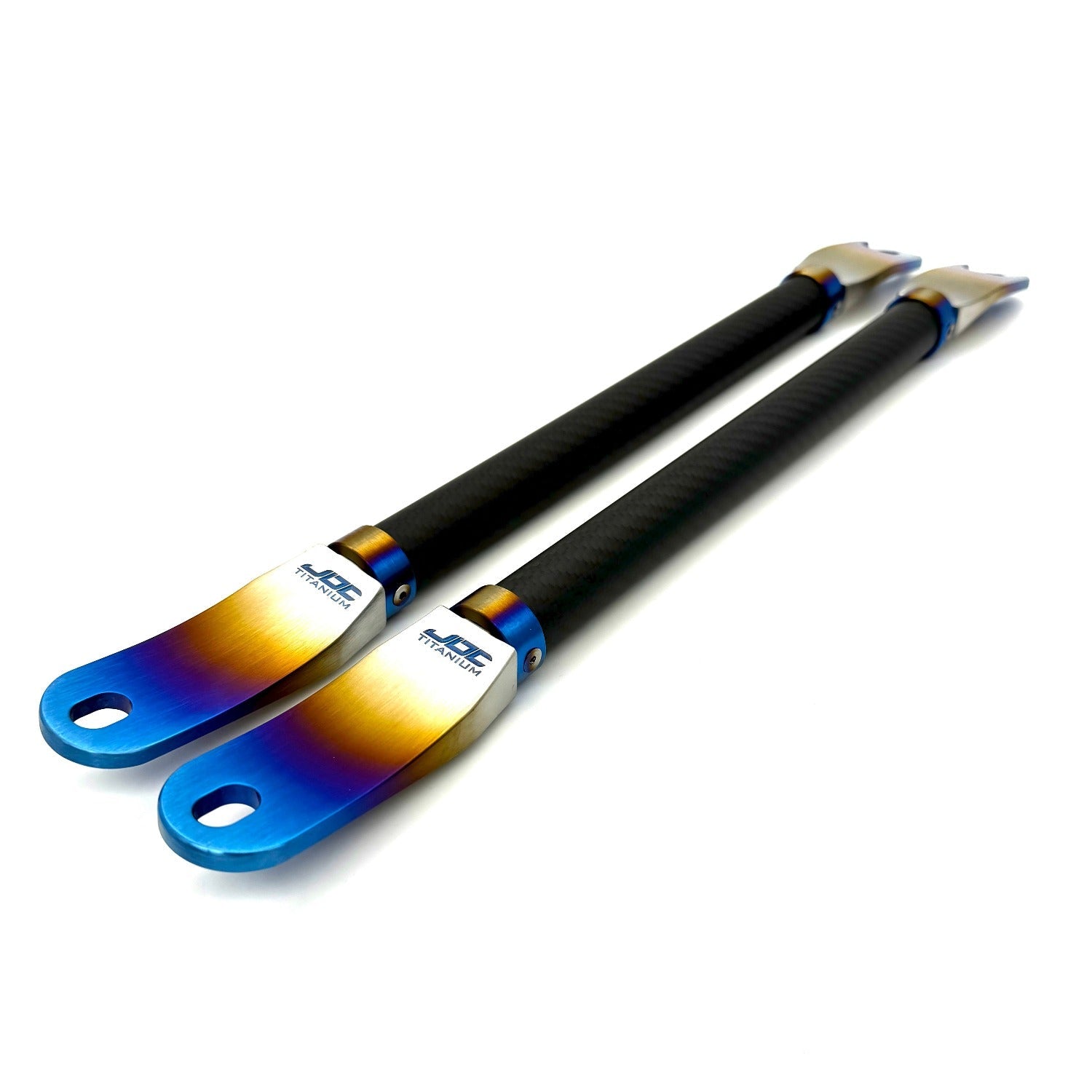

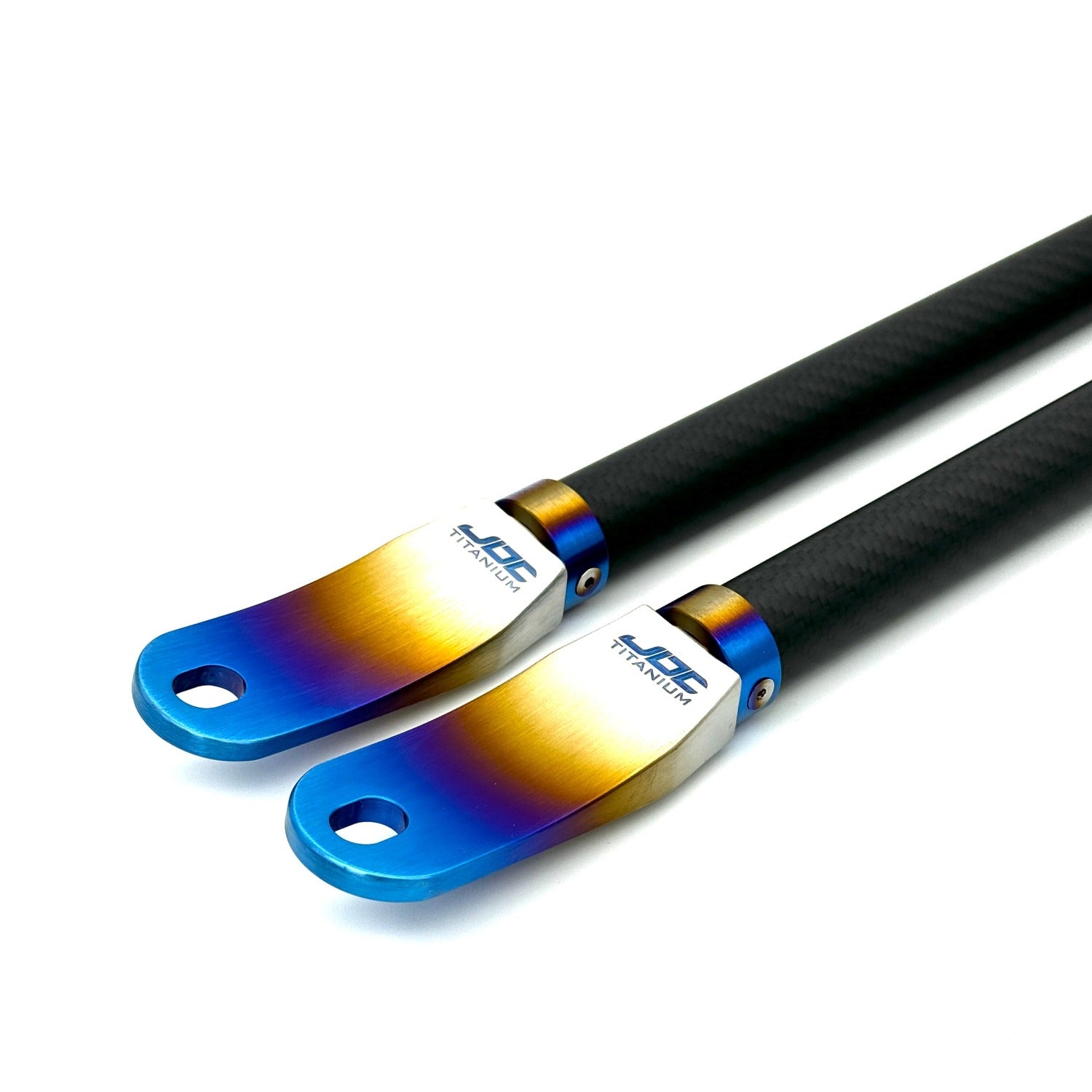

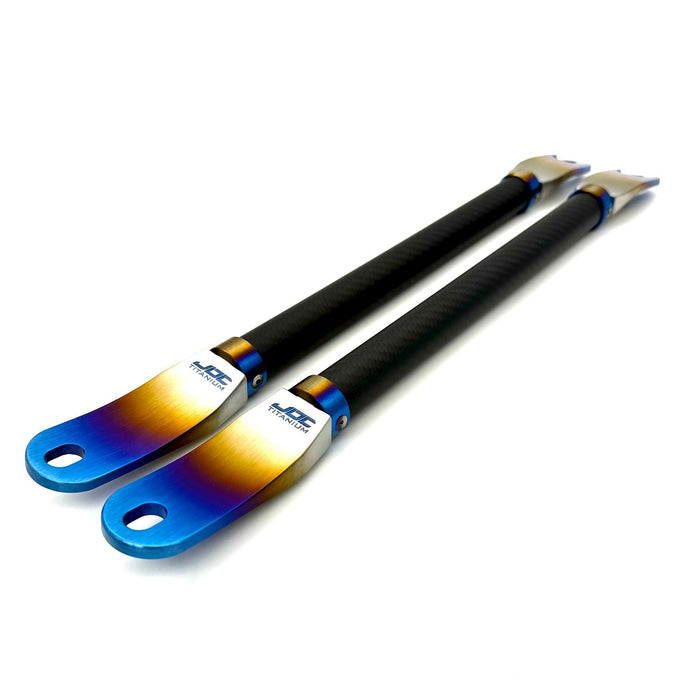

JDC Titanium & Carbon Front Strut Brace Set (A90/A91 Supra)
The JDC Titanium Front Strut Brace Set is crafted from premium solid carbon fiber with billet Gr5 titanium brackets on both ends, which boasts extreme durability and adds a beautiful titanium look to your engine bay! These strut braces deliver enhanced structural integrity to your vehicle's frame.
The braces are complemented by Grade 5 titanium hardware available in many anodized colors, adding a touch of visual flair to the technical prowess.
Each titanium piece is hand brushed & polished before receiving our proprietary anodizing process, which gives it the long-lasting vibrant colors we're known for!

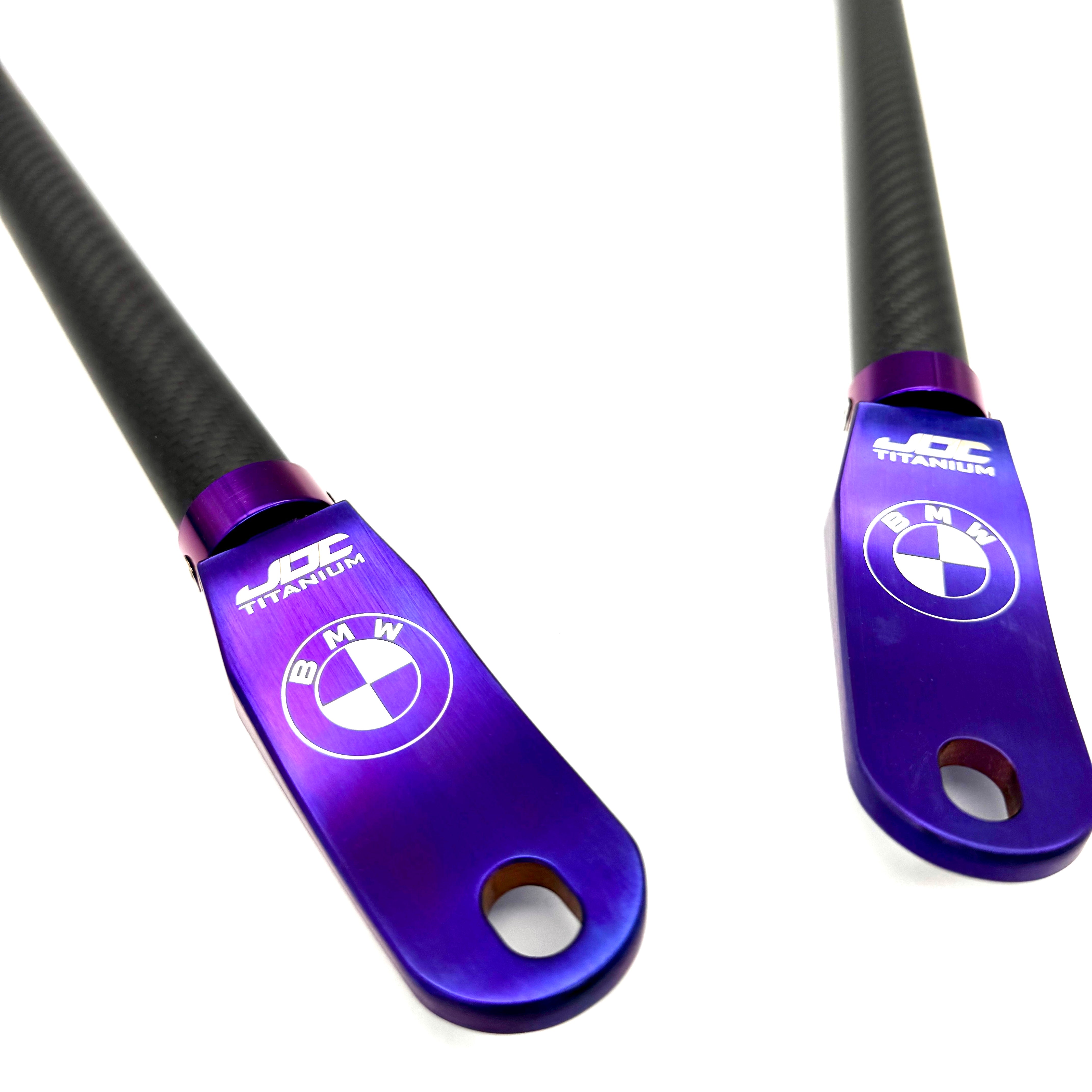

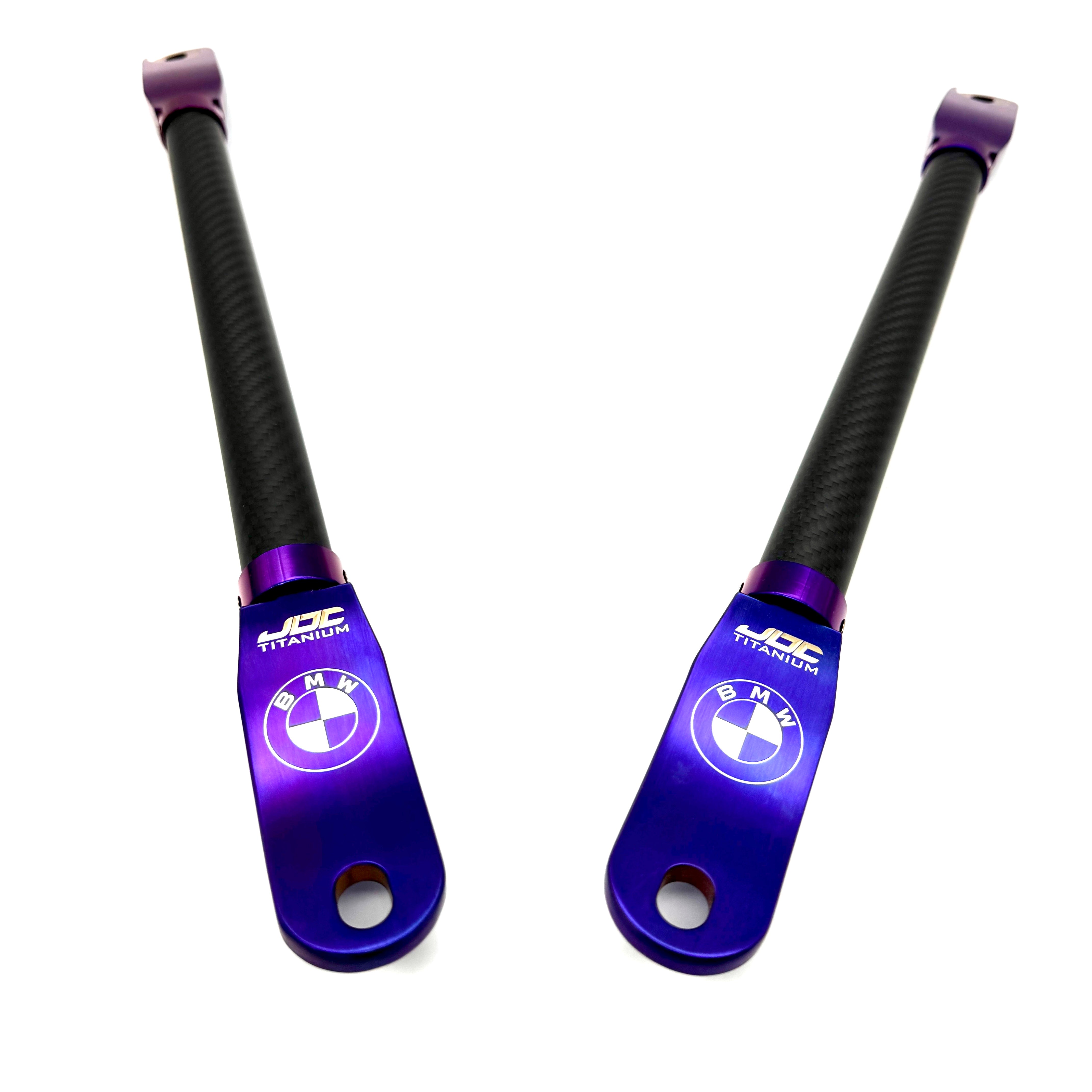

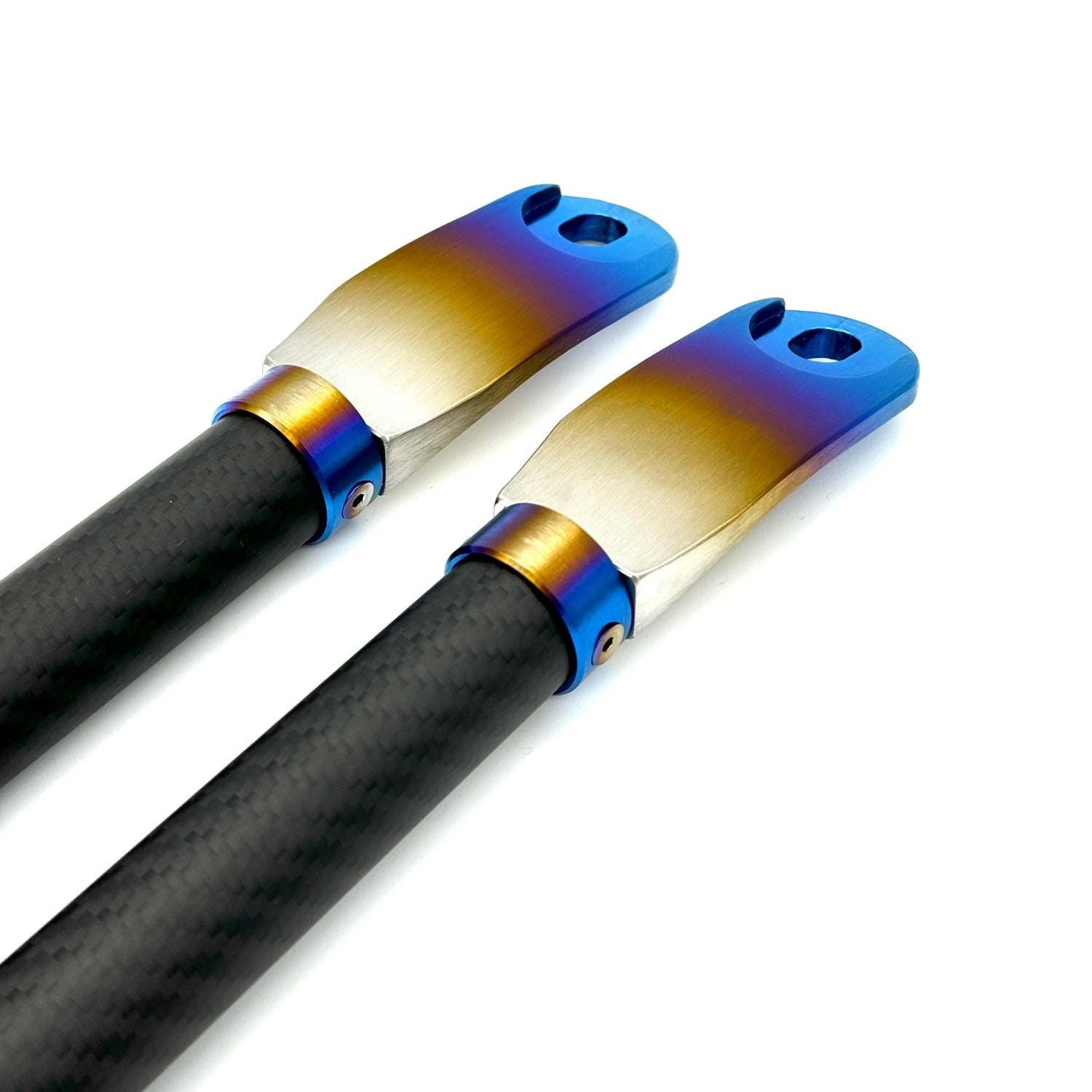

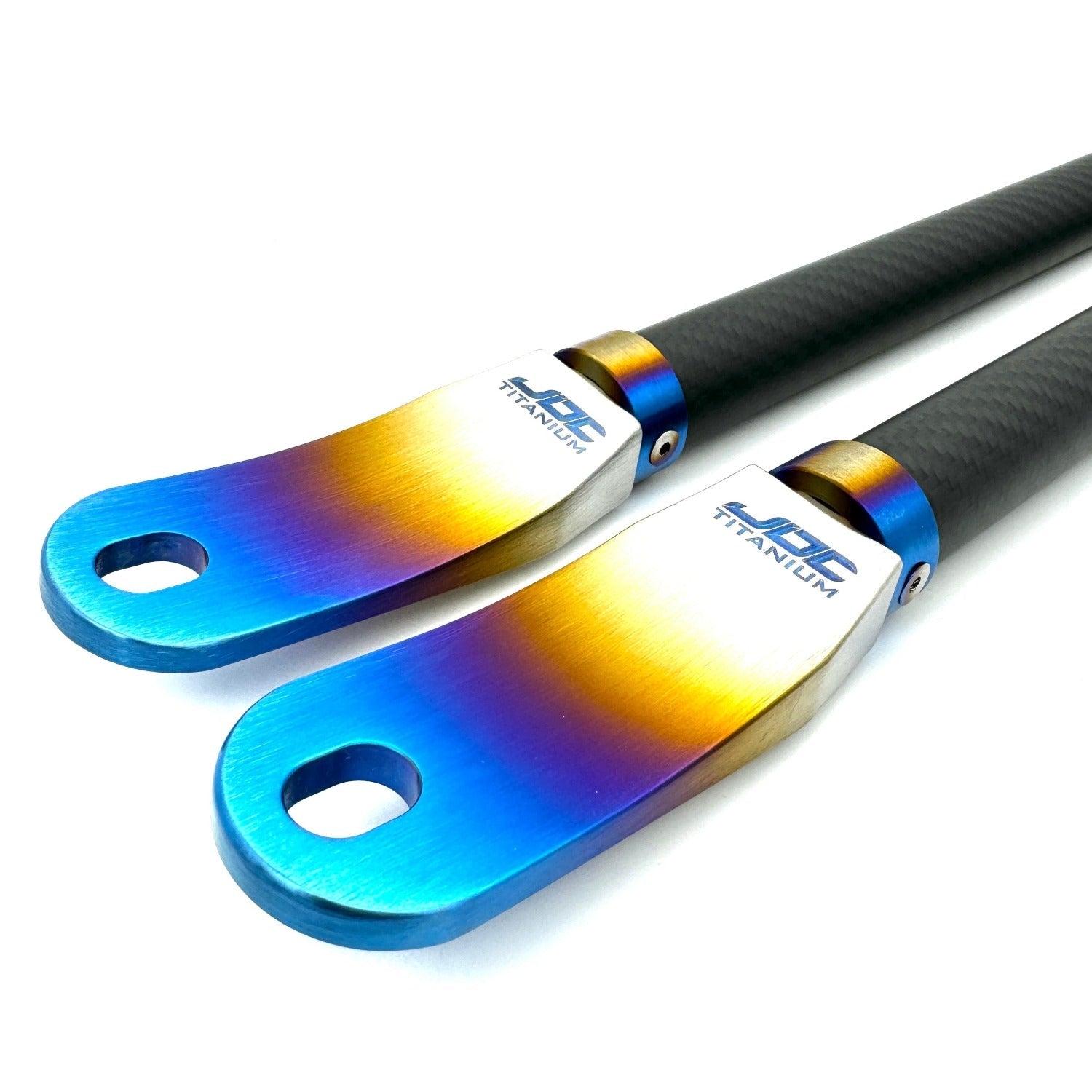

Titanium Bracket Features:
- CNC Machined from Billet Gr5 (Ti6Al-4V) Titanium
- Hand-Brushed & Polished
- Colored using our proprietary cold anodizing treatment
- Available in multiple colored finishes.
- Available with custom laser-etched logos
- For a color chart and information on our titanium products please click here.
Carbon Fiber Features:
- 10 times stronger than steel and 1/4 of the weight!
- 26mm Outer Diameter Rod
- 3mm Thick Interior Wall
- Constructed of Solid Dry Carbon Fiber (no fillers)
- Matte Finish
What's In The Box?
- (2) Strut Braces
- (4) M10 Titanium Bolts
- (4) M10 Titanium Washers
Applications:
- Fits all 2020+ Supra Models
-
Note: If you have an airbox that is not made to fit with a strut brace, you may need to add washers under the mounting points to add clearance. Please check your application before ordering.
Installation Steps:

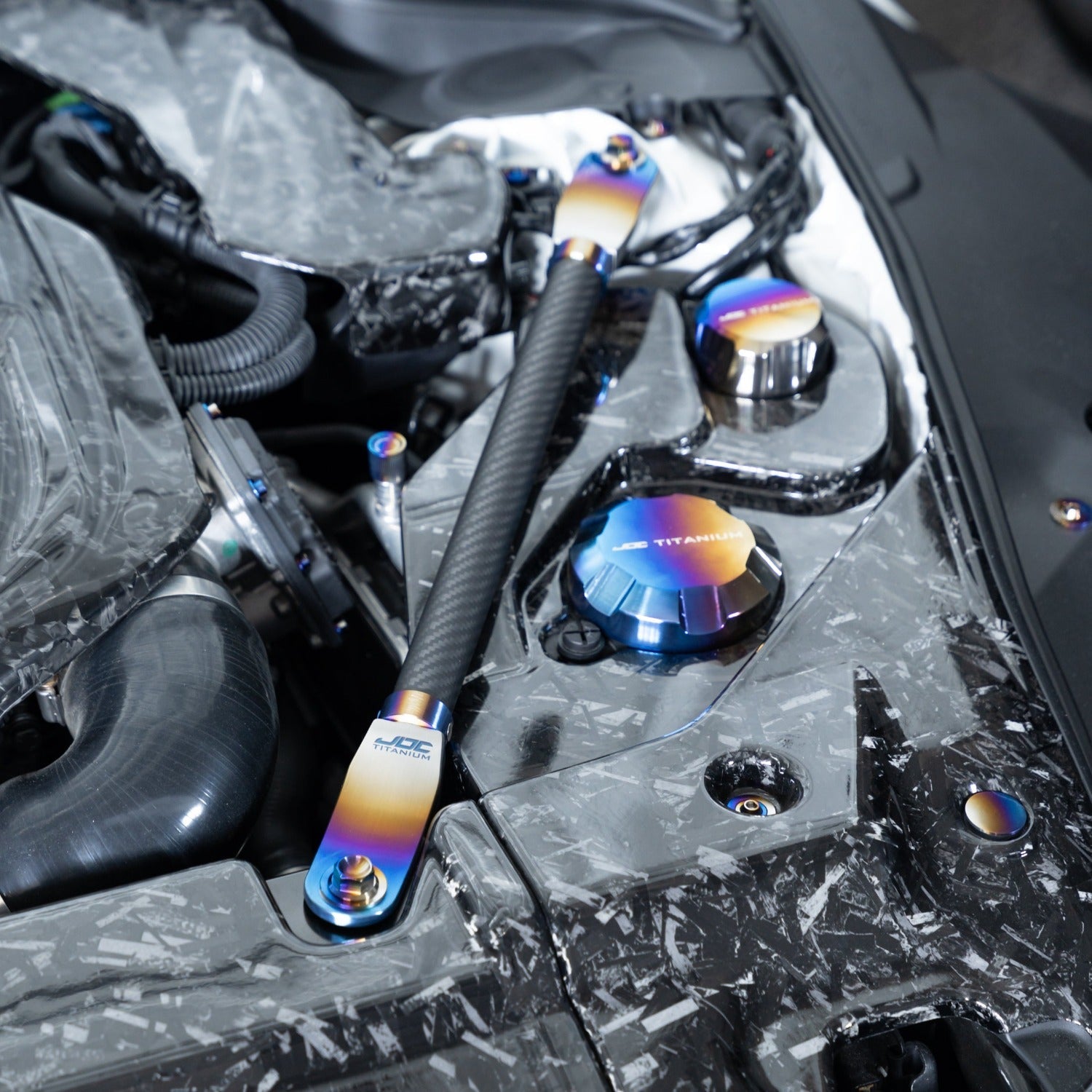

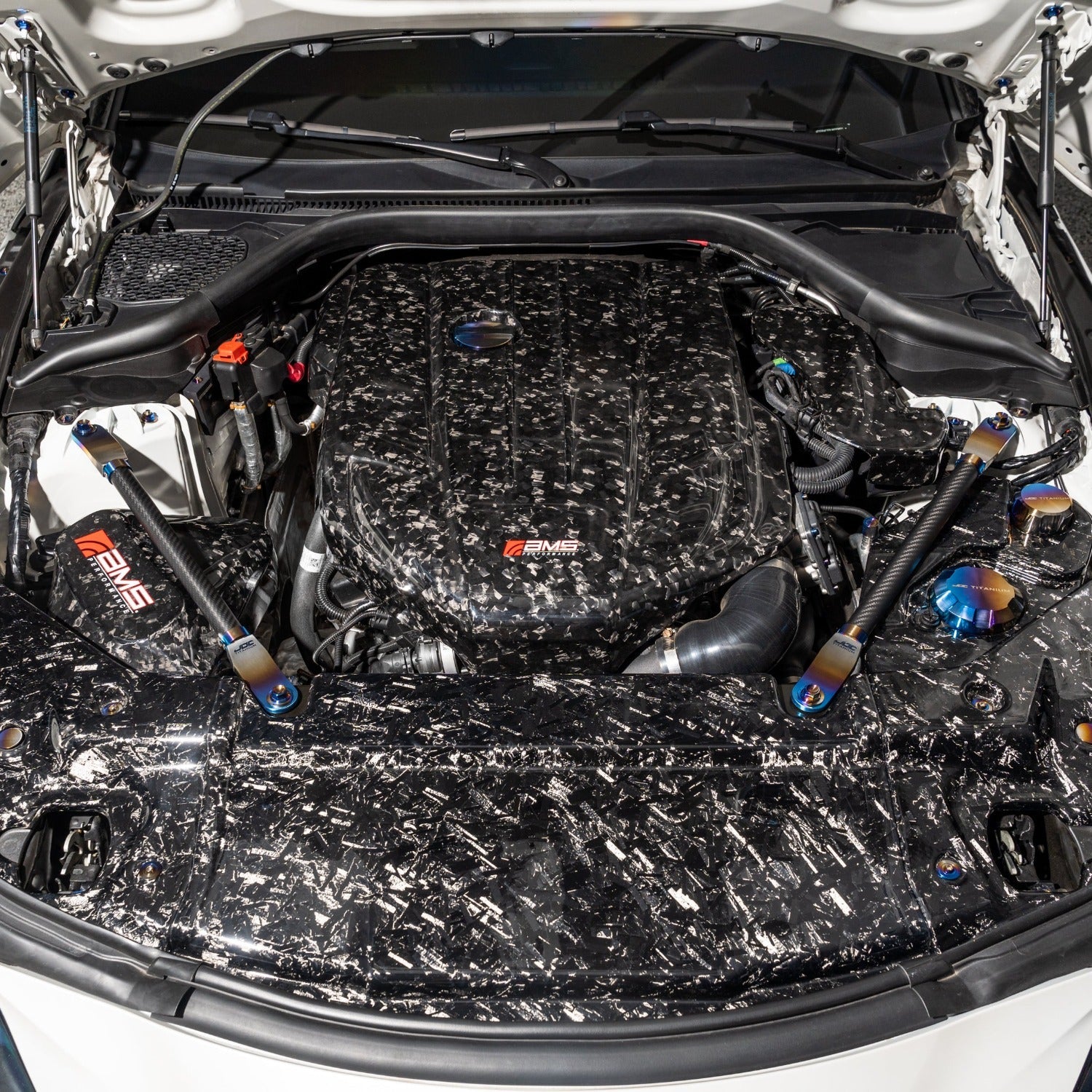

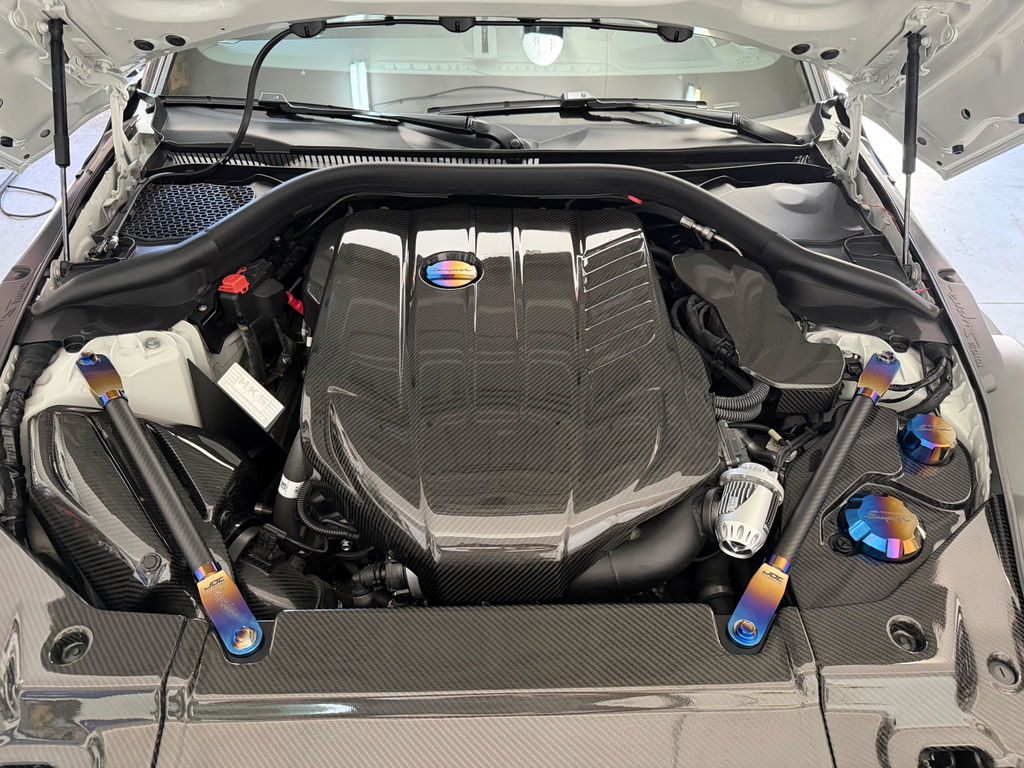

- Place the bar in place between the strut tower and the front frame. The logo should be facing the front of the car. The mounting bracket with the recessed area goes on the strut brace.
- Insert the titanium bolt and washer in both ends and hand tighten.
- Tighten to your desired torque (Toyota/BMW does not provide torque specs for this area).
-
Note: The 2020 model lacks pre-threaded strut towers for brace installation. You have two options:
- (Recommended) You can tap the sleeves to add M10x1.5 threads and use the provided bolts. This is the easiest method.
- Alternatively, you can use a longer M8 bolt and nut (not included) to fit inside the sleeve and put the nut on the bottom. You'll have to get into your fender liner to attach the nut if you use this method.
Shipping Times:
-
All JDC titanium products are made to order unless otherwise stated on the item listing. Please see the red banner at the top of the website for the current estimated turnaround time. Production time can vary depending on your order size, products ordered, and the difficulty of custom options requested.
