Coil-on-plug systems place one ignition coil at each spark plug or connect each cylinder to an individual coil through a short lead.
Conversions are popular on older performance engines because they can simplify ignition routing, eliminate worn distributor components, and give the ECU more direct control over each cylinder.
However, modern-looking coils do not automatically create more spark energy or horsepower.
A successful conversion depends on the complete ignition system:
- Coil electrical characteristics
- ECU output type
- Dwell control
- Crank and cam synchronization
- Power distribution
- Grounding
- Heat management
- Mechanical retention
- Calibration and testing
Convert when the existing system has a measured limitation in control, energy, packaging, reliability, or serviceability—not simply because individual coils look cleaner on the valve cover.
How Distributor, Wasted-Spark, and COP Systems Differ
| Ignition Type | How It Works | Main Consideration |
|---|---|---|
| Distributor | Mechanically routes spark from one ignition source to each cylinder | Cap, rotor, shaft wear, timing scatter, and parts availability |
| Wasted spark | One coil serves a paired set of cylinders | Simple and proven, but charge time and energy are shared across paired events |
| Coil-on-plug | One coil is assigned to each cylinder | Individual dwell, firing control, packaging, heat, and serviceability |
| Smart coil | Contains an internal igniter | Requires compatible logic-level ECU triggering and correct grounding |
| Dumb coil | Requires an external ignition module or igniter | Igniter sizing, heat dissipation, wiring, and ECU compatibility are critical |
When a Coil-on-Plug Conversion Makes Sense
A COP conversion is most useful when it solves a known problem.
Common reasons include:
- An obsolete distributor with worn or unavailable service parts
- Timing scatter from a mechanical ignition system
- A wasted-spark system that cannot maintain spark under the target cylinder pressure
- Packaging problems caused by long plug wires or remote coil packs
- A standalone ECU that can support true sequential ignition
- A need for improved diagnostic control or cylinder-specific testing
A healthy factory COP system usually does not need replacement for appearance alone.
Before redesigning the ignition, confirm that the current problem is not caused by worn plugs, an incorrect gap, poor grounds, low supply voltage, an overly rich mixture, fuel pressure loss, or calibration errors.

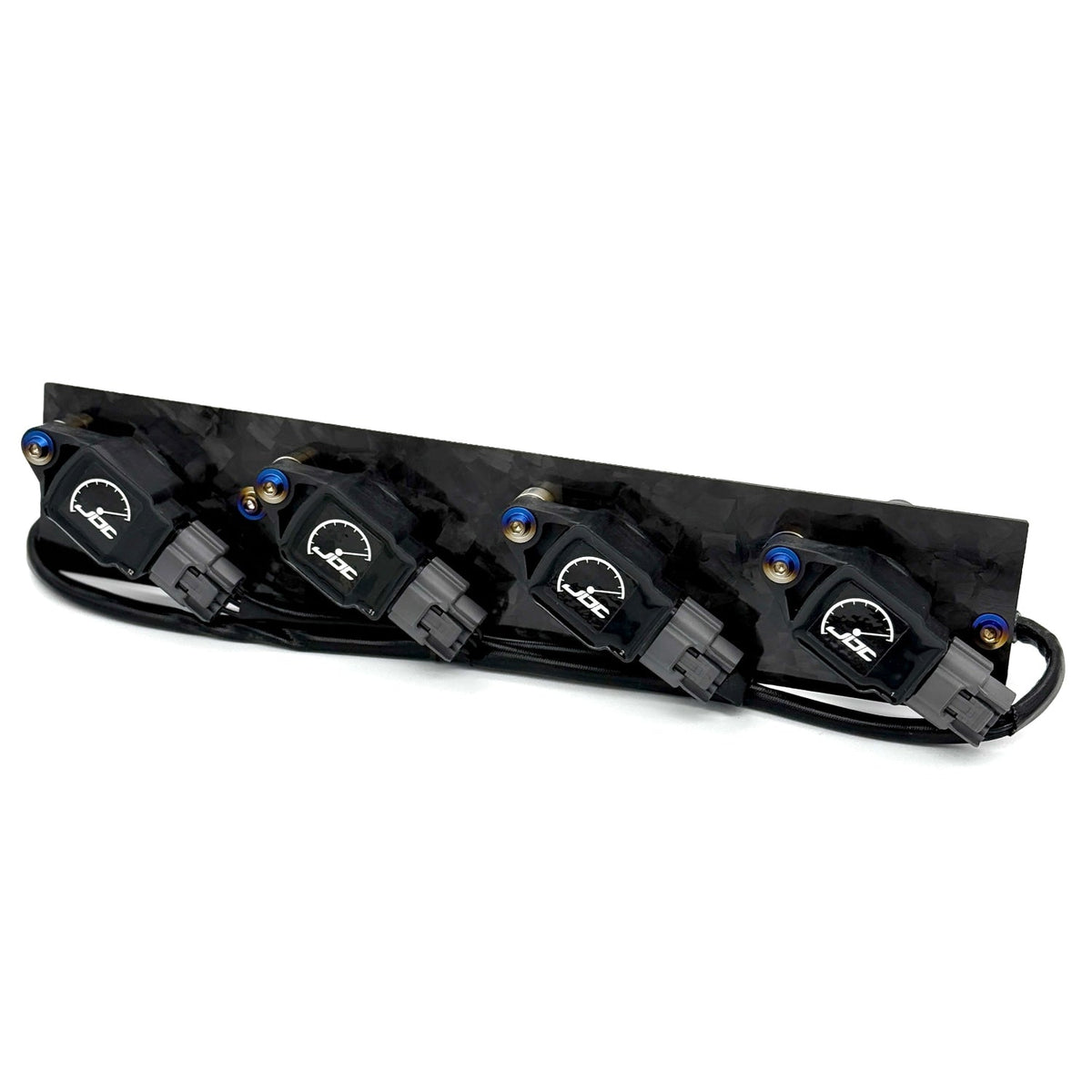

For Evo 4–9 owners with a verified ignition limitation, JDC's complete Denso system provides a direct conversion path without piecing together the coils, harness, plate, and mounting hardware separately. It arrives assembled with authentic Denso coils and connects to the factory ignition wiring without additional harness fabrication.
JDC Coil-On-Plug Ignition System | New Denso Coils | 1996-2006 Evo 4-9
Coil-on-Plug Does Not Automatically Add Horsepower
An ignition upgrade does not add power when the original system already lights the mixture reliably at the target load.
A COP system can recover lost power when the old system misfires, blows out the spark, or cannot maintain consistent timing.
The performance gain therefore comes from eliminating an ignition limitation—not from the number of coils itself.
The correct acceptance test is measurable:
- Misfire is eliminated under the target load
- Ignition timing remains stable
- Coils remain within a safe temperature range
- No crank or cam synchronization errors appear
- Battery voltage remains stable
- The engine repeats the result during hot testing
Smart Coils vs. Dumb Coils
Smart Coils
Smart coils contain their own igniter. The ECU sends a logic-level trigger signal, while the coil handles primary-current switching internally.
They still require:
- Correct trigger polarity
- Compatible logic voltage
- Stable power supply
- Proper high-current grounding
- Accurate dwell control
Dumb Coils
Dumb coils require an external ignition module to switch primary current.
The igniter must be compatible with:
- The coil’s current demand
- The ECU output strategy
- The number of ignition channels
- Required dwell
- Expected heat load
An undersized or poorly cooled igniter can create intermittent misfires or fail even when the coils themselves are suitable.
An existing Denso-style Evo COP system can also be serviced without replacing the entire conversion. JDC offers individual authentic Denso coils in new or refurbished form for its Evo 4–9 system and other compatible Denso-style kits.
Denso Ignition Coil (Multiple Applications)
The ECU Must Control Dwell Correctly
Dwell is the amount of time used to charge the coil before the spark event.
Too little dwell reduces stored energy. Too much dwell can overheat the coil, overload the igniter, damage ECU drivers, and shorten component life.
The correct dwell table depends on:
- Coil inductance
- Current characteristics
- Battery voltage
- Operating temperature
- Igniter behavior
Do not copy a dwell table from a different coil because the housings look similar.
Use published data from the coil or ignition-system manufacturer, then validate coil temperature and performance during commissioning.
Important: Incorrect dwell, trigger polarity, or wiring can damage the ECU, igniters, coils, and engine. Commission the conversion with someone who understands the exact electronics.
Battery-Voltage Compensation Matters
A coil charges differently at 10 volts than it does at 14 volts.
The ECU’s dwell strategy should compensate for changing system voltage during:
- Cranking
- Cold starts
- Alternator recovery
- High electrical load
- Fan or fuel-pump operation
Without proper compensation, the ignition may be weak during cranking or excessively hot during normal charging voltage.
Trigger Accuracy Comes Before Coil Choice
Individual coils cannot fire accurately when crankshaft and camshaft signals are unstable.
A distributor-to-COP conversion may require:
- A new trigger wheel
- A crankshaft-position sensor
- A cam synchronization sensor
- A revised missing-tooth pattern
- Different sensor polarity or edge selection
Confirm:
- Trigger pattern
- Sensor type
- Signal polarity
- Tooth count
- Firing order
- Ignition output assignment
Oscilloscope testing can reveal signal noise, incorrect polarity, missing-tooth issues, and synchronization loss that may not be obvious with a timing light alone.
Power Distribution and Fusing
Several high-energy coils can draw substantial pulsed current.
The installation may require:
- Appropriately sized power wire
- A dedicated relay
- Correct fuse protection
- Low-resistance connections
- Reliable switched power
Undersized wiring or poor relay contacts can cause voltage drop, weak spark, ECU resets, or intermittent misfires under load.
Measure voltage at the coils during operation rather than assuming battery voltage reaches them unchanged.
Grounding Strategy Is Critical
High-current coil grounds should not be connected casually to sensitive sensor-ground circuits.
Follow the ECU and coil manufacturers’ grounding strategy for:
- Power grounds
- Signal grounds
- Shield drains
- Engine block grounding
- Chassis grounding
Poor grounding can create:
- False sensor readings
- Crank or cam noise
- Communication faults
- Intermittent resets
- Timing instability
Electromagnetic Interference Can Create Hidden Problems
Coil primary current and secondary discharge create electrical noise.
Poor routing can interfere with:
- Crank sensors
- Cam sensors
- Injector wiring
- CAN communication
- Analog sensors
- Data-logging equipment
Keep high-current coil wiring and secondary ignition paths away from sensitive signal wiring.
Use shielding, twisted pairs, and grounding methods only as specified by the ECU or wiring-system manufacturer.
On Evo 4–9 applications using Denso-style coil connectors, JDC's Hideaway harness moves the wiring beneath the mounting plate and routes both leads from the right side of the valve cover. The Tefzel wire, sealed connectors, and protective sheath support a cleaner engine bay without treating appearance as a substitute for proper routing.
JDC "Hideaway" Coil on Plug Wire Harness | Mitsubishi Evo 4-9
Mechanical Fit Does Not Prove Compatibility
A coil that physically fits the plug well is not automatically suitable.
Verify:
- Boot length
- Terminal engagement
- Plug-well sealing
- Bracket rigidity
- Connector clearance
- Heat exposure
- Vibration resistance
- Service access
A conversion bracket should hold each coil securely without crushing the housing, stressing the connector, or trapping excessive heat.
Remote-mounted smart coils with short leads face different vibration and temperature conditions from pencil coils installed directly in the cylinder head.
For Evo 4–9 builders assembling or refreshing a Denso-coil setup, JDC's aluminum mounting plate provides application-specific coil retention and can replace the plate used in many existing Denso-style systems. Coil height still matters because some combinations require spacers for proper mounting.
JDC Aluminum Coil On Plug Mounting Plate | Mitsubishi Evo 4-9
Heat Can Expose Problems That Idle Testing Misses
Some ignition failures appear only after extended boost, track use, or heat soak.
Commissioning should include hot testing because coil temperature affects:
- Current demand
- Internal resistance
- Igniter performance
- Insulation durability
- Misfire behavior
Do not extend dwell automatically when a hot misfire appears. The real cause may be excessive coil temperature, voltage drop, an incorrect plug gap, or a mixture problem.
Coil Energy vs. Spark Duration
Peak advertised voltage is not a complete measure of ignition capability.
The spark plug requires enough voltage to ionize the gap, followed by sufficient stored energy and duration to sustain combustion.
Demand increases with:
- Cylinder pressure
- Boost
- Plug gap
- Electrode wear
- Mixture condition
- Fuel type
Compare documented coil behavior and the actual engine requirement rather than relying on a single marketing voltage.
A Reliable COP Conversion Process
- Diagnose the existing system. Check plugs, gap, wiring, grounds, fuel delivery, timing, and calibration.
- Define the target load. Record boost, fuel, engine speed, cylinder pressure, and intended use.
- Identify the coil type. Confirm smart or dumb operation and any external igniter requirement.
- Verify ECU compatibility. Check output type, channel count, trigger polarity, dwell capability, and voltage compensation.
- Confirm trigger accuracy. Validate crank and cam signals before relying on individual coil control.
- Design the power system. Size wiring, relays, fuses, and grounds for the actual current demand.
- Build the harness correctly. Use proper connectors, strain relief, routing, and shielding where required.
- Complete the mechanical installation. Secure the coils, seal plug wells, and protect the harness from heat and vibration.
- Commission conservatively. Begin with reliable dwell data and verify firing order, base timing, and channel operation.
- Test under heat and load. Monitor misfire, synchronization, voltage, coil temperature, and spark blowout.
Commissioning the Conversion
Before starting the engine:
- Verify firing order with fuel disabled
- Confirm every ignition channel
- Check connector pinout
- Inspect power and ground continuity
- Confirm trigger polarity
After startup:
- Set and verify base timing with a timing light
- Confirm synchronization
- Monitor battery voltage
- Check coil and igniter temperature
- Inspect the harness for movement or heat exposure
Load testing should follow only after stable idle and low-load operation have been confirmed.
Which Ignition Strategy Fits the Use Case?
| Situation | What Changes the Decision | Best Next Step |
|---|---|---|
| Obsolete distributor system | Wear, timing scatter, and parts supply limit reliability | COP can modernize control when the trigger and ECU strategy are engineered correctly |
| Wasted-spark turbo build | Available charge time or spark energy is insufficient at load | Individual coils may provide a better control and charge-time strategy |
| Healthy factory COP engine | No measured ignition limitation exists | Retain the original system or use verified direct replacements |
Street, Track, and Show Priorities
A street ignition system must start cold, survive heat soak, tolerate rain and vibration, and remain serviceable years later.
A track system may accept more frequent inspection in exchange for repeatability under sustained load.
A show build may prioritize harness routing and presentation, but heat, grounding, sealing, and service access still apply.
Mixed-use builds need a clear hierarchy. The primary use should determine coil selection, mounting, wiring protection, and inspection frequency.
Budget for the Complete Conversion
The coil price is only part of the finished system.
Budget for:
- Coils
- Brackets and boots
- Connectors and terminals
- Igniters where required
- Relays and fuses
- Power and ground wiring
- Crank or cam trigger components
- ECU configuration
- Harness fabrication
- Dyno or load testing
A complete system with documented electrical data and support can cost less than repeatedly adapting inexpensive or counterfeit coils.
For 1JZ and 2JZ applications, Haltech's R35-coil conversion kit packages the bracket, coils, connectors, and harness as a coordinated system. It is a useful example of budgeting for the complete conversion rather than comparing coil prices alone.
Common Coil-on-Plug Conversion Mistakes
- Copying dwell tables from a different coil
- Using counterfeit or undocumented coils
- Grounding high-current coils through sensor ground
- Running trigger wiring beside injector or coil power wiring
- Assuming every misfire means the coils are weak
- Ignoring crank and cam synchronization
- Using undersized power or ground wiring
- Testing only at idle
- Extending dwell without monitoring coil temperature
- Choosing coils by appearance rather than electrical compatibility
Questions to Answer Before Buying
- Are the coils smart or dumb?
- What current and dwell data are published?
- Does the ECU provide compatible outputs?
- How should power, logic, and signal grounds be separated?
- Does the engine need a new crank or cam trigger?
- Will the boots seal the plug wells correctly?
- Can the coils survive the mounting temperature?
- Can the tuner verify dwell without overheating the system?
Frequently Asked Questions
Does Coil-on-Plug Add Horsepower?
Not when the original ignition already lights the mixture reliably.
COP can recover power when the existing system misfires or cannot maintain spark under the target cylinder pressure.
Can Any Modern Coil Be Used?
No. Coil electrical behavior, dwell, igniter type, trigger requirements, physical sealing, and heat capacity must match the ECU and engine.
Do Smart Coils Need an Igniter?
Smart coils contain internal igniters, but they still require compatible ECU triggering, power distribution, and grounding.
Should Dwell Be Increased to Fix Spark Blowout?
Not automatically. First check plug gap, voltage, mixture, grounds, coil temperature, and whether the current dwell already reaches the coil’s safe operating range.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| COP is not an automatic power upgrade | It creates value when the current ignition has a measured limitation. |
| Dwell must match the coil | Incorrect charge time can reduce energy or damage coils, igniters, and ECU drivers. |
| Trigger accuracy comes first | Individual coils cannot fire correctly with unstable crank or cam synchronization. |
| Power and grounds are part of ignition performance | Voltage drop and electrical noise can create misfire and sync problems. |
| Mechanical fit does not prove compatibility | Boot sealing, heat, vibration, connector clearance, and service access still matter. |
| Commission under real conditions | Validate timing, temperature, voltage, synchronization, and misfire under heat and load. |
Related JDC Guides
Convert to coil-on-plug ignition when it solves a documented spark-energy, control, packaging, or service problem, then match the coils to the ECU, trigger system, dwell data, wiring, grounding, and operating temperature. Browse our ignition systems collection for complete conversions, coils, harnesses, and supporting components.
