The mounting plate is one of the most noticeable parts of an Evo 4-9 coil-on-plug conversion.
It sits directly on top of the valve cover, positions the coils, controls how much wiring remains visible, and helps define the entire look of the engine bay. Even when the ignition system works perfectly, the wrong plate or harness layout can make the setup feel unfinished.
JDC’s conventional COP plate family and the carbon-fiber Show-Series plate approach the same job in different ways.
The conventional plate keeps a more familiar, accessible layout and offers several material and finish options. The Show-Series plate is built around recessed Denso coils and can be paired with a hideaway-style harness for a cleaner, wire-tucked presentation.
Neither option is automatically better. The right choice depends on the coils being used, how much wiring you want visible, how often the system needs to be serviced, and what role the engine bay plays in the overall build.
Start With the Coil Family, Not the Plate Material
The easiest mistake is choosing the plate based on appearance and trying to make the rest of the ignition system fit around it.
A COP mounting plate does more than cover the valve cover. It locates the coils, sets their installed height, positions the fasteners, and influences where the connectors and harness can run.
Different coil families use different body shapes, connector positions, mounting points, and overall dimensions. A plate made for Denso coils should not be assumed to work with Hitachi GT-R coils simply because both are used in coil-on-plug conversions.
The Show-Series listing is specifically built around Denso coils and excludes GT-R-style coils. That makes the decision simple: choose the coil family first, then select the plate, harness, spacers, and hardware designed to work with it.
Trying to force the wrong coil into the wrong plate can create poor seating, connector interference, incorrect height, or a setup that becomes difficult to service later.
Standard and Show-Series COP Plate Comparison
| Feature | Conventional Plate Family | Show-Series Carbon Plate |
|---|---|---|
| Overall appearance | Traditional exposed-coil layout | Recessed coils sitting closer to flush with the plate |
| Material choices | Anodized aluminum, carbon, or Grade 5 titanium depending on the selected option | Solid carbon-fiber plate options |
| Harness routing | Straightforward, visible, service-friendly routing | Standard routing or hideaway-oriented routing beneath the plate |
| Coil compatibility | Depends on the exact selected JDC/Denso application | Denso coils only; not designed for Hitachi GT-R coils |
| Best fit | Owners who value material choice, easy inspection, and familiar routing | Owners building a cleaner show-style or wire-tucked engine bay |
| What may be separate | Coils, harness, spacers, and hardware depending on the listing | Mounting hardware and compatible hideaway harness |
Why the Conventional Plate Still Makes Sense

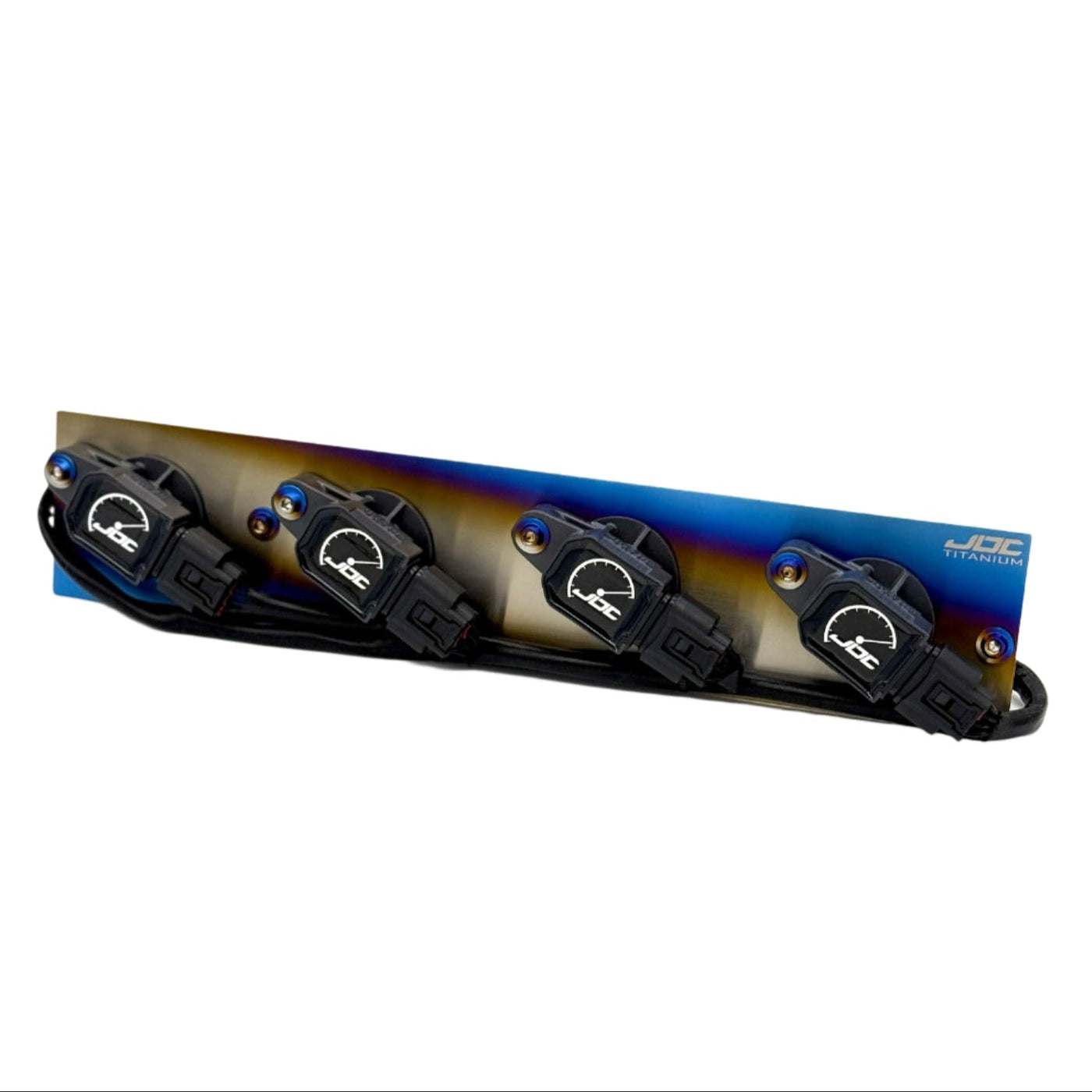

The JDC Coil-on-Plug Mounting Plate for Evo 4-9 follows the more familiar COP layout used on many complete Denso-based systems.
It is the practical choice for owners who want direct coil access, factory harness routing, or a wider selection of materials and finishes.
Depending on the product options, the conventional plate family may include anodized aluminum, carbon-fiber, and Grade 5 titanium selections. That gives the owner more freedom to coordinate the plate with the rest of the engine bay.
An anodized aluminum plate can work well in a clean street build. Carbon can connect to other composite pieces. Titanium can become a central part of a more detailed engine-bay theme.
The conventional layout is also easier to inspect at a glance. The coils, connectors, and harness remain more visible, which can make routine service or troubleshooting more straightforward.
JDC Coil-on-Plug Mounting Plate for Evo 4-9
What Makes the Show-Series Plate Different
The JDC Show-Series Carbon COP Mounting Plate for Evo 4-9 changes the visual layout rather than just changing the material.
Its recessed coil locations allow compatible Denso coils to sit closer to flush with the top surface. This reduces the amount of coil body standing above the plate and gives the valve-cover area a lower, cleaner appearance.
That difference is especially noticeable in a detailed engine bay where the COP system becomes one of the main focal points.
The plate can make the ignition system feel more integrated into the valve cover rather than sitting on top of it. In a show-oriented build, that lower visual profile can help carbon, titanium hardware, and surrounding engine-bay details feel more connected.
JDC Show-Series Carbon COP Mounting Plate for Evo 4-9
Standard Show-Series vs. Hideaway Show-Series
The Show-Series family includes two different routing ideas.
The standard Show-Series plate keeps a more direct and accessible harness arrangement. It provides the recessed Denso-coil look without requiring the most aggressive wire tuck.
The hideaway version is intended for owners who want more of the harness routed beneath the plate and behind the valve cover. Slots and additional coverage help support that cleaner presentation.
To complete that layout properly, the JDC Hideaway COP Wire Harness for Evo 4-9 should be treated as part of the system rather than an optional visual detail.
Choosing the hideaway plate without planning the matching harness route can leave the owner with a plate that looks right but wiring that has nowhere clean or safe to go.
JDC Hideaway COP Wire Harness for Evo 4-9
Hardware Is a Separate Part of the Decision
A finished COP installation also depends on the correct mounting hardware.
The JDC Titanium COP Mounting Hardware for Evo 4-9 can add a coordinated finish around the plate, but it remains a separate selection.
That matters because a plate-only listing should never be assumed to include every fastener, spacer, or washer required for the final installation.
Before ordering, confirm which pieces are included with the selected plate and which need to be purchased separately. The correct hardware must match the plate thickness, coil setup, spacer arrangement, and mounting points.
Appearance still comes after fitment. Titanium hardware can sharpen the finished look, but only when the thread, length, seat, and clamping requirements are correct.
JDC Titanium COP Mounting Hardware for Evo 4-9
Carbon Fiber and Titanium Need Care During Installation
Premium finishes can be damaged before the car ever leaves the garage.
Gloss carbon shows fingerprints, fine scratches, and tool marks easily. Anodized titanium can also be scratched by dirty sockets, slipping tools, or washers dragged across the surface.
Start fasteners by hand and make sure they engage cleanly before using a tool. Use clean, correctly sized sockets or bits. Keep loose tools away from the plate, and avoid placing hardware directly on finished carbon.
Carbon mounting points should not be crushed by excessive torque. Follow the product instructions and use the correct washers, spacers, and mounting sequence.
The goal is to secure the system without concentrating unnecessary load around the mounting holes.
A Cleaner Bay Still Needs to Be Serviceable
Wire tucking can improve presentation, but it should never make the ignition system impossible to inspect.
The coils, spark plugs, and connectors will eventually need service. Harness slack should allow components to be removed without pulling directly on the terminals. Wiring must stay away from exhaust heat, sharp edges, and areas where vibration can slowly damage the insulation.
A hidden connector that cannot be checked is not automatically an improvement.
Photograph the final routing and keep the harness pinout or wiring documentation with the car. If the setup ever develops a misfire or electrical issue, those records can save a great deal of time.
A well-finished COP conversion should look clean with the hood open and still make sense when a technician needs to work on it.
What to Verify Before Ordering
- Choose Denso or Hitachi GT-R coils before selecting the plate.
- Confirm whether the listing includes only the plate or also includes hardware, coils, or a harness.
- Decide between conventional, standard Show-Series, and hideaway Show-Series routing.
- Match the plate to the correct harness, spacers, and mounting hardware.
- Check that the final routing preserves heat clearance and plug access.
- Protect carbon and anodized titanium during assembly.
- Compare the cost of the complete system rather than the plate alone.
The final project cost may include coils, wiring, hardware, spacers, installation supplies, tuning, and professional labor. A lower plate price does not necessarily mean a lower total conversion cost.
Common Mistakes
- Ordering the Show-Series plate for Hitachi GT-R coils
- Assuming a plate-only listing includes coils, hardware, and a harness
- Choosing the hideaway version without planning the matching harness route
- Overtightening carbon-fiber mounting points
- Tucking wiring where heat, movement, or damage cannot be inspected
- Selecting the plate before deciding which coil family the system will use
- Focusing on the finish while ignoring future plug and coil access
Frequently Asked Questions
Does the Show-Series plate include mounting hardware?
The source listing states that mounting hardware is not included. Compatible stainless or titanium hardware should be selected separately for the exact plate and coil setup.
Can the standard Show-Series plate use a normal harness?
It is intended as the more direct visual upgrade within the Show-Series family. The hideaway version is the one designed around JDC’s wire-tucked harness routing.
Can the Show-Series plate be used with GT-R coils?
No. The Show-Series plate is identified for Denso coils and is not designed for Hitachi GT-R coils.
Is the hideaway plate harder to service?
It can require more planning because more of the harness is routed beneath the plate. A careful installation should still preserve enough slack and access for coil and spark-plug service.
Choose the Layout Before Choosing the Finish
The conventional plate is the more flexible and familiar option. It offers broader material choices, visible routing, and straightforward access.
The Show-Series plate is for owners who want the Denso coils to sit closer to flush and become part of a cleaner engine-bay presentation. The hideaway version takes that idea further by routing the compatible harness beneath the plate and behind the valve cover.
The best-looking setup is the one where every part belongs together.
Coils, plate, harness, spacers, hardware, heat clearance, and service access should be planned as one ignition system—not purchased as unrelated visual pieces.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| Choose the coil family first | The plate, harness, spacers, and hardware must be selected around the exact coil design. |
| The conventional plate favors flexibility | It offers familiar routing, easier inspection, and several possible material directions. |
| The Show-Series plate changes coil presentation | Compatible Denso coils sit closer to flush for a cleaner valve-cover layout. |
| Hideaway routing needs a matching plan | The hideaway plate should be paired with the appropriate harness and installation layout. |
| Plate-only does not mean complete system | Hardware, coils, harnesses, and spacers may need to be ordered separately. |
| Service access still matters | A clean bay should still allow coils, plugs, connectors, and wiring to be inspected and removed. |
