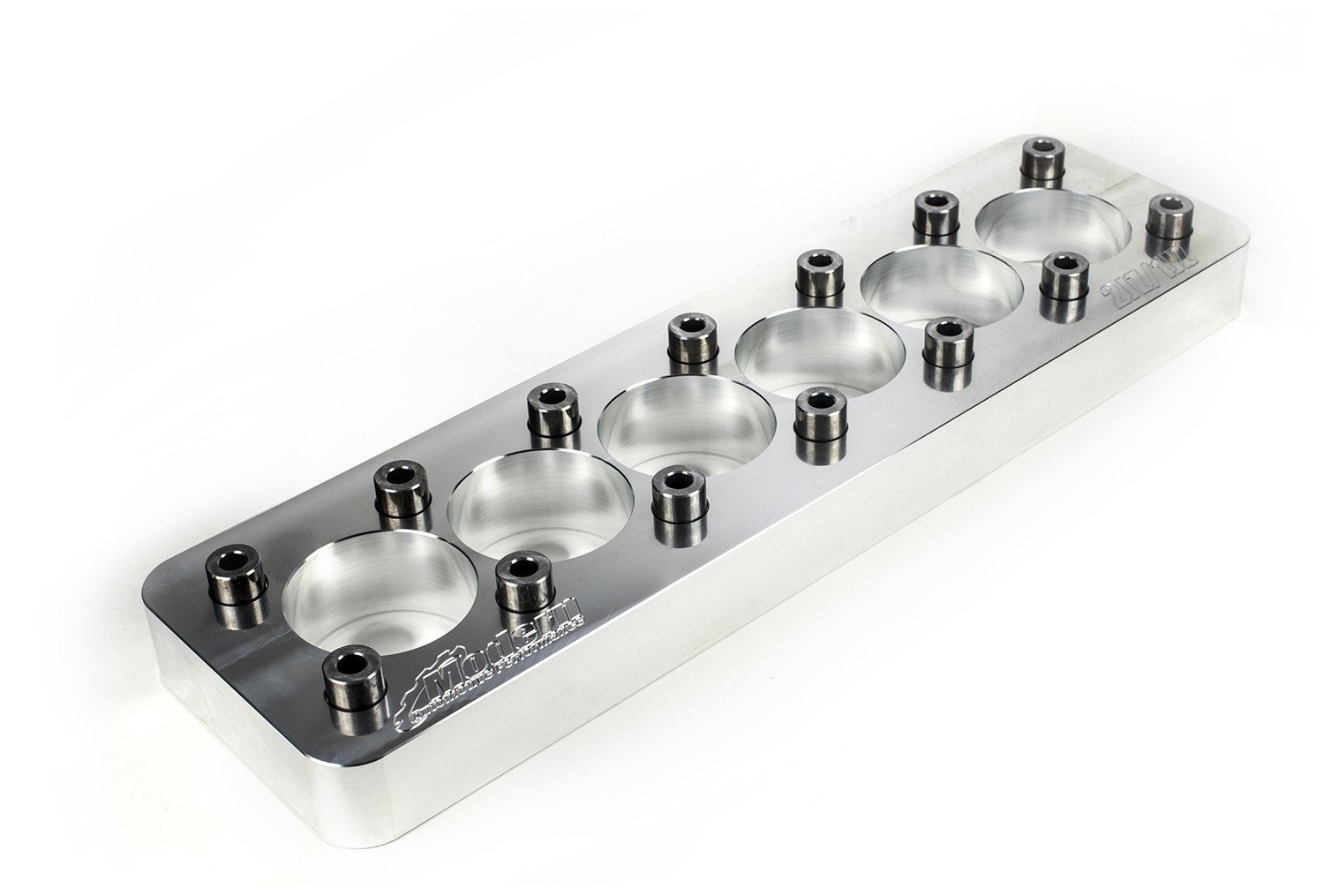

MAP 1JZ / 2JZ Torque Plate (Multiple Toyota Fitments)
SKU:MAP 2JZ-TQP
Precio de oferta$ 449.99Precio habitual
$ 499.99
Los gastos de envío se calculan en la pantalla de pagos.
Order and get 900 reward points
Earn points by signing up for our rewards program
MAP 1JZ / 2JZ Torque Plate (Multiple Toyota Fitments)
Precio de oferta$ 449.99Precio habitual
$ 499.99
Toyota 1JZ / 2JZ Torque Plate
A torque plate is essential during any boring or honing process. When you torque a head down on the block, the pressure from the bolts will cause the cylinder bore to slightly deform. A torque plate takes the place of the head during machining to simulate any distortion that will be caused when the head studs/bolts are tightened. Using a torque plate while boring and/or honing removes any bore irregularities and enables a true cylindrical shape, while allowing the machine operator access to the bores.
Features
- 2" thick billet aluminum
- DOM steel spacers allow for proper head stud depth and penetration into the block
- Suitable for bore sizes up to 89mm
- Compatible with stock or 1/2" head studs
- 100% Made in the USA
Applications
- 1JZGTE Engines
- 2JZGTE Engines
- 2JZGE Engines
What's In The Box?
- (1) Torque Plate
- (14) Stand Offs
Warranty
- Manufacturer Standard Warranty
