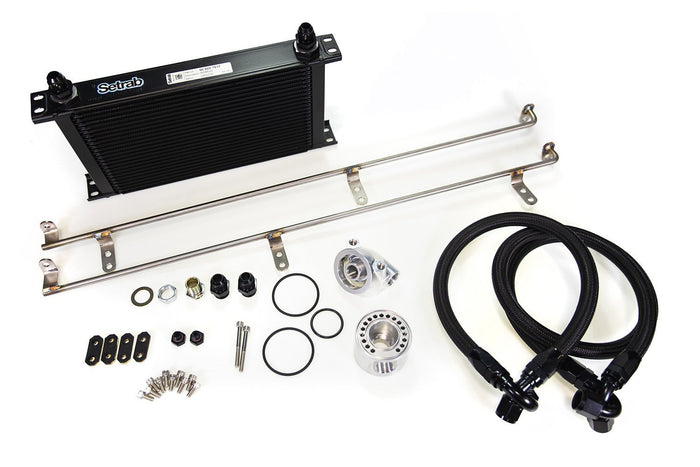

MAP Performance Oil Cooler Kit (10th Gen Civic)

2016-2017 Civic 1.5T Oil Cooler Kit By MAPerformance

Not many things can kill a motor as fast as overly high oil temps, and we are not alone in finding that the stock Civic X 1.5T system is not up to the task. From lapping days to daily driving, and everything in between our MAPerformance Civic X 1.5T Oil cooler kit will do everything you need and more!

When it came time to design the MAPerformance Civic X 1.5T Oil Cooler kit we were not happy with any of the filter sandwich plates on the market, as they all spaced the oil filter so far down that it became the lowest point on the car. In doing so it would no longer clear the factory under-tray, causing to you to either have to trim it, or space it. With that in mind, we designed our two-piece filter adapter to not only to fit as we would like but also to function perfectly providing nearly zero restrictions or pressure drop in the system. Due to the lack of factory oil pressure monitoring, we felt it was very important to add the 1/8" NPT port to the side of the housing, as to provide the key information of oil temperature, pressure, or both depending on the sensor utilized.

To mount the cooler, we designed our MAPerformance 304 Stainless hand Tig welded bracket produced right here at our USA facility. This bracket not only looks stylish for many years but is also a 100% bolt-on solution meaning no cutting or trimming is required to any part of your car(You do remove a few small pieces of plastic) keeping the installation as easy as can be!

For the cooler, we selected one of the largest SETRAB cores that we could fit, and keep in a reasonable budget. SETRAB has been an industry leader in the cooling industry for generations, and there is no better fit! There were multiple reasons for this decision, the obvious being that it would pull as much heat out of the system as possible and cool the oil to reasonable temperatures. The secondary reasoning is that the L15B7 has a very small oil capacity and being able to add nearly a full quart to the system will help in both temperature and also helping keep the oil pressure stable at all times!

To round it all off, the lines we choose to use are USA Made SQUIRRELLY PERFORMANCE lightweight braided hose, and their hand-assembled fittings to assure you get proper hoses every time!

Benefits

• 100% Direct Fit
• Made in the USA
• Increased Oil Capacity
• Increased Oil Cooling
• Maintains Ground clearance for oil cooler

Warranty

• MAP Lifetime Warranty
