ACL BMW M20/M50/M52/M54-1919CC 80.0mm Bore 66.0mm Stroke STD + .001in Clearance Conrod Bearing Set (ACL6B1490HX-STD)

ACL6B1490HX-STD

$ 172.03
<p>%E3%81%93%E3%81%AE%E5%95%86%E5%93%81%E3%82%92%E8%B3%BC%E5%85%A5%E3%81%99%E3%82%8B%E3%81%A8%E3%80%81[points_amount]%20%E7%8D%B2%E5%BE%97%E3%81%A7%E3%81%8D%E3%81%BE%E3%81%99%E3%80%82</p>

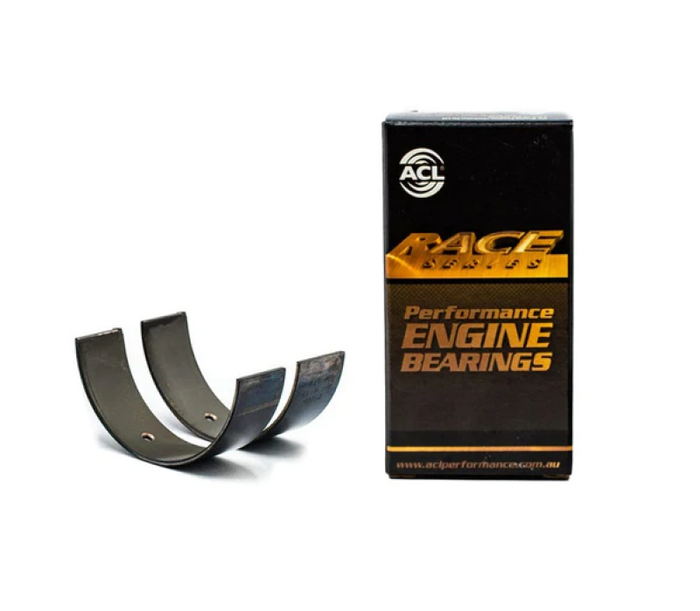

ACL BMW M20/M50/M52/M54-1919CC 80.0mm Bore 66.0mm Stroke STD + .001in Clearance Conrod Bearing Set

80.0mm Bore 66.0mm Stroke STD + .001in Clearance Conrod Bearing Set by ACL.

Features

  • Size: STD, .025, .25, .50
  • Oil Clearance: Standard
  • Half Type: Identical Halves
  • Material: Tri-metal Hardened Steel Backs
  • Min Std Shaft Size: 1.7707in / 44.975 mm
  • Max Std Shaft Size: 1.7713in / 44.991 mm
  • Min Std Tunnel Size: 1.8898in / 48.000 mm
  • Max Std Tunnel Size: 1.8904in / 48.016 mm

Applications

  • 2003 - 2015 BMW Z4

What's Included

  • 1 - 80.0mm Bore 66.0mm Stroke STD + .001in Clearance Conrod Bearing Set

Product Details

  • Manufacturer part number: 6B1490HX-STD
  • Manufacturers Standard Warranty

1 - 80.0mm Bore 66.0mm Stroke STD + .001in Clearance Conrod Bearing Set

ACL

ACL (Atlantic Components Limited) is a trusted brand renowned for its high-performance engine bearings and components. With a focus on precision engineering and durability, ACL products are designed to withstand extreme conditions and deliver reliable performance in motorsport and everyday applications. Known for their Race Series bearings, ACL is a go-to choice for enthusiasts and professionals seeking optimal engine performance and longevity.
