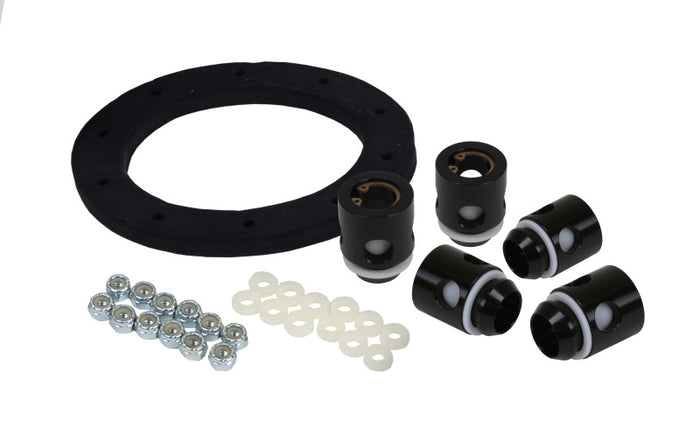

Complementing the new Apex Phantom, Aeromotive also releases its proprietary new Phantom Bladder Baffle, which literally opens and closes the door on Phantom flow control technology. While providing a continuous, high fuel flow into the Phantom Baffle using the Apex Phantom is awesome, it?s critical to allow a large volume of fuel to flow into the baffle naturally from the surrounding tank. It is also important to keep it there. The Phantom Bladder Baffle can ensure this. Installed in the inlet passages at the base of the Phantom Bladder, the new Phantom Bladder Baffle increases the flow area into the Bladder to promote rapid fuel recovery from the surrounding tank while deploying a PTFE check ball that acts to keep that critical fuel in the bladder, preventing it from escaping during hard acceleration, cornering, and off-angle vehicle maneuvers. Aeromotive?s Phantom Bladder Baffle is constructed with CNC-machined billet aluminum valve bodies, which are then anodized and loaded with a PTFE check ball and locked in to the Phantom bladder with a PTFE retaining washer. The Phantom Bladder Baffle is designed for durability and is fully compatible with gasoline and ethanol fuels. It requires no special tools and may be used in any existing or new Phantom bladder, with the Apex Phantom, or as a stand-alone solution to slosh control. Aeromotive?s Phantom Bladder Baffle is available in sets of 4 (P/N 18020) for the standard Phantom Bladder used in the Phantom 200 and Phantom 340 pump kits, or in sets of 5 (P/N 18021) for the larger Phantom Bladder used in the Phantom Flex and Phantom Dual.
Installation Instructions
Installation Instructions

Aeromotive Product Warranty, Policy and Procedure: Retail

All Aeromotive products sold are warranted free from defects in materials and workmanship for a period of one year from the original date of purchase. No warranty claim will be valid without authentic, dated proof of purchase. Only sales from authorized dealers qualify for warranty claims.

This warranty is to the original retail purchaser and none other and is available directly from Aeromotive and not through any point of distribution or purchase.

If a defect is suspected, the retail purchaser must contact Aeromotive directly to discuss the problem, possible solutions and obtain a Return Goods Authorization (RGA), if deemed necessary by the company. All returns must be shipped freight pre-paid to the company and with valid RGA before they will be processed.

Aeromotive will examine any product returned with proper authorization to determine if the failure resulted from a defect or from abuse, improper installation, misapplication or alteration. Aeromotive will then, at its sole discretion return, repair or replace the product.

Limitation of Remedies

If any Aeromotive product is determined defective, buyer’s exclusive remedy is limited in value to the sale price of the good. In no event shall Aeromotive be liable for incidental or consequential damages. Aeromotive fuel system components are not legal for sale or use on emission controlled motor vehicles.

The telephone number to contact Aeromotive Returns and Repairs for help with a warranty claim is 913-808-2376, then dial option 3. Be certain to have the part in question, along with proof of purchase and a pen and paper when you call.

Aeromotive Product Warranty, Policy and Procedure: Distributor

Any product returned for warranty by a distributor, retailer or party that is NOT the actual retail purchaser, requires proper RGA and authentic proof of customer purchase. Authorized returns that do qualify as “in warranty and defective” will NOT be processed for credit, but handled as any other warranty return, where the product will be repaired if possible or replaced with rebuilt or new merchandise of equal performance and value. Returned product NOT “defective” or NOT “in warranty” will be destroyed or returned as-is, by distributor request.

New product returns for stock adjustment are allowed annually. All returned merchandise requires advance approval from Aeromotive along with the assigned RGA number. All returns for stock adjustment must be in perfect condition and if above 5% of annual sales orders, are subject to a 15% restocking fee. All returns will be for account credit only. Aeromotive does not make cash refunds.

Aeromotive

Aeromotive is a leading brand in high-performance fuel systems, delivering cutting-edge solutions for automotive enthusiasts and racers. Known for precision engineering and exceptional reliability, Aeromotive offers a wide range of products, including fuel pumps, regulators, and complete fuel systems. Designed to handle the demands of high-horsepower applications, Aeromotive products ensure consistent fuel delivery and unmatched performance, making them a trusted choice for street and track builds alike.

View More Aeromotive Products
