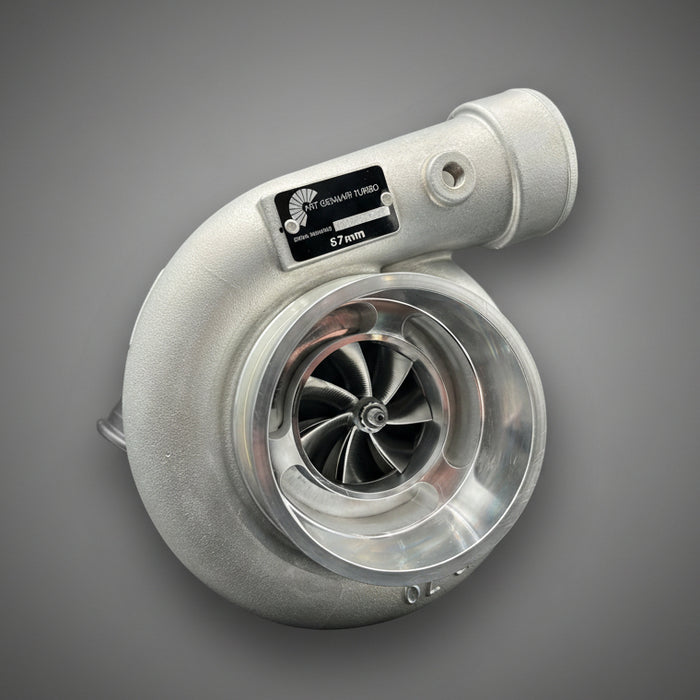

AGT 57mm "LE" Full Frame Turbocharger

Finally moving our 57mm into the Full Frame world!

This Turbo features our tried and true 57LE compressor wheel from the evo line up! Now with options for 2 different turbine wheel sizes and 2 different Compressor housing sizes. Along with a long list of V-band, T3, and T4 turbine housing options. While still retaining the same exact fitment and external dimensions as our 62mm and 68mm Full framer turbos. And Also a smaller fitment as well for tight engine bays and turbo kits, Great for 500 to 700hp.

The .70AR Compressor housing External Dimensions are the same as the T04S 35R turbos (4"inch inlet,2,5"outlet) and PTE6262-6466-6766 with S cover.

The .60AR Compressor housing external dimensions are the same as the T04E, 30R turbos.

All AGT Turbochargers are Built to order and subject to a standard 6 week build time. Build times may vary.

  • Flow rate: 65 lbs/min
  • Compressor Housing: .70AR 4" inch anti surge inlet, 2.5" outlet or .60AR 4" inlet/2" inlet
  • Compressor wheel: 57x78mm "LE" 7 blade, Billet
  • Turbine wheel: High Flow 62mm or 55mm
  • Bearing Type: Dual Ball bearing
  • Turbine Housing: Have Multiple other V band housing sizes, T3 and T4, message us with your configuration to confirm fitment!
