AMS Performance Alpha Factory Replacement Engine Oil Cooler (09+ Nissan GT-R R35)

AMS Performance Alpha Factory Replacement Engine Oil Cooler (09+ Nissan GT-R R35)

The stock R35 GT-R oil cooler (p/n 21305-JF02B) retails at an astonishing $12,169.74! When we saw that price we knew we had to create a solution. As usual, our engineering team had some unique ideas to make an oil cooler upgrade that was easy to install, more efficient, and most importantly affordable for our customers.

Instead of designing complex brackets, fittings, replacement lines, and hardware or requiring modification of factory components we decided to make our oil cooler a true bolt-in affair. By choosing a simpler approach we save you the worry about extra components that can corrode or leak. The Alpha Oil Cooler core uses all of the factory brackets, mounts, lines, and shrouds (no trimming required) exactly like the factory oil cooler core. This removes the added complexity of other alternatives saving you time and money.

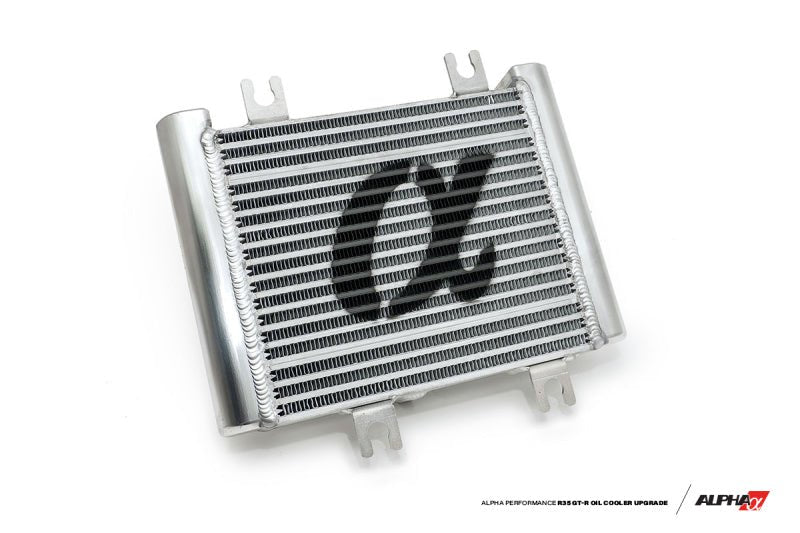

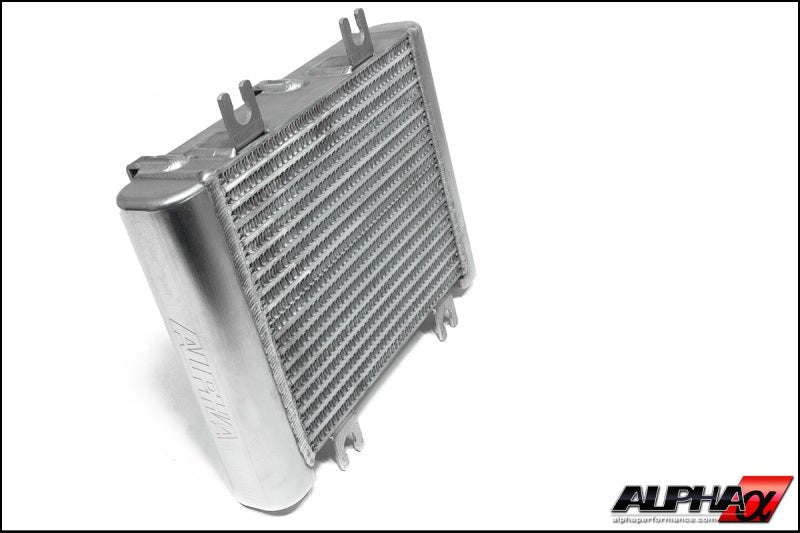

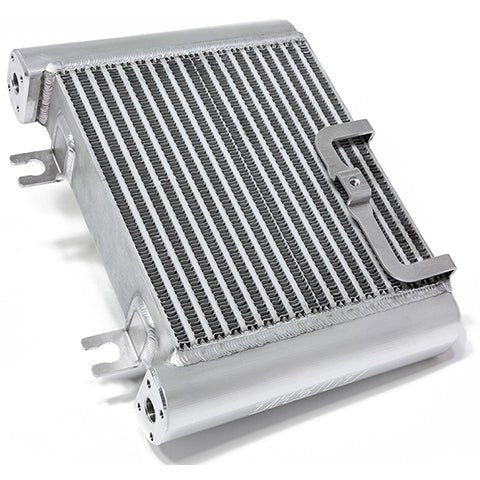

Instead of using the tube and fin style of the factory cooler and other upgrades on the market we chose a bar and plate design with a tubular design. Turbulators increase the rate of flow and boost heat transfer netting better cooling of the oil. To further improve cooling our billet aluminum end tanks include a high temp foam making a proper seal to direct all of the air from the ducting through the core, unlike the factory design. In addition, we increased the thickness of our core from 50 to 61mm boosting cooling and oil capacity. This all adds up to an optimized cooler offering you greater efficiency.

Features

• Billet Aluminum Endtanks
• Uses OEM mounting, lines, and shroud for a simple, true bolt-in solution
• Includes everything needed for installation

Benefits

• Larger, more efficient core design
• Foam seal optimizes airflow through ducting
• Cost-effective solution when replacing the factory oil cooler

Applications

• 2009-2021 Nissan GT-R

What's In The Box?

• 1 - Oil Cooler Upgrade

Warranty

• AMS Performance's Standard Limited Warranty
