QL-38 Quik-Latch Hood Pin Kit (Universal)

QL-38 Quik-Latch Hood Pin Kit

Designed with the import performance market in mind, the QL-38 series hood pin kits deliver the same push button function that you've come to expect from Quik-Latch Products while retaining serious holding ability that is required of hood pins.  The reduced physical presence of the 38 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.

You've spent thousands upgrading your car's mechanicals, electrical, body, and paint.  Why install a hood pin made of substandard materials that could rust after just a few years? Go with Quik-Latch hood pins and make the finishing touch to your project car representative of the pride you have in your ride!

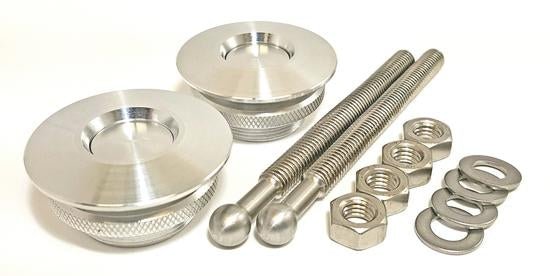

What's In the box?

• (2) Quik-Latch push buttons
• (2) Latch mounting hardware
• (2) Keys

General Specifications:

Materials:

• 6061 T6 Aluminum / 303 Stainless Steel

Holding Force:

• 500 lbs static pull force per latch

Weight of Kit:

• 3.2 ounces

Overall Height of latch:

• .750 inch (19mm)

Height Below Mounting Flange:

• .75 inch (19mm)

OD of the latch mounting flange:

• 1.75 inch (44.5mm)

Hole size required to mount latch:

• 1.25 inch (32mm)

Pin dimensions:

• 3/8 inch ball with 3/8 x 24" thread

Retaining Ring:

• 1.5 inch (38mm) OD x .25 inch (6.4mm) thickness

Minimum distance from top of mounting surface to mounting point:

• 1.125 inch  (28.50 mm)

Maximum distance from top of mounting surface to mounting point:

• 3.50 inch (88 mm)

Maximum mounting angle:

• 18 degrees

Distance needed to engage pin into latch:

• .687 inch (17.5mm)
