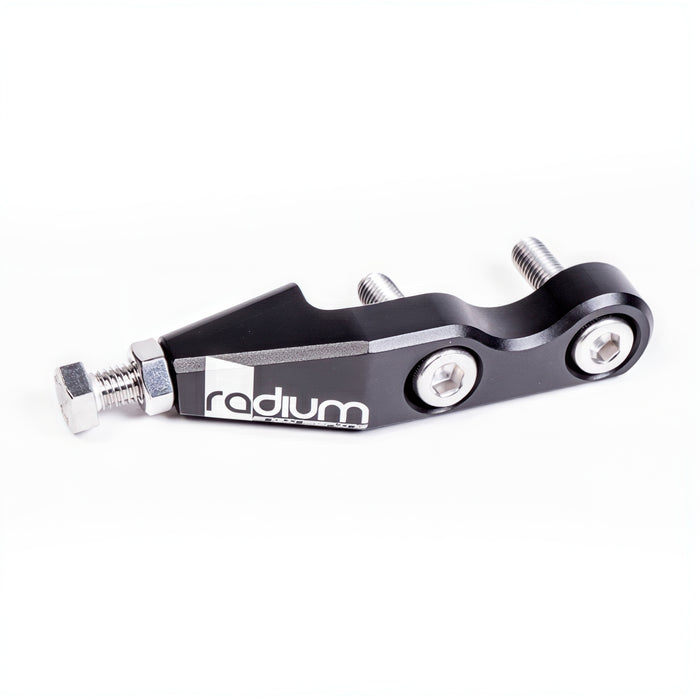

Radium Engineering Clutch Fork Stop (Evo 7/8/9/X)

Radium Engineering Clutch Fork Stop (Evo 7/8/9/X)

The Radium Engineering clutch fork return stop addresses a common problem on the Mitsubishi EVO pull-type clutch slave cylinder. During hard shifting and fast clutch pedal operation, the clutch fork can return too far and cause the throw-out bearing to become unclipped from the clutch fork. This results in expensive transmission removal to fix. The Radium clutch return stop prevents the fork from over-traveling, eliminating a throw-out bearing issue. Inexpensive insurance to protect your clutch. The clutch stop is multi-axis CNC machined in order to position the hex bolt precisely square with the clutch fork.

20-0262 Benefits

• Prevents the fork from over-traveling
• Eliminates throw-out bearing issue
• Inexpensive insurance to protect your clutch

Applications

• 03-05 Mitsubishi Evolution VIII with 5-Speed and 6-Speed transmissions
• 06 Mitsubishi Evolution IX with 5-Speed and 6-Speed transmissions
• 08-15 Evolution X with 5-Speed manual transmission

What's in the box?

• CNC machined/anodized clutch fork stop
• Stainless steel adjustment screw and lock nut
• Stainless steel mounting bolts
