Radium Engineering Fuel Rail Kit (350z/370z)

Radium Engineering Fuel Rail Kit (350z/370z)

The fuel rails are machined from 6061 aluminum and anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. Each rail has four 8AN ORB ports (2 end ports and 2 bottom ports). The fuel rail features 14mm injector bores and is compatible with the OEM injectors and any aftermarket injectors with OEM VQ fitment.

Available with optional plumbing kits (20-0468 for VQ35DE and 20-0469 for VQ35HR/VQ37VHR). These kits permit a bolt-on, plug and play affair for their respective engines.

Features

• Machined from 6061 aluminum and anodized black
• Compatible with all popular fuel types including E85
• Manufactured with a large internal bore to support all necessary engine power requirements
• Each rail has four 8AN ORB ports (2 end ports and 2 bottom ports)
• Supports 14mm injector bores - compatible with the OEM injectors and any injectors with OEM VQ fitment
• The fuel rails mount with stainless steel brackets and hardware
• The unique mounts permit fitment with all VQ engines
• The OEM injector clips can be reused for the VQ35DE and VQ35HR
• Easy to add fuel system accessories such as a pressure transducer, fuel pulse dampers, etc.
• Opportunity to plumb the fuel rails in several different configurations

Please Note: The Radium Engineering fuel rails have been confirmed to be compatible with the VQ35DE, VQ35HR, and VQ37VHR engine. However, there are other V6 Nissan VQ variations that are very similar. Because of the OEM intake manifold mounting bosses, two Radium 14-0150 8AN ORB plugs must be used in 1 of each of the center ports for VQ35DE engines ONLY.

Applications

• Nissan VQ35DE
• Nissan VQ35HR
• Nissan VQ37VHR

What's In The Box?

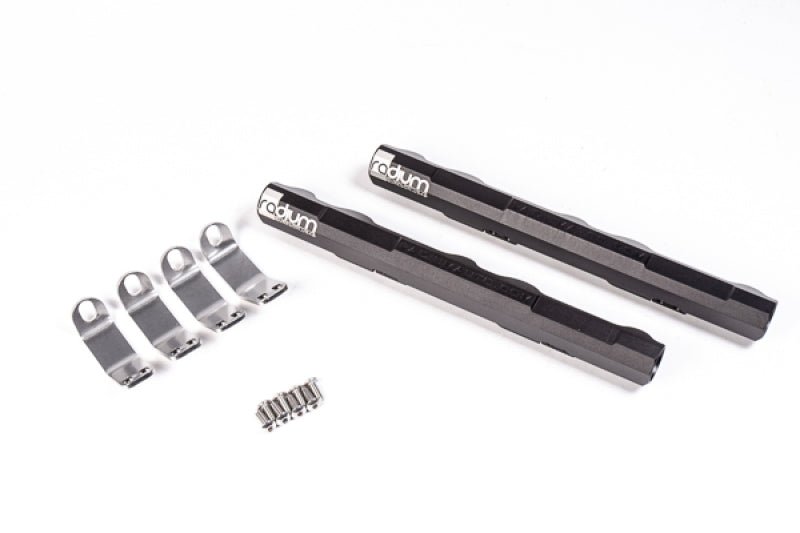

• 2 - Nissan VQ Fuel Rails
• Mounting Brackets and Hardware
• OPTIONAL - Plumbing Kit
• OPTIONAL - Fuel Pulse Damper Adapter

References

• Installation Instructions

Warranty

• Manufacturer Standard Warranty
