Wagner Tuning Intercooler Kit
The high-performance intercooler has the following core dimension (530mm x 318mm x 100mm) and thus offers a 19% larger cooling surface and 70% more charge air volume compared to the original intercooler. The newly developed competition core supports a very high ratio of airflow and is also very light. The weight of the complete intercooler is only 10,3kg. The end tanks of the intercooler are made of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles inside inlet, providing for a uniform filling of the intercooler.
The stock click connections have been eliminated and increased to a connection diameter of 70mm for in- and outlet. The result is excellent cooling properties with minimum backpressure. So this kit is just the right thing for racing. It is mounted to the original mounting points and is easy to perform (real plug & play). Optimum cooling of the charged air with a clear increase in performance!
Features:
- Made of cast aluminum
- Optimum cooling of the charged air with a clear increase in performance
Benefits:
- 19% larger cooling surface and 70% more charge air volume
Applications:
- 2008-2015 Mitsubishi Evo X

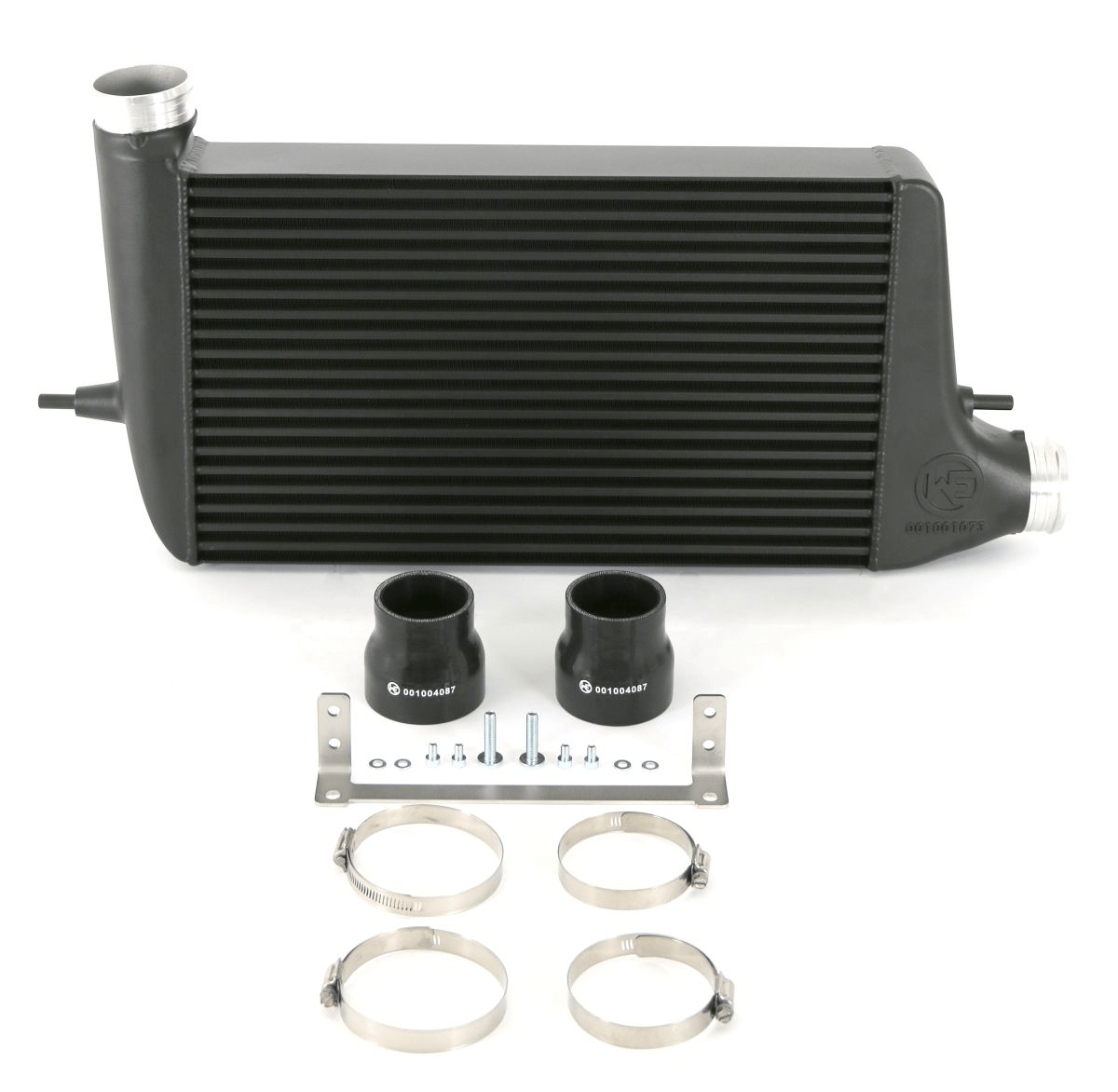

What's In The Box?
- 1 - Intercooler painted black
- 2 - Silicone hoses
- 1 - Mounting material
References
Warranty
- Manufacturer Standard Warranty.
