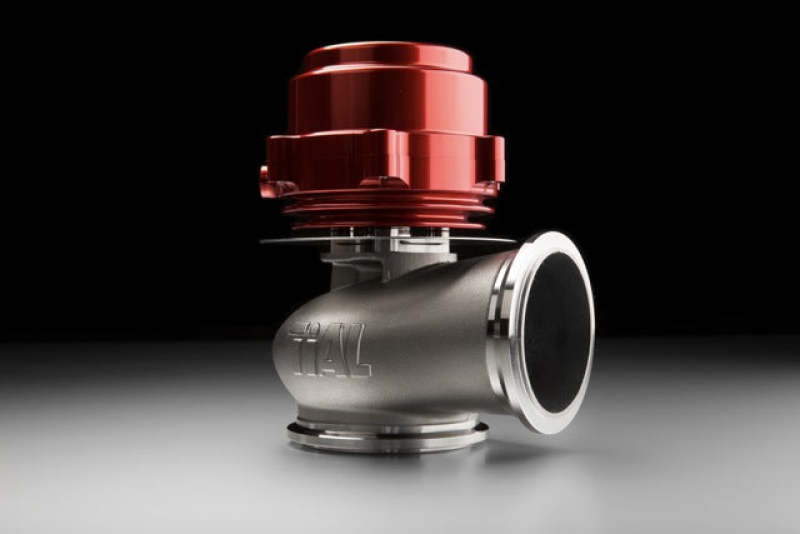

When a driver closes the throttle while the turbocharger is still producing airflow, pressure builds in the charge piping between the compressor and throttle plate.
A correctly sized and controlled valve opens during that transition, giving the trapped air another path and reducing the risk of compressor surge.
The two most common solutions are:
- A blow-off valve that vents air into the atmosphere
- A bypass or diverter valve that recirculates air into the turbo inlet
Both can perform the same basic pressure-relief function. The correct choice depends on the engine-management strategy, airflow measurement, valve capacity, factory controls, turbocharger, and intended use.
Sound should be a secondary consideration. A valve that makes the desired noise but leaks under boost or disrupts fueling is not a successful upgrade.
Blow-Off, Bypass, and Dual-Port Valves Compared
| Valve Type | How It Handles Airflow | What to Verify |
|---|---|---|
| Atmospheric blow-off valve | Releases compressed charge air into the atmosphere | ECU compatibility, fueling behavior, valve flow, and local requirements |
| Bypass or diverter valve | Returns compressed air to the turbo inlet | Recirculation routing, hose condition, inlet placement, and valve capacity |
| Dual-port valve | Splits discharge between atmosphere and recirculation | Adjustment range, fueling stability, sealing, and application support |
| Electronic compressor-bypass system | Uses ECU-controlled or turbo-integrated pressure management | Torque-management logic, diagnostic monitoring, wiring, and calibration |
What Happens When the Throttle Closes?
During boost, the turbocharger continues spinning and moving air. When the throttle plate closes during a shift or lift event, forward airflow into the engine drops suddenly.
The compressed air in the intercooler and charge piping needs somewhere to go.
Without an effective relief path, pressure waves can move back toward the compressor. Depending on the operating point, this can disturb airflow through the compressor and contribute to surge.
The valve should:
- Remain sealed during intended boost
- Open quickly during the designed throttle transition
- Flow enough air for the turbo and charge volume
- Close predictably as the system returns to load
Why Metered Air Matters
Many factory turbocharged vehicles use a mass-airflow sensor positioned before the turbocharger.
When the ECU has already measured that air, it expects the air to remain in the system. Venting it into the atmosphere can briefly create a mismatch between calculated airflow and the air that actually reaches the engine.
Possible symptoms include:
- Rich shifts
- Hesitation
- Unstable idle
- Stalling
- Fuel-trim changes
- Poor transient response
A recirculating bypass valve usually keeps that measured air inside the intake system, making it the safer starting point for many MAF-based factory applications.
For compatible 2015–2023 Mustang 2.3L EcoBoost and listed 3.0L Raptor applications, the GFB DV+ is a chassis-specific diverter-valve option that keeps the selection focused on factory-style pressure management rather than atmospheric sound alone. Confirm the exact engine, model year, factory valve, and ECU strategy before ordering.
Speed-Density Systems Can Behave Differently
A speed-density system estimates airflow using inputs such as manifold pressure, temperature, engine speed, and volumetric-efficiency data rather than relying entirely on a pre-turbo MAF sensor.
An atmospheric valve may be more compatible with a properly calibrated speed-density system because the ECU is not necessarily accounting for the discharged air in the same way.
That does not mean every speed-density vehicle can use any atmospheric valve without testing.
Valve response, calibration, idle behavior, throttle strategy, and boost-control logic still matter.
Hybrid Load Strategies Need Application-Specific Guidance
Some vehicles combine MAF, manifold-pressure, throttle, and model-based calculations.
Modern ECUs may also monitor the factory diverter valve and coordinate it with:
- Electronic throttle control
- Torque management
- Wastegate control
- Traction control
- Overrun strategy
Replacing an electronically controlled factory valve with a purely mechanical component can affect more than the mounting flange.
Confirm whether the ECU expects electrical feedback, position control, or diagnostic behavior from the original valve.
Owners of a 2022+ FA24F Subaru WRX who want a combination of recirculation and atmospheric discharge can use the Turbosmart Kompact EM dual-port valve as an application-specific comparison point. Its electronic integration, venting balance, calibration behavior, and exact fitment should still be confirmed for the vehicle.
Turbosmart 2022+ Subaru WRX (FA24F) Kompact EM Dual Port BOV (TURTS-0223-1068)
A Blow-Off Valve Is Not a Boost Controller
Important: A blow-off or bypass valve is not a boost controller. It should stay sealed under intended boost and open during the designed pressure transition.
Do not increase spring tension to raise boost.
If the valve leaks under load, identify whether the cause is:
- Incorrect spring selection
- A damaged seal
- A contaminated piston or diaphragm
- A leaking flange
- Incorrect reference routing
- Insufficient valve design for the application
Wastegate control—not blow-off-valve spring tension—should regulate turbocharger boost.
How Valve Spring Pressure Works
Mechanical valves use a combination of spring force and pressure acting on a piston or diaphragm.
A properly designed valve can remain closed during boost because pressure acts on both sides in a controlled way. When the throttle closes, the pressure relationship changes and helps the valve open.
A spring that is too stiff may cause:
- Slow opening
- Flutter during throttle lift
- Inadequate airflow relief
- Increased compressor disturbance
A spring that is too soft may cause:
- Idle leakage
- Boost leakage
- Slow spool
- Inconsistent fueling
Use the valve manufacturer’s spring-selection and adjustment procedure rather than tuning by sound.
The TiAL Q listing with an 11 PSI spring illustrates why the spring configuration must be selected deliberately. Confirm the valve flange, manifold-vacuum range, reference routing, and TiAL's spring recommendation instead of choosing this version from the engine's boost target.
TiAL Sport Q BOV 11 PSI Spring - Blue (TLS002572)
Reference-Line Routing Is Critical
A pneumatic valve needs a clean, stable pressure reference that reflects the intended manifold-pressure transition.
Check that the reference line:
- Uses the specified manifold source
- Has no cracks or loose fittings
- Is not pinched
- Does not contain unnecessary restrictions
- Is protected from heat
- Does not share an unstable source without approval
Poor reference routing can make a correctly sized valve respond late, remain partially open, or behave inconsistently.
Valve Size Must Match Airflow and Charge Volume
A larger turbocharger and large intercooler system may store significantly more compressed air than a small factory setup.
Valve capacity becomes more important as:
- Compressor flow increases
- Boost increases
- Charge-pipe volume increases
- Intercooler volume increases
- Throttle transitions become more abrupt
An undersized valve may not relieve pressure quickly enough. An unnecessarily oversized valve can add packaging complexity without improving operation.
Use documented flow recommendations for the intended turbocharger and pressure range.
Valve Placement Affects Response
A valve mounted near the throttle body can respond directly to the pressure wave created when the throttle closes.
Other positions may be selected to support:
- Factory packaging
- Short recirculation routing
- Electronic control
- Turbo-inlet design
There is no universal mounting location for every system.
Placement should account for charge volume, valve capacity, reference signal, service access, heat, and recirculation routing.
Where Should Recirculated Air Return?
On a MAF-based system, recirculated air commonly returns to the turbo inlet after the airflow sensor but before the compressor.
The return location should avoid:
- Disrupting MAF readings
- Creating excessive turbulence
- Directing flow against sensitive inlet components
- Collapsing or pressurizing unsuitable hoses
Follow the vehicle and valve manufacturer’s routing guidance.
Diaphragm, Piston, and Electronic Valve Designs
Diaphragm Valves
A diaphragm can provide a large effective pressure area and quick response.
The diaphragm is a wear item and should be inspected for cracking, tearing, or stiffness.
Piston Valves
Piston valves require clean bores, healthy seals, and the specified lubricant where applicable.
Contamination or corrosion can make the piston stick or leak.
Electronic Valves
Electronic bypass valves allow the ECU to coordinate airflow relief with throttle and torque control.
Replacing one may require compatible wiring, control logic, diagnostics, or calibration.
Atmospheric Sound vs. System Behavior
An atmospheric valve creates the recognizable pressure-release sound many drivers want.
A recirculating valve is usually quieter and can preserve more OEM-like transient behavior.
A dual-port valve attempts to combine both approaches, but it still must be compatible with the engine-management strategy.
The correct valve is the one that:
- Protects the compressor during throttle transitions
- Remains sealed under boost
- Maintains stable fueling
- Does not introduce leaks
- Works with the ECU strategy
Evo X owners specifically considering a more noticeable pressure-release sound can evaluate the HKS Super SQV4 kit as a chassis-specific option. The installed discharge configuration, fueling behavior, flange sealing, and compatibility with the car's intake and calibration should be verified before sound becomes the deciding factor.
HKS Super SQV4 Blow Off Valve Kit | Mitsubishi Evo X (HKS71008-AM015)
Turbo Flutter Is Not a Complete Diagnosis
Sound alone cannot confirm whether the turbocharger is experiencing damaging compressor surge.
Flutter may be influenced by:
- Valve response
- Throttle position
- Turbo operating point
- Charge-pipe volume
- Compressor design
- Acoustic behavior
Do not assume every flutter sound is harmless. Do not assume every unusual noise proves severe surge.
Evaluate the sound with boost data, valve operation, throttle events, and the turbocharger’s operating range.
Pressure-Test the Complete Intake System
A valve can sound impressive while leaking enough air to slow spool or produce inconsistent fueling.
Pressure-test the assembled intake system with safe, regulated air according to the platform procedure.
Inspect:
- Valve seat
- Flange
- O-rings
- Welds
- Reference lines
- Recirculation hoses
- Clamps and couplers
Verify that the valve remains sealed during steady pressure and responds correctly during the intended transition.
Which Valve Strategy Fits the Build?
| Application | Main Consideration | Likely Starting Point |
|---|---|---|
| MAF-based factory turbo car | Metered air should remain accounted for | A compatible recirculating bypass valve is usually safest |
| Speed-density modified system | The ECU calculates load without relying entirely on pre-turbo MAF data | An atmospheric valve may be compatible when the calibration supports it |
| High-flow large-turbo build | Valve flow capacity, placement, and charge volume become critical | Use a documented high-flow valve and control strategy |
| Electronically controlled factory system | The valve may participate in ECU torque and diagnostic functions | Retain compatible electronic control or use an engineered conversion |
A Reliable Valve-Selection Process
- Identify the load strategy. Confirm whether the ECU uses MAF, speed density, or a hybrid calculation.
- Inspect the factory system. Determine whether the original valve is pneumatic, electronic, integrated, or ECU-monitored.
- Define the airflow requirement. Account for turbo size, boost, intercooler volume, and charge-pipe volume.
- Choose atmospheric or recirculating operation. Base the choice on calibration compatibility rather than sound alone.
- Select the correct valve and spring. Follow the manufacturer’s application guidance.
- Plan the reference and return routing. Use stable pressure reference and correct recirculation placement.
- Check travel and packaging. Protect the valve and hoses from heat, abrasion, and interference.
- Pressure-test the installation. Inspect flanges, O-rings, couplers, and hoses.
- Log the result. Review boost, airflow, lambda, fuel trims, throttle, and valve-related behavior.
- Inspect periodically. Service pistons, diaphragms, seals, and hoses according to the manufacturer.
Common Blow-Off-Valve Mistakes
- Buying a valve only for its sound
- Using spring tension as a boost adjustment
- Venting metered air without calibration support
- Using an unstable pressure-reference source
- Ignoring a leaking flange or O-ring
- Installing a valve with inadequate flow capacity
- Replacing an electronic valve without considering ECU control
- Assuming every flutter sound is harmless
- Skipping a complete intake pressure test
- Ignoring piston, diaphragm, or seal maintenance
Frequently Asked Questions
Does a Blow-Off Valve Add Horsepower?
No. A blow-off valve manages pressure during throttle transitions.
A leaking or restrictive valve can reduce performance, but replacing a healthy, correctly sized valve does not create engine power by itself.
Is Turbo Flutter Always Compressor Surge?
No. Sound alone is not enough to diagnose the turbocharger. Valve operation, throttle position, compressor behavior, and pressure data must be evaluated together.
Can I Put an Atmospheric Blow-Off Valve on a MAF Car?
Only when the engine-management strategy and application explicitly support it. Venting already measured air can disturb fueling on many MAF-based systems.
Should a Blow-Off Valve Open Under Boost?
It should remain sealed during intended boost and open during the designed throttle-lift pressure transition.
Do I Need a Harder Spring for More Boost?
Not automatically. Valve design and pressure balance matter. Use the manufacturer’s spring recommendation rather than treating spring tension as boost control.
Key Takeaways
| Key Takeaway | What It Means for the Turbo System |
|---|---|
| Valve choice must match ECU strategy | MAF, speed-density, hybrid, and electronic systems may need different solutions. |
| Atmospheric sound is secondary | Stable fueling, compressor protection, and leak-free operation matter more. |
| Spring tension is not boost control | Use the specified spring and let the wastegate system manage boost. |
| Flow capacity must match the system | Turbo flow, boost, intercooler volume, and piping affect bypass demand. |
| Leak testing is mandatory | A leaking valve, flange, seal, or hose can reduce spool and disturb fueling. |
| Flutter needs context | Use pressure, throttle, valve, and compressor data rather than sound alone. |
