How to Install Anodized Titanium Hardware Without Scratching the Finish
Anodized titanium hardware is made to be used, but its visible finish deserves the same care you would give a painted wheel, polished valve cover, or carbon-fiber panel.
Most installation marks come from a small group of preventable mistakes:
- Using a loose or worn tool
- Trapping grit between finished surfaces
- Starting threads with a power tool
- Dragging washers while tightening
- Allowing the driver to rock inside the bolt head
- Forcing a fastener that is not threading correctly
A careful installation does not need to be slow. It needs to be organized.
Prepare the work area, confirm the hardware, start every thread by hand, and apply final torque with the tool seated fully and squarely.
Understand the Finish You Are Protecting
Titanium anodizing creates color through a controlled oxide layer rather than a conventional coat of colored paint.
The visible color can be affected by abrasion, contamination, and heat. A physical scratch that cuts through or changes the oxide layer will not simply wipe away.
Fingerprints, grease, soap residue, and other surface contamination can also make anodized titanium look dull or faded even when the finish itself is still intact.
That distinction matters.
Clean a suspicious mark before assuming the anodizing has been damaged. At the same time, avoid abrasive metal polish. Polishing can alter or remove the oxide layer that creates the color.
Set Up a Clean Work Area
Place the hardware on a clean microfiber towel, foam tray, or divided parts organizer.
Do not pour finished titanium bolts into a metal magnetic dish where the heads and washers can strike one another.
Keep:
- Bolts separated by size
- Washers paired with the correct hardware
- Vehicle-specific locations labeled
- Finished parts away from removed steel hardware
- Clean tools separated from dirty suspension or brake tools
Clean the mounting surface on the vehicle as well.
Sand, rust, old thread locker, metal shavings, brake dust, or hardened residue can scratch a washer as it seats. If the original fastener left a burr or raised edge around the hole, address that problem before installing the new hardware.
Wear Clean Gloves
Clean nitrile gloves help keep skin oils away from anodized titanium.
This is especially useful when the hardware will be exposed to engine-bay heat. Residue left on the surface can affect how the finish looks after repeated heat cycles.
Change gloves after handling:
- Grease
- Anti-seize
- Brake dust
- Dirty factory hardware
- Engine degreaser
- Thread-locking compound
Gloves do not make an abrasive surface safe. A gritty glove can scratch a finished bolt just as easily as a dirty rag.
Inspect the Tool Before It Touches the Hardware
Use the exact driver or socket size and make sure it seats fully.
Rounded hex keys, worn bits, and oversized sockets concentrate force on small areas of the bolt head. That can damage the visible finish or deform the tool recess.
Inspect the tool for:
- Rounded corners
- Burrs
- Rust
- Embedded grit
- Peeling chrome
- Contaminated grease
For internal-hex hardware, insert the driver completely and keep it square to the fastener.
For external hexes, use a quality six-point socket where appropriate. Avoid adjustable wrenches, locking pliers, and poorly fitting open-end tools on finished heads.
Use Protective Barriers Carefully
A very thin layer of clean painter’s tape or a purpose-made protective socket insert can reduce incidental scuffing on some external surfaces.
The barrier must not prevent full tool engagement.
Thick tape can make the socket sit too shallow, increase tool movement, and cause the exact damage it was intended to prevent.
Do not place tape inside a small internal-hex recess when it prevents the bit from seating fully.
Secure, square tool engagement is always the priority.
Confirm Every Fastener Before Installation
Compare the replacement hardware with the original before threading it into the vehicle.
Check:
- Thread diameter
- Thread pitch
- Under-head length
- Threaded length
- Shoulder length
- Head geometry
- Washer geometry
- Tool clearance
- Intended location
Use the JDC bolt and nut measuring guide when planning a universal application.
A visually perfect titanium bolt in the wrong thread, length, or location can damage both the fastener and the vehicle.
Start Every Thread by Hand
Align the parts and rotate the bolt by hand for several complete turns.
The fastener should advance smoothly.
If it becomes tight early, stop and back it out. Check for:
- Cross-threading
- Dirt
- Incorrect pitch
- Damaged female threads
- Misaligned panels
- A bolt that is bottoming out
Do not use an impact driver to help a fastener start.
Power tools can cross-thread quickly, generate unnecessary heat, and batter the visible recess before the installer has time to react.
Prevent Titanium Galling
Titanium can gall under unfavorable friction, pressure, and installation conditions.
Clean threads, correct hardware, proper alignment, and controlled tightening reduce that risk.
Use only the lubricant, anti-seize, or thread-locking procedure specified for the particular product and joint.
Lubrication changes the relationship between torque and clamp load, so anti-seize should not be added automatically to every installation.
When a product calls for anti-seize:
- Apply only the specified amount
- Keep it away from the visible head
- Avoid contaminating the washer face
- Remove excess before it spreads across the finish
Keep Threads and Mating Surfaces Clean
Dirty threads create inconsistent resistance and make it harder to feel whether the bolt is advancing correctly.
Clean the mounting hole according to the application’s service procedure. Remove loose debris and old compound without damaging the threads.
Also clean the area beneath the washer.
A single grain of sand or metal shaving can become trapped under the washer and score the finished surface as tightening begins.
Install Washers Without Dragging Them
Finished washers can scratch when rotated under load against grit, rough paint, or a damaged bracket.
Position the washer before final tightening and keep both mating surfaces clean.
For flush-fit hardware, verify that the bolt and washer are the matching design and that the bolt head seats correctly inside the washer.
The JDC Titanium M6x1.0 Flush-Fit Bolt/Washer Kit is offered in multiple lengths and washer diameters, allowing the installer to match the mounting surface instead of forcing one washer size into every location.
JDC Titanium M6x1.0 Flush-Fit Bolt/Washer Kit
A washer that is too large may overlap a curved surface. One that is too small may fail to cover the original mounting mark or distribute load as intended.
Start All Panel Fasteners Before Tightening
When a cover, bracket, or panel uses several bolts, start every fastener before tightening any one of them completely.
Bring the hardware down gradually in an appropriate pattern.
This helps prevent the part from pulling sideways and dragging washers across the finish.
During tightening:
- Keep the driver square
- Apply steady inward pressure
- Avoid rocking the tool
- Watch the washer as it seats
- Stop if the panel shifts unexpectedly
Use the Correct Torque Specification
Final torque must come from the relevant JDC instructions, vehicle service information, or engineering specification for the joint.
Do not copy a generic torque value simply because another fastener has the same diameter.
Required torque depends on more than thread size. It can also be affected by:
- Thread pitch
- Fastener and mating materials
- Lubrication
- Joint design
- Washer configuration
- Required clamp load
Use a calibrated torque wrench that operates comfortably within the required range.
A large torque wrench used near the bottom of its range may provide less control than a smaller tool suited to dress-up hardware.
Avoid Impact Tools During Final Installation
Hand tools provide the most control for visible anodized hardware.
An impact tool can:
- Chip the edge of a finished head
- Cam out of an internal hex
- Overrun the seating point
- Spin a washer against the panel
- Cross-thread before resistance is felt
A powered driver used at low speed may still throw dirty factory hardware into the clean parts area or damage a recess when the bolt reaches its seat.
Keep impact action away from final tightening on finish-sensitive titanium dress-up hardware.
Protect the Surrounding Panel
One tool slip can mark a painted bracket, carbon cover, valve cover, or radiator panel around the bolt.
Protect nearby surfaces by:
- Masking vulnerable edges
- Using a controlled-length extension
- Supporting the tool with both hands
- Positioning your body so the tool cannot swing into the panel
- Removing rings, watches, and metal bracelets
Be especially careful when working near sharp carbon edges or painted surfaces that cannot be touched up easily.
Clean the Hardware After Installation
Remove fingerprints, lubricant traces, and installation residue before the part is exposed to heat.

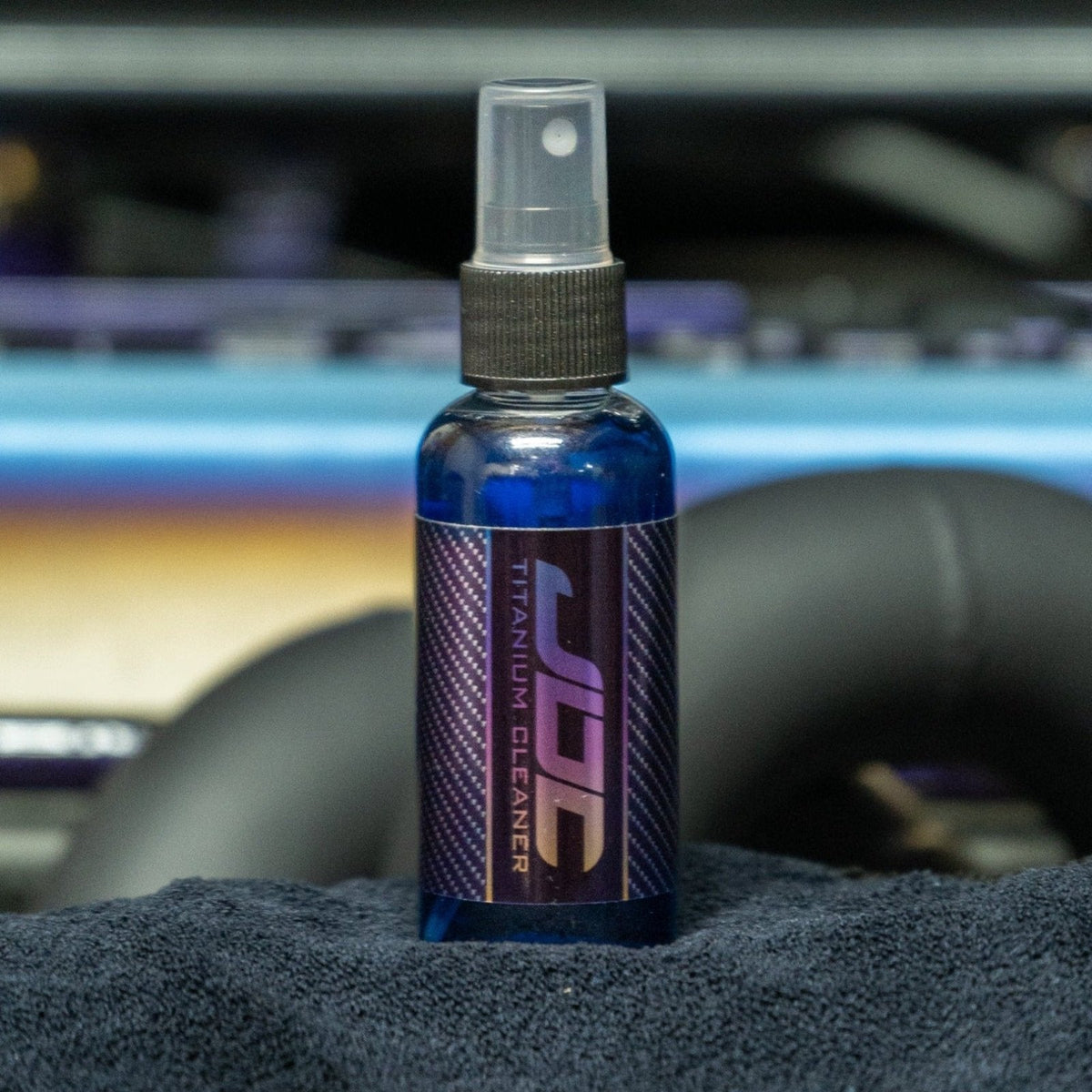

JDC Titanium Cleaner is formulated for cleaning titanium components after handling and installation.
Work only when the hardware is cool.
Avoid using:
- Acidic cleaners
- Abrasive metal polish
- Harsh water-spot remover
- Brake cleaner
- Strong engine degreaser
- Coarse towels or brushes
These products can alter the oxide layer, scratch the surface, or leave the finish looking dull.
What to Do When the Finish Looks Dull
Do not immediately compound or polish the part.
First allow it to cool, then clean it using a finish-safe method.
Oils, soap residue, road film, and fingerprints can change how light reflects from anodized titanium. Proper cleaning may restore the appearance without removing any material.
If the clean surface still has a line that catches a fingernail or reveals bare metal, the mark may be a physical scratch rather than contamination.
Avoid local polishing. It can create a larger mismatched patch around the original mark.
Protect the Finish During Future Service
The second removal can be harder on the finish than the original installation.
Dirt often packs into exposed internal-hex heads over time. Clean the recess before inserting the driver.
For future service:
- Photograph each hardware location
- Clean the tool recess
- Use the same exact-size driver
- Apply steady, square pressure
- Store removed pieces separately
- Keep washers from sliding across painted panels
If the tool begins to twist or cam out, stop and reassess rather than forcing it.
Store Removed Titanium Hardware Separately
Wash and dry removed hardware before storage.
Separate each piece with soft material or place it in an individual organizer compartment.
Label:
- Vehicle location
- Orientation
- Bolt length
- Washer size
- Any location-specific notes
Do not store clean anodized titanium loose with steel bolts, drill bits, sockets, or abrasive shop supplies.
Build a Dedicated Titanium Installation Kit
A small dedicated kit makes careful installation faster and more repeatable.
Useful items include:
- Six-point sockets
- A low-range calibrated torque wrench
- Microfiber towels
- Nitrile gloves
- Thin masking tape
- A soft parts organizer
- Finish-safe titanium cleaner
Keeping these tools away from dirty suspension, exhaust, and brake work reduces the chance of grit reaching a finished fastener.
Common Mistakes That Damage Anodized Titanium
- Using a worn or incorrect-size driver
- Holding the tool at an angle
- Starting the fastener with an impact driver
- Dragging washers across dirty paint or metal
- Handling hardware with greasy gloves
- Forcing an incorrect thread pitch
- Overtightening a cosmetic cover
- Using abrasive polish or harsh degreaser
- Spraying cleaner onto hot titanium
- Throwing removed hardware into a metal tray
Key Takeaways
| Key Takeaway | What It Means During Installation |
|---|---|
| Cleanliness prevents most marks | Keep grit away from bolt heads, washers, tools, and mounting surfaces. |
| Tool fit is critical | Use an unworn driver or six-point socket that seats fully and remains square. |
| Start threads by hand | Stop immediately when a fastener does not advance smoothly. |
| Follow the correct joint procedure | Torque, lubricant, anti-seize, and thread locker depend on the specific application. |
| Protect washers and nearby panels | Start all fasteners first, then tighten gradually without dragging finished surfaces. |
| Clean before heat exposure | Remove fingerprints, lubricant, and residue with a finish-safe method after installation. |
Related JDC Guides
Protecting anodized titanium does not require unusual tricks. Clean the parts and mounting surfaces, verify every fastener, use a fully seated tool, start threads by hand, and tighten with controlled final torque. Explore the JD Customs USA collection for titanium bolts, flush-fit washers, vehicle-specific hardware kits, and coordinated engine-bay dress-up components.
