APR Performance products are visually distinctive, which makes it easy to assume their main purpose is styling.
That is only part of the story.
A properly mounted splitter can influence front lift, underbody airflow, and high-speed balance. An adjustable wing can add meaningful rear load. Cooling panels and ducts can improve how air reaches a heat exchanger.
The same components can also deliver mostly appearance when they are installed at the wrong angle, mounted only to flexible bodywork, or added without considering the rest of the car.
Functional aero should be treated as a system of airflow, structure, ride height, suspension, tires, and balance. Carbon fiber can be attractive and functional at the same time, but the installation determines whether the intended aerodynamic load reaches the chassis safely.
Aerodynamic Force Needs a Real Load Path
A splitter works by creating a pressure difference between its upper and lower surfaces while managing the air entering beneath the car. A wing uses its profile and angle to generate aerodynamic force at the rear.
Those forces do not disappear at the edge of the carbon part. They must travel through brackets, supports, mounting hardware, and the vehicle structure.
A splitter attached only to a flexible bumper cover may look correct while parked but deflect at speed. A wing mounted through weak trunk skin without proper reinforcement can move, crack the panel, or change angle under load.
Vehicle speed matters because aerodynamic force rises rapidly as speed increases. A part may feel irrelevant around town and still create meaningful load during a track session.
That also means weak mounting can become more dangerous as speed rises.
How Front Splitters and Air Dams Work
A front splitter extends a horizontal surface into the airflow beneath the bumper. It can reduce the amount of air moving under the car while creating a pressure difference across the splitter surface.
An air dam serves a related but different purpose. It manages the front boundary and can reduce the amount of high-pressure air entering beneath the vehicle.
Neither component works in isolation.
Splitter performance depends on projection, ride height, underbody conditions, sealing, bumper shape, and the pressure available above and below the surface.
The splitter also needs credible support. Chassis-mounted brackets or properly designed support rods can stabilize the outer edge, but the primary load path should still reach strong structure.
Ground clearance matters just as much as aerodynamic theory. A splitter that repeatedly contacts pavement, curbing, trailer ramps, or driveway transitions can experience structural loads far greater than normal aero force.
A90 Supra Front Aero Needs Structural Support
The APR Front Wind Splitter for A90/A91 Supra adds a substantial front aero surface beneath the factory bumper area.
APR Front Wind Splitter for A90/A91 Supra
Its value depends on more than the carbon construction. The splitter needs correct brackets, suitable support, enough ground clearance, and a front aero plan that matches the rest of the car.
An A90 or A91 Supra with a large rear wing, lowered suspension, and track-oriented tires may need a different front balance than a lightly modified street car. The splitter should be evaluated as part of that complete setup.

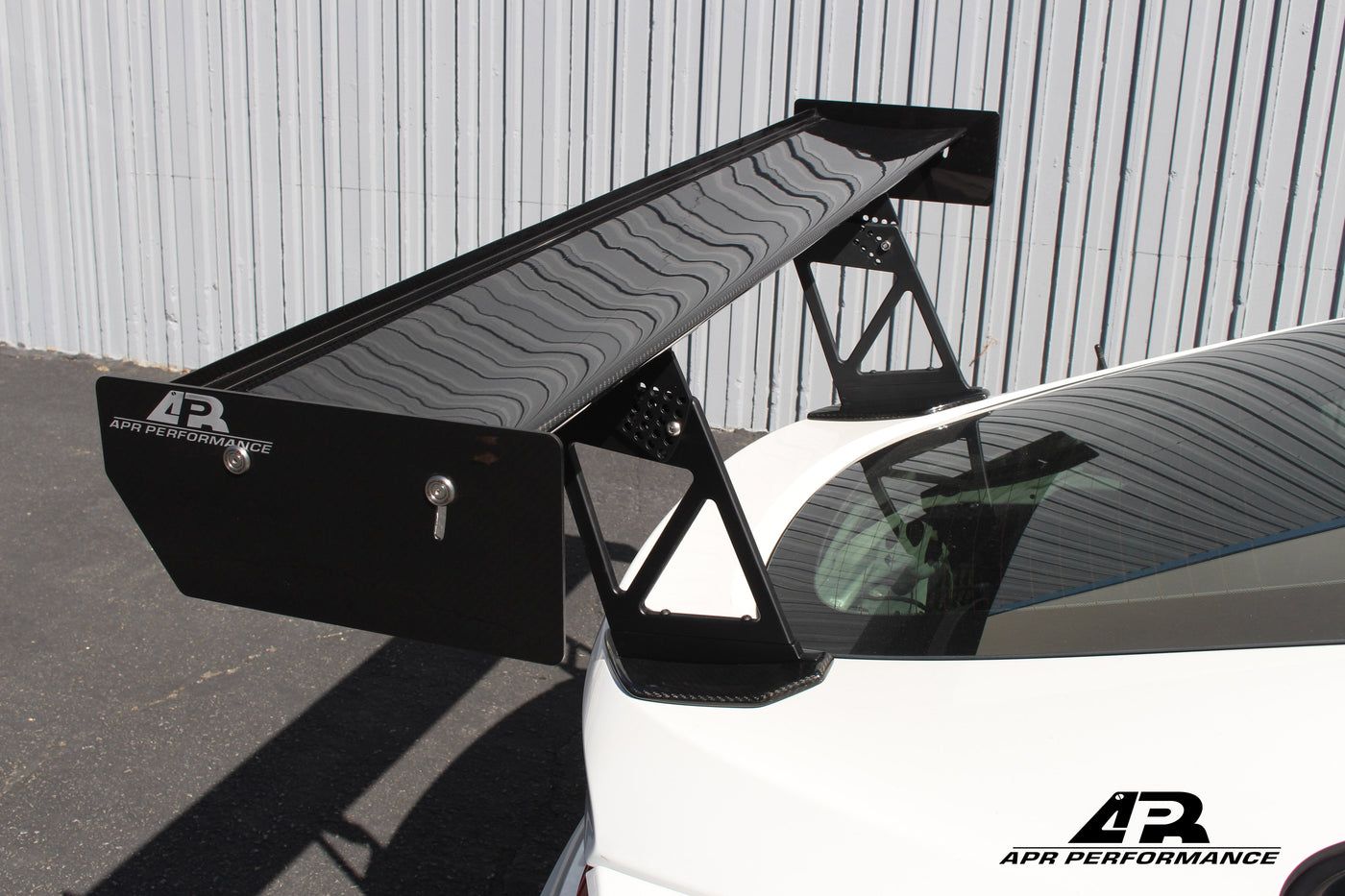

Adjustable Wings Change Rear Load and Drag
APR GT and GTC wings use adjustable aerodynamic profiles in vehicle-specific applications.
Changing wing angle changes rear load and drag. More angle may improve rear stability, but it can also reduce top speed, increase drag, and shift the car toward high-speed understeer when the front aero does not keep pace.
The APR GT-250 Adjustable Wing for FK8 Civic Type R is an example of an adjustable rear-aero package designed around a specific performance platform.
APR GT-250 Adjustable Wing for FK8 Civic Type R
On a front-wheel-drive car, additional rear stability may be useful in certain conditions, but wing angle should still be chosen with front grip, tire temperature, suspension behavior, and driver feedback in mind.
The most aggressive setting is not automatically the fastest. A visually dramatic angle may create more drag than useful balance.
Splitter Rods Support the Surface, Not the Aerodynamics
Splitter support rods are often misunderstood.
The rods do not create downforce. The pressure difference across the splitter creates the force.
Support rods help control movement and stabilize the front edge. They may also help transfer some load toward stronger structure, depending on the installation.
Mounting the rods to weak bumper plastic does not create a credible load path. The attachment points still need enough strength to resist repeated aerodynamic load, vibration, and impact.
A well-supported splitter should remain stable without twisting the bumper or concentrating force into fragile bodywork.
Complete Aero Kits Can Improve Cohesion
A coordinated aero kit can connect front, side, and rear components more effectively than a group of unrelated parts.
That does not guarantee perfect aerodynamic balance, but it gives the build a more consistent starting point.
The APR Carbon-Fiber Aero Kit for FL5 Civic Type R combines multiple platform-specific exterior components into one visual and functional direction.
APR Carbon-Fiber Aero Kit for FL5 Civic Type R
A complete kit still depends on correct ride height, rake, alignment, tire choice, and mounting. Mixing components from several unrelated packages can shift balance in ways that are difficult to predict.
The final setup should be tested progressively rather than assumed to work because the pieces share the same material.
Bumper-Specific Fitment Matters
A splitter may fit one bumper but not another bumper from the same chassis family.
Factory lip packages, mid-cycle changes, regional trim, aftermarket bumpers, and previous body repairs can all alter the mounting surface.
The APR Front Wind Splitter for Evo X is designed around the listed stock-bumper application rather than every possible Evo X front-end configuration.
APR Front Wind Splitter for Evo X
An aftermarket bumper or lip may change hole locations, projection, sealing, and available support. Product photos should not be used as the only fitment reference.
The written application, manufacturer part number, required factory components, and included brackets should all be confirmed before ordering.
Cooling Panels and Smaller Carbon Parts Can Still Be Functional
Not every functional aero component is large or visually dramatic.
Radiator panels, cooling ducts, and vent panels can improve airflow management by reducing bypass and guiding air through a heat exchanger.
A sealed path matters more than the carbon weave.
If air can escape around the radiator instead of passing through it, a premium carbon panel may provide little cooling benefit. The surrounding gaps, factory ducting, underbody panels, and outlet path all affect the result.
Smaller parts should therefore be judged by the airflow problem they solve, not simply by material or finish.
APR Aero Components and Their Roles
| Component | Possible Functional Role | Common Styling-Only Failure |
|---|---|---|
| Front air dam or lip | Manage front airflow and reduce air entering beneath the car | Installed without sealing or attention to underbody flow |
| Front splitter | Create front aerodynamic load and manage underbody entry | Attached only to flexible bumper material |
| Adjustable wing | Generate rear load and tune high-speed balance | Set by appearance without structural support or testing |
| Cooling panel or duct | Guide air through a radiator, cooler, or brake duct | Large gaps let air bypass the intended path |
| Canards or dive planes | Add front load and influence wheel-wake airflow | Mounted for appearance in an unvalidated location |
Ride Height and Rake Change Aero Behavior
Aero parts do not operate independently of suspension setup.
Lowering the front of the car may change the amount of air reaching the splitter and underbody. Rake can alter the pressure distribution beneath the vehicle. Excessive suspension movement can also change the angle and clearance of the aero surfaces.
A splitter that works at one ride height may scrape or stall at another. A wing angle selected for one tire and suspension setup may not provide the same balance after major chassis changes.
Functional aero should therefore be tested at the ride height and alignment the car actually uses.
How to Evaluate an Exact APR Product Listing
Start with the manufacturer part number and written application notes.
A product photo may show optional components, a different trim, or a vehicle with additional modifications. It should not be treated as proof that every visible part is included.
Confirm the exact model year, chassis, trim, bumper, trunk construction, and factory package. Determine whether drilling, transferred hardware, support brackets, or an OEM lip are required.
Terms such as “universal,” “modification required,” “professional installation recommended,” and “off-road use” materially change the scope of the project.
Universal fitment may require measurement and fabrication. Off-road designations may affect inspection, road legality, noise, or other local requirements.
A respected brand cannot compensate for ordering the wrong part number.
What to Verify Before Ordering
- Confirm the complete chassis, model year, trim, bumper, trunk, and factory aero configuration.
- Define whether the goal is appearance, cooling, reduced lift, downforce, or balance adjustment.
- Identify every support bracket, rod, mount, and reinforcement required.
- Check ground clearance, steering, suspension movement, and service access.
- Confirm which factory parts transfer and which components are supplied.
- Include fabrication, alignment, setup, and professional installation in the total cost.
- Establish a baseline before changing the vehicle’s aerodynamic balance.
Do not compare prices until the products are being evaluated at the same level of completeness. Hardware, brackets, adapters, fabrication, alignment, finish work, and professional labor can change the installed cost significantly.
Common Mistakes
- Ordering by a broad model name while ignoring bumper or trim differences
- Assuming the product photo shows every included component
- Attaching a splitter only to flexible bumper plastic
- Choosing maximum wing angle for appearance
- Adding substantial rear aero without increasing front authority
- Ignoring ground clearance and street access
- Changing several aero and suspension variables at once
Installation and Progressive Testing Matter
Read the instructions before taking the car apart. Photograph the factory configuration, inventory the supplied components, and preserve original hardware when practical.
Carbon-fiber mounting points need load-spreading hardware and careful torque. Metal panels may require reinforcement or corrosion protection after drilling.
After installation, inspect every bracket, fastener, contact point, and support. Testing should begin conservatively.
Increase speed and load progressively while monitoring steering balance, tire temperature, stability, vibration, and any movement in the aero components.
Stop using the part if the carbon, brackets, bumper, trunk, or mounting surfaces begin to crack or deform.
Frequently Asked Questions
Does every APR splitter create downforce?
APR splitters are designed for aerodynamic use, but the actual result depends on speed, ride height, surrounding bodywork, sealing, underbody airflow, and installation.
Do splitter support rods create downforce?
No. The pressure difference across the splitter creates aerodynamic force. Support rods help stabilize the surface and control movement.
Can a large rear wing make handling worse?
Yes. Excess rear load without matching front aero can increase high-speed understeer. Weak or flexible mounting can also damage the body or make the wing behave inconsistently.
Is carbon fiber necessary for functional aero?
No. Carbon fiber can offer stiffness, low mass, and a premium finish, but shape, placement, support, and airflow determine whether the component functions correctly.
APR Aero Can Be Functional and Visual
APR components can work on serious appearance builds and functional track cars.
The difference is not whether the carbon looks aggressive. The difference is whether airflow, structure, ride height, and balance are treated as engineering requirements.
A properly mounted splitter can influence front behavior. An adjustable wing can tune rear balance. A complete kit can create a cohesive aero direction.
Without a credible load path and progressive testing, however, the same parts may deliver mostly styling.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| Functional aero needs structure | Splitter and wing loads must reach credible chassis or body support. |
| Carbon fiber alone does not create performance | Shape, placement, airflow, and mounting determine the result. |
| Front and rear aero must remain balanced | Adding load at one end can change high-speed handling at the other. |
| Ride height changes aero behavior | Ground clearance, rake, and suspension movement affect splitter and underbody performance. |
| Exact fitment matters | Bumper, trim, trunk, chassis, and model-year details can change mounting requirements. |
| Progressive testing protects the car | Inspect mounting, balance, and component movement as speed and load increase. |
Related JDC Guides
Choose the exact platform component, support it with a credible load path, and tune the car’s balance progressively after installation. Explore the JD Customs USA collection for APR Performance splitters, wings, aero kits, and carbon-fiber components designed for carefully planned street and track builds.
