Compression and leak-down tests both evaluate cylinder sealing, but they do not measure the same thing.
A compression test records the pressure a cylinder produces while the starter cranks the engine. A leak-down test supplies regulated compressed air to a cylinder near top dead center and measures how much of that air escapes.
Used together, the tests can help answer two different questions:
- How well does the cylinder pump during cranking?
- How well does the cylinder seal at a controlled crank position?
Neither test should be interpreted from one isolated number. Engine temperature, battery condition, starter speed, cam timing, valve clearance, gauge design, regulator pressure, and test procedure can all affect the result.
Compression and Leak-Down Testing at a Glance
| Test | What It Measures | What to Evaluate |
|---|---|---|
| Compression test | Dynamic pressure produced during cranking | Cylinder balance, cranking speed, throttle position, temperature, and gauge consistency |
| Leak-down test | Static sealing loss at a selected crank position | Leak percentage, tester consistency, and where the air escapes |
| Borescope inspection | Visual condition inside the cylinder | Cylinder walls, piston crown, valves, deposits, and coolant evidence |
| Oil-pressure test | Lubrication-system pressure under defined conditions | Bearing, pump, clearance, and oil-system concerns not answered by cylinder tests |
What a Compression Test Measures

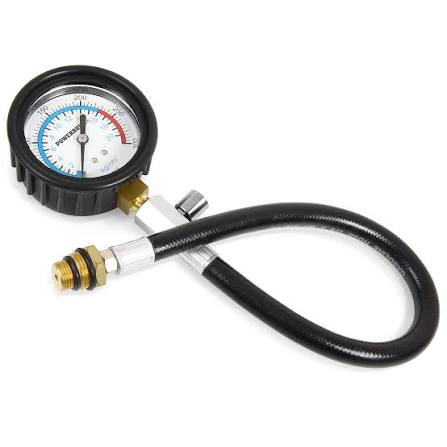

A compression test measures the pressure created as the piston moves upward during cranking.
The result is influenced by more than piston-ring and valve sealing. It can also change with:
- Starter speed
- Battery voltage
- Throttle position
- Engine temperature
- Camshaft timing
- Valve clearance
- Compression-gauge design
- Number of compression strokes recorded
That is why cylinder-to-cylinder consistency is often more useful than comparing one pressure number with an unrelated engine online.
How to Perform a Meaningful Compression Test
Follow the vehicle manufacturer’s preparation procedure whenever available.
A consistent process generally includes:
- Bring the engine to the specified test temperature.
- Confirm the battery is fully charged.
- Disable fuel and ignition safely.
- Remove the required spark plugs.
- Set the throttle position specified by the service procedure.
- Install the same gauge securely in each cylinder.
- Crank the engine for the same number of compression strokes.
- Record each result before moving to the next cylinder.
Do not allow fuel to continue entering the cylinders during cranking. Fuel can wash oil from the cylinder walls, alter results, and create a safety risk.
Why Cranking Speed Matters
A weak battery or slow starter can reduce measured compression across several cylinders.
If all cylinders read lower than expected but remain relatively even, inspect the test conditions before assuming the engine is worn out.
Record battery voltage and cranking behavior when building a baseline. A future test performed with different starter speed may not be directly comparable.
If cranking speed is questionable, AutoMeter's portable analyzer can load-test the battery and evaluate the charging system before the compression numbers are blamed on engine condition. That makes it useful for separating a weak electrical starting system from a uniformly low mechanical reading.
Autometer Charging System Analyzer / Battery Tester (ATMBVA-34)
Throttle Position Can Affect the Reading
If the test procedure requires the throttle open, leaving it closed can restrict incoming air and lower compression readings.
Electronic-throttle vehicles may require a platform-specific method. Do not force the throttle plate or improvise around an electronic system without the correct service procedure.
How to Interpret Compression-Test Results
Use the factory service manual’s minimum pressure and allowable cylinder variation whenever those specifications are available.
Common patterns include:
- One low cylinder: A localized sealing, valve, piston, ring, or bore issue may be present.
- Two adjacent low cylinders: A head-gasket or shared sealing path may deserve investigation.
- All cylinders uniformly low: Test procedure, cam timing, cranking speed, or general engine condition may be responsible.
- One unusually high cylinder: Carbon deposits, gauge variation, or test inconsistency may be involved.
Repeat suspicious cylinders before making a disassembly decision.
What a Leak-Down Test Measures
A leak-down test places a cylinder near the specified top-dead-center position, applies regulated compressed air, and measures how much pressure escapes.
Unlike a compression test, the engine is not cranking. The test evaluates sealing at one controlled crank position.
Its greatest advantage is that the escaping air can help identify the leakage path.
Where Leak-Down Air Escapes
| Leakage Location | Possible Path | Follow-Up Check |
|---|---|---|
| Intake tract or throttle body | Intake valve is not sealing fully | Valve clearance, valve condition, seat condition, and cam timing |
| Exhaust outlet | Exhaust valve leakage | Valve clearance, burnt valve, seat damage, or carbon |
| Crankcase, oil filler, or breather | Ring, piston, or cylinder-wall leakage | Borescope, oil use, crankcase pressure, and wet compression test |
| Cooling system | Head-gasket, cylinder-head, or block path | Coolant bubbles, pressure testing, and further inspection |
Some ring leakage is normal. The amount must be interpreted with the engine design, test conditions, tester, and comparison between cylinders.
Leak-Down Percentage Is Tester-Specific
Leak-down testers use internal calibrated restrictions, and two different tester designs may not report exactly the same percentage.
Compare cylinders using:
- The same tester
- The same supply pressure
- The same regulator setting
- The same crank-position method
The location and sound of escaping air may be more useful than debating a small numerical difference between tools.
Crank Position Is Critical During Leak-Down Testing
The tested cylinder must be positioned according to the engine and tester procedure, commonly near top dead center on the compression stroke.
If the piston is not in the correct position, a valve may be open or cylinder pressure may rotate the engine unexpectedly.
Important: Compressed air can rotate the engine suddenly during leak-down testing. Secure the vehicle, use the correct crank-holding procedure, and keep hands and tools clear of moving components.
Compression and Leak-Down Tests Can Disagree
The tests evaluate different operating conditions, so their results do not always match perfectly.
Examples include:
- A worn cam lobe can reduce dynamic compression without producing major static leakage.
- Incorrect cam timing can lower compression across several cylinders.
- A valve may seal differently when the engine is hot.
- A ring may leak differently at another point in the bore.
- Carbon can temporarily interfere with valve seating.
Disagreement between the tests is not automatically proof that one tool is wrong. It is a reason to inspect the complete pattern.
Cam Timing and Valve Clearance Matter
Incorrect cam timing can lower compression readings across multiple cylinders even when the rings and valves seal acceptably during a static leak-down test.
Tight valve clearance can hold a valve slightly open, particularly as the engine reaches operating temperature.
Before condemning pistons, rings, or cylinder walls, confirm:
- Mechanical cam timing
- Variable-cam operation where applicable
- Valve-clearance specifications
- Recent timing-belt or chain work
Using a Wet Compression Test
A wet compression test adds a small, controlled amount of oil to a low cylinder before retesting.
The oil may temporarily improve ring sealing.
A meaningful increase can support a ring or bore concern. Little change may point more strongly toward valves or another sealing path.
Too much oil can create misleading pressure and hydraulic risk. Use a controlled professional procedure rather than pouring oil into the cylinder without measurement.
Add a Borescope When More Evidence Is Needed
A borescope can provide visual context after an abnormal compression or leak-down result.
Inspect for:
- Cylinder-wall scoring
- Piston damage
- Valve contact
- Coolant-cleaned areas
- Heavy deposits
- Foreign-object damage
A visual inspection does not replace measurement, but it can strengthen or challenge the working diagnosis.
What These Tests Cannot Prove
Good compression and leak-down results do not guarantee a completely healthy engine.
They do not directly verify:
- Bearing condition
- Oil pressure
- Fuel delivery
- Ignition performance
- Cooling-system capacity
- Calibration
- Turbocharger condition
An engine can seal well at the cylinders and still have serious lubrication, timing, fuel, or bearing problems.
Because good cylinder-sealing results do not establish healthy oil pressure, AutoMeter's digital gauge adds continuous 0–100 psi monitoring through a dedicated pressure transducer. It complements compression and leak-down records by tracking a separate part of engine health.
Autometer Black 0-100 psi Digital Oil Pressure Gauge (ATM6327)
When to Use Each Test
| Situation | Diagnostic Need | Best Approach |
|---|---|---|
| Pre-purchase inspection | Compare cylinder health under documented conditions | Use both tests through an independent shop when practical |
| Misfire isolated to one cylinder | Determine whether a sealing problem exists and where it is located | Begin with compression, then add leak-down and borescope inspection |
| Freshly built engine | Create a reference for future condition checks | Record temperature, equipment, procedure, and results |
| Oil consumption or crankcase pressure | Investigate rings, pistons, and cylinder walls | Combine both tests with borescope inspection and running data |
Build a Repeatable Engine-Health Baseline
Baseline records are especially valuable for track cars, modified engines, and recent rebuilds.
Document:
- Engine temperature
- Ambient temperature
- Battery voltage
- Gauge or tester used
- Cranking procedure
- Throttle position
- Leak-down supply pressure
- Altitude where relevant
- Cylinder-by-cylinder results
A future test performed with the same procedure can reveal deterioration even when all cylinders remain inside a broad factory range.
After-Repair Verification
Repeat the original test after repairs and any required break-in period.
Use the same documented method so the before-and-after results are comparable.
Improved measurements should agree with other evidence, including:
- Running quality
- Oil consumption
- Crankcase pressure
- Spark-plug condition
- Smoke
- Coolant behavior
If the numbers improve but the original symptom remains, continue the diagnosis instead of declaring the repair successful.
Common Testing Mistakes
- Comparing different gauges as though they are exact
- Testing with a weak battery
- Leaving the throttle closed when the procedure requires it open
- Failing to disable fuel and ignition safely
- Positioning the cylinder incorrectly for leak-down
- Comparing different leak-down testers by percentage alone
- Assuming good compression proves healthy bearings
- Condemning a cylinder from one suspicious reading
- Ignoring valve clearance or cam timing
- Failing to record temperature and procedure
Questions to Answer Before Testing
- What procedure and specification does the service manual require?
- Should the engine be warm or cold?
- Is the battery fully charged?
- How should fuel and ignition be disabled?
- Are cam timing and valve clearances known?
- What tester and regulator pressure will be used?
- Where is leakage audible or visible?
- Should a wet test or borescope inspection follow?
Frequently Asked Questions
What Is a Good Compression Number?
There is no universal number for every engine.
Use the factory service specification and compare cylinder balance under a consistent test procedure.
Does High Leak-Down Always Mean Bad Piston Rings?
No. Leakage may pass through intake valves, exhaust valves, rings, a head gasket, a cracked casting, or another path.
Listen and inspect to locate the leak.
Can an Engine Have Good Compression and Still Be Worn?
Yes. Compression testing does not directly evaluate bearings, oil pressure, fuel delivery, or every running-condition problem.
Should Compression or Leak-Down Be Done First?
Compression testing is usually the quicker comparative check. Leak-down testing is useful when more controlled sealing information and leakage location are needed.
Are These Tests Useful Before Buying a Modified Car?
Yes, especially when both tests are performed by an independent shop under documented conditions and interpreted with service history, smoke, oil use, coolant condition, and running data.
Key Takeaways
| Key Takeaway | What It Means for Diagnosis |
|---|---|
| The tests measure different conditions | Compression is dynamic during cranking; leak-down evaluates static sealing at a selected position. |
| Test procedure controls the value | Temperature, cranking speed, throttle position, and equipment must remain consistent. |
| Leak location matters | Air at the intake, exhaust, crankcase, or cooling system points toward different paths. |
| Cylinder balance is often more useful than one number | Use factory limits and compare all cylinders with the same method. |
| Good results do not prove the whole engine is healthy | Oil pressure, bearings, fuel, ignition, and calibration require separate checks. |
| Use multiple forms of evidence | Combine test results with oil use, smoke, coolant, borescope findings, and running data. |
