Asking how many PSI an engine can handle sounds straightforward, but a boost gauge leaves out most of the variables that determine engine load.
Two turbochargers can produce the same manifold pressure while moving different amounts of air at different temperatures, shaft speeds, and efficiencies. The same boost reading can also create very different torque depending on engine displacement, compression ratio, cam timing, fuel, ignition timing, and exhaust backpressure.
That is why there is no universal safe-boost number for an engine family.
A responsible tuner does not protect an engine with one dashboard value. The calibration must manage airflow, torque, cylinder pressure, fuel delivery, ignition timing, temperature, turbo speed, and drivetrain load across rpm, gear, weather, and operating duration.
Why PSI Alone Does Not Define Engine Stress
| Factor | What It Describes | What to Verify |
|---|---|---|
| Boost pressure | Pressure above ambient at the sensor location | Sensor location, pressure drop, altitude, and barometric conditions |
| Air mass | The amount of oxygen entering the engine | MAF data, calculated load, compressor flow, and volumetric efficiency |
| Cylinder pressure | Combustion load applied to pistons, rods, bearings, and the head gasket | Torque, ignition timing, fuel, lambda, and knock behavior |
| Turbo speed | Mechanical speed required to produce the target flow and pressure ratio | Compressor map, speed lines, efficiency, surge, and choke margin |
| Duty cycle | How long and how often the engine must sustain the load | Street pull, drag pass, road course, standing mile, or top-speed use |
The Same Boost Pressure Can Produce Different Power
A larger compressor operating efficiently may deliver cooler, denser air at a given manifold pressure than a smaller turbo operating near its speed or choke limit.
Even with identical boost readings, airflow can differ because of:
- Engine displacement
- Volumetric efficiency
- Camshaft timing
- Cylinder-head flow
- Intercooler pressure drop
- Exhaust backpressure
- Compressor efficiency
Boost pressure shows restriction and pressure at one location. It does not directly show how much oxygen is entering the cylinders or how efficiently the turbocharger is producing that pressure.
Boost Pressure Is Not Cylinder Pressure
Manifold pressure exists before combustion. Cylinder pressure develops after the mixture is compressed and ignited.
Cylinder pressure is influenced by:
- Air mass
- Compression ratio
- Ignition timing
- Fuel properties
- Lambda
- Combustion efficiency
- Engine speed
Two engines running the same boost can place very different loads on their pistons, rods, bearings, and head gaskets.
This is why a boost number copied from another build is not a reliable safety target.
Torque Is Often the Immediate Engine Limit
Low-rpm boost can create very high cylinder pressure and drivetrain torque even when peak horsepower looks moderate.
A large turbo that reaches its target early may stress:
- Connecting rods
- Rod bearings
- Head gasket
- Clutch
- Transmission
- Differential
- Axles
A tuner may limit boost or torque at low rpm and allow more airflow later in the rev range.
The result can produce similar peak horsepower with less low-speed stress and a more progressive torque curve.
Boost by Gear Can Protect More Than Traction
Lower gears can produce rapid torque rise and severe drivetrain shock. Higher gears hold the engine under load for longer.
Boost-by-gear or torque-by-gear strategies can help manage:
- Traction
- Clutch load
- Gearbox torque
- Axle shock
- Engine cylinder pressure
The appropriate target depends on the vehicle, tire, gearing, drivetrain, and use case.
For builds using a dedicated electronic boost controller, the AEM X-Series Tru-Boost combines a pressure display, internal MAP sensor, boost-control solenoid, and data output in one package that can support a properly calibrated control strategy.
Pressure Ratio Matters More Than Gauge Boost Alone
Turbocharger compressor maps use pressure ratio rather than gauge boost alone.
Pressure ratio compares absolute compressor outlet pressure with absolute inlet pressure. Barometric pressure therefore affects the operating point.
At altitude, a turbo may need to work harder and spin faster to produce the same gauge boost seen at sea level.
This can reduce:
- Compressor efficiency
- Turbo-speed margin
- Outlet-temperature control
- Reliability margin
Altitude and weather should be included when setting a repeatable boost target.
Compressor Maps Show the Turbo’s Working Range
A compressor map plots corrected airflow against pressure ratio. It also shows efficiency regions and may include turbo-speed lines.
The operating point should remain away from:
- Surge
- Choke
- Overspeed
- Low-efficiency regions
A small turbo pushed to high pressure at high rpm may generate excessive heat while producing limited additional airflow.
A larger turbo may produce the same pressure more efficiently, but it can also create greater torque if allowed to reach full load too early.
Exhaust Backpressure Changes the Engine’s Workload
Boost describes the intake side of the engine. Turbine drive pressure describes the exhaust-side pressure before the turbine.
A small turbine housing can create high exhaust backpressure even when manifold boost appears ordinary.
Excessive drive pressure can increase:
- Pumping work
- Exhaust temperature
- Residual exhaust gas
- Valve load
- Knock sensitivity
Turbocharger selection must consider both compressor and turbine behavior.
Fuel Quality Defines Knock Margin
The calibration must match the fuel actually in the tank.
Important variables include:
- Octane
- Ethanol content
- Fuel temperature
- Water contamination
- Fuel consistency
Testing on one fuel and later driving on another can remove the safety margin established during tuning.
A flex-fuel system should verify actual ethanol content rather than assuming every tank contains the same blend.
The Haltech flex-fuel composition sensor gives compatible engine-management systems a direct way to measure ethanol content so the calibration can respond to the fuel actually moving through the system.
Haltech Flex Fuel Composition Sensor for 3/8 (GM Spring Lock) Fittings w/Plug & Pins (HALHT-011000)
Fuel Delivery Must Remain Stable Under Load
Before increasing boost, confirm that the fuel system can maintain the required pressure and volume.
Log:
- Low-side fuel pressure
- High-side pressure where applicable
- Injector duty cycle
- Fuel-pump voltage
- Controller duty
- Commanded lambda
- Measured lambda
Falling pressure under boost is a stop-testing condition.
Do not rely on ECU enrichment commands when the mechanical system cannot deliver the requested fuel.
The AEM digital pressure gauge can be configured for oil or fuel pressure and provides an analog output for compatible data-logging or engine-management systems, making it useful when pressure stability needs to be reviewed under load.
AEM 52mm Pressure (Oil or Fuel) Digital Gauge (AEM30-4401)
Measured lambda is equally important. The AEM X-Series Wideband UEGO gauge provides a complete sensor-and-controller package for monitoring air-fuel ratio during tuning and repeated testing.
AEM X-Series Wideband UEGO AFR Sensor Controller Gauge (AEM30-0300)
Ignition Timing Has as Much Influence as Boost
More ignition advance can increase torque and cylinder pressure even when boost remains unchanged.
Timing should be reviewed across:
- Engine speed
- Load
- Gear
- Fuel
- Intake temperature
- Coolant temperature
- Knock response
A single peak timing number does not prove the calibration is safe. Review the complete trace and how it changes during repeated runs.
Temperature Changes the Safe Operating Window
A boost target that appears stable during a cool dyno pull may become unsafe after heat soak or sustained use.
Monitor:
- Compressor outlet temperature where available
- Intake-air temperature
- Coolant temperature
- Oil temperature
- Fuel temperature
- Exhaust-gas temperature where applicable
As temperature rises, air density, knock margin, oil viscosity, and cooling-system reserve can all change.
Road-Course Use Requires a Different Limit
A brief street pull or drag pass does not reproduce a full road-course session.
Sustained operation adds cumulative heat to:
- Coolant
- Engine oil
- Intake charge
- Fuel
- Turbocharger
- Transmission
- Differential
When data shows that engine-oil temperature is limiting repeatability, the Mishimoto universal 25-row cooler can serve as the core of a custom system built around the required thermostat, hoses, fittings, mounting, and airflow.
Mishimoto Universal 25 Row Oil Cooler - Black (MISMMOC-25BK)
A road-course setup may require a lower peak load target so the system can repeat lap after lap without overheating or losing pressure.
Why Dyno Numbers Need Context
Dyno results vary with:
- Dyno type
- Correction method
- Gear
- Tire
- Ramp rate
- Temperature
- Vehicle restraint
More importantly, one short pull does not prove the setup can survive its intended duty cycle.
A useful target is one the engine can repeat with stable fuel pressure, oil pressure, coolant temperature, intake temperature, and knock behavior.
Wastegate Duty Can Reveal How Hard the System Is Working
Wastegate duty is strategy-specific, but trends can still provide useful information.
Rising duty for the same boost may suggest:
- Hotter air
- A charge leak
- A weakening actuator
- Exhaust restriction
- A turbo moving away from its efficient range
Falling duty while boost rises uncontrollably may indicate boost creep or another control problem.
Wastegate duty should be reviewed with boost, rpm, throttle, pressure, and temperature data.
For custom turbo systems that require a 45mm external gate, the Turbosmart Gen V HyperGate45 provides a dedicated boost-control component that can be selected around the turbo, manifold, exhaust flow, and target pressure range.
Turbosmart Gen V WG45 HyperGate45 External Wastegate - Black (TURTS-0553-1012)
Engine Condition Changes the Limit
A fresh engine with documented clearances is not equivalent to a high-mileage engine with unknown maintenance history.
Before increasing load:
- Perform compression testing
- Perform leak-down testing when appropriate
- Inspect spark plugs
- Verify oil pressure
- Inspect the oil and filter
- Confirm crankcase ventilation
- Check cooling-system condition
A conservative calibration cannot protect a mechanical part that is already close to failure.
Compression Ratio and Chamber Design Matter
Static compression ratio, piston design, combustion-chamber shape, cam timing, and charge motion all influence cylinder pressure and knock margin.
Two engines with identical displacement and boost may tolerate very different torque.
The intended fuel, turbocharger, compression ratio, and duty cycle should be considered together before an engine build is finalized.
The Drivetrain May Reach Its Limit First
Safe engine output does not automatically mean the rest of the vehicle can support the torque.
Evaluate:
- Clutch capacity
- Transmission torque rating
- Transfer case
- Differential
- Axles
- Driveshaft
- Tire grip
Torque delivery can matter as much as the peak value. A smoother boost ramp may protect the drivetrain while preserving top-end power.
Different Operating Situations Need Different Strategies
| Situation | Primary Concern | Best Next Check |
|---|---|---|
| Small turbo at high rpm | The compressor may approach choke, overspeed, or low-efficiency operation | Review the compressor map, outlet temperature, and exhaust backpressure |
| Large turbo at low rpm | Rapid torque rise can stress rods and drivetrain components | Manage torque and boost by rpm and gear |
| Road-course use | Sustained heat and oil control become dominant | Use conservative, repeatable load targets with temperature protection |
| High-altitude operation | The turbo must achieve a higher pressure ratio for the same gauge boost | Check turbo-speed, temperature, and pressure-ratio margin |
Build a Limit Map Instead of Choosing One Number
A safe calibration uses limits that change with operating conditions.
The strategy may include:
- Torque by rpm
- Boost by gear
- Temperature-based load reduction
- Fuel-pressure protection
- Lean-condition protection
- Knock response
- Turbo-speed limits
- Oil-pressure safeguards
The purpose is not to remove every correction so the car holds one dyno number. Protection strategies should reduce load when the engine leaves the verified operating window.
Important: No universal safe-boost number exists for an engine family. The tuner needs the exact hardware, engine condition, fuel, environment, calibration, and intended duty cycle.
A Reliable Boost-Planning Process
- Define the goal. Choose the required response, torque, power, and duty cycle.
- Establish engine health. Perform maintenance, compression, leak-down, oil-pressure, and cooling checks.
- Select the turbocharger. Confirm compressor and turbine operation near the intended airflow and pressure ratio.
- Verify the fuel. Use the exact octane and ethanol content required by the calibration.
- Validate fuel delivery. Confirm pressure, injector capacity, pump voltage, and lambda under load.
- Verify boost control. Check wastegate operation, leaks, creep, and control authority.
- Set torque limits. Protect the engine and drivetrain across rpm and gear.
- Log temperatures and knock. Review intake, coolant, oil, ignition, and knock behavior.
- Confirm turbo limits. Stay within the manufacturer’s speed and operating-range guidance.
- Test repeatability. Validate the setup under the real operating duration rather than one ideal pull.
Common Safe-Boost Mistakes
- Copying a PSI number from another turbo or engine
- Equating manifold pressure with cylinder pressure
- Ignoring altitude and pressure ratio
- Testing on one fuel and driving on another
- Removing ECU protection to preserve a dyno number
- Ignoring exhaust backpressure
- Using low-rpm torque as proof of engine safety
- Choosing peak output without defining duty cycle
- Assuming a brief pull proves track reliability
- Increasing boost on an engine with unknown mechanical condition
Questions to Answer Before Increasing Boost
- Which compressor and turbine are installed?
- Where does the turbo operate on its compressor map?
- What torque can the engine and transmission support at each rpm?
- Which fuel and ethanol range does the calibration require?
- How are boost, fuel pressure, oil pressure, knock, and temperature protected?
- How much exhaust backpressure is present?
- What duty cycle must the setup repeat?
- How will turbo speed or operating margin be verified?
Frequently Asked Questions
Is Lower Boost Always Safer?
Lower load generally reduces risk, but poor fuel, excessive ignition timing, lean mixture, high temperature, unstable boost control, or mechanical failure can make even modest boost unsafe.
Can a Boost Gauge Show Turbo Efficiency?
No. Compressor efficiency requires pressure ratio, airflow, temperature, and operating-map context. A boost gauge shows pressure at one sensor location.
Can Two Turbos Make Different Power at the Same PSI?
Yes. Compressor efficiency, air mass, outlet temperature, exhaust backpressure, intercooler loss, and engine airflow can all change the result.
Is Peak Horsepower or Peak Torque More Dangerous?
Both matter, but high low-rpm torque can create severe cylinder pressure and drivetrain load before peak horsepower occurs.
Can ECU Knock Control Make Any Boost Level Safe?
No. Knock control has limits and may react only after abnormal combustion begins. It cannot compensate for inadequate fuel delivery, overheating, overspeed, or weak mechanical components.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| PSI does not define engine load | Airflow, temperature, timing, fuel, and combustion determine the real stress. |
| The same boost can make different power | Turbo efficiency and engine airflow change air mass at the same manifold pressure. |
| Low-rpm torque can be the immediate limit | Boost by rpm and gear can protect rods, clutch, transmission, and traction. |
| Fuel and temperature define knock margin | Verify actual fuel, pressure, lambda, and temperature under load. |
| Duty cycle changes the safe target | A short pull and a long track session place different demands on the system. |
| Safe boost is a map, not a number | Use torque, pressure, temperature, fuel, knock, and turbo-speed limits together. |
Related JDC Guides

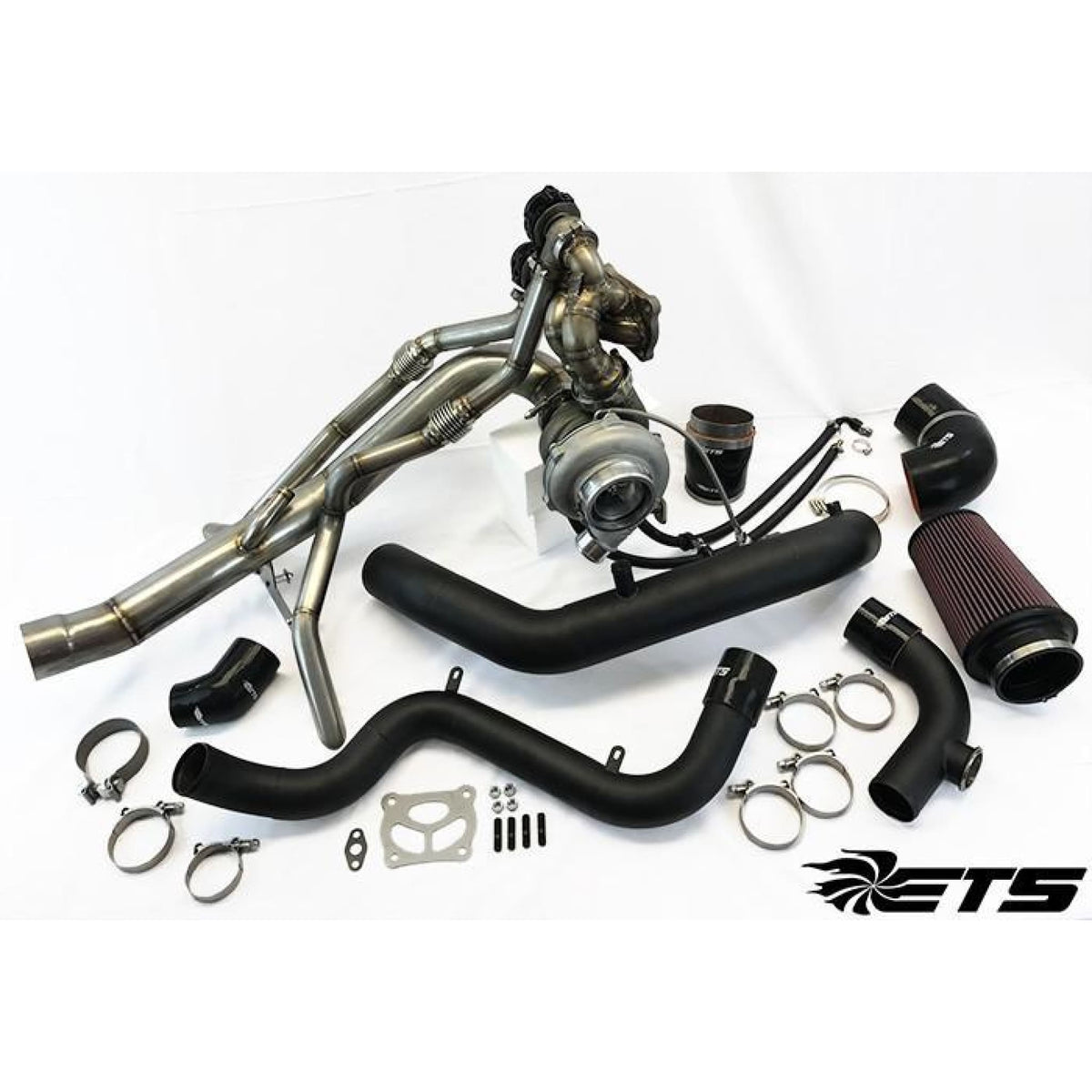

Set boost from the engine’s condition, airflow, torque capacity, fuel, ignition timing, temperature, turbo operating range, drivetrain strength, and intended duty cycle—not from a universal PSI claim. Find turbochargers, intercoolers, wastegates, boost-control hardware, and supporting components in our Forced Induction collection.
