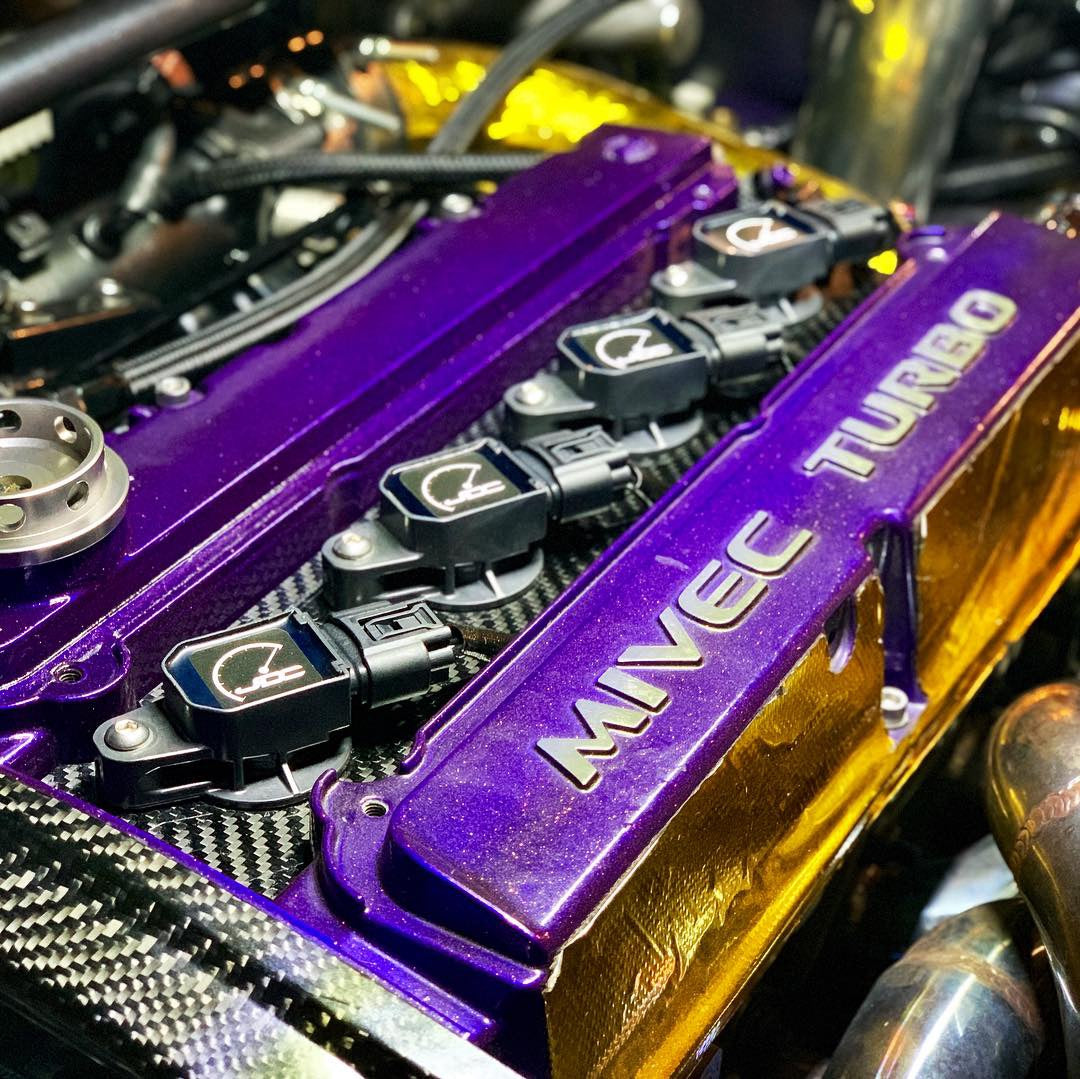

Converting an Evo 4-9 to coil-on-plug ignition replaces the original remote coil and plug-wire setup with one coil mounted directly above each spark plug.
At first glance, most COP systems look similar. There is a mounting plate, four coils, and a wiring harness sitting neatly across the valve cover. The important differences are underneath that presentation.
JDC offers several Evo 4-9 COP configurations using either Denso coils or Hitachi GT-R-style coils. Buyers can also choose between new coils, refurbished coils, or an unassembled system that allows an experienced builder to supply their own components.
The right system depends on the car’s power level, ECU setup, service plan, budget, and engine-bay goals. It should not be chosen by appearance alone, and a COP conversion should not be treated as an automatic horsepower upgrade.
Its main value is replacing the factory remote-coil and plug-wire layout with a cleaner, more modern ignition arrangement. That setup only works properly when the coils, harness, mounting plate, dwell strategy, spark plugs, and engine condition all agree.
What a Coil-on-Plug Conversion Actually Changes
The factory Evo ignition arrangement uses remote coils and plug wires to deliver spark to the cylinders. A COP system places an individual coil directly at each spark plug.
That removes the long plug wires and creates a more compact layout across the top of the engine. It can also make coil replacement and cylinder-by-cylinder diagnosis more straightforward when the system is installed and documented properly.
The mounting plate keeps the coils positioned at the correct height and angle. The harness connects the coils to the vehicle’s ignition electronics, while the ECU or ignition strategy controls how long each coil is charged before firing.
Moving the coils does not automatically create more spark energy or more power.
Ignition performance still depends on voltage supply, coil condition, dwell, spark-plug heat range, plug gap, cylinder pressure, wiring quality, and calibration. A badly matched COP system can perform worse than a healthy factory arrangement.
The conversion also cannot repair low compression, a weak fuel pump, failing injectors, knock, or poor tuning. Those problems need to be diagnosed before the ignition system is blamed.
Denso COP Systems Suit Many Street and Show Builds
Denso-based systems are the established route for many Evo 4-9 street cars, show builds, and moderate performance setups.
They offer a clean engine-bay layout without forcing the owner into the higher-output GT-R-style coil package. For many cars, that makes the Denso route the practical balance between appearance, serviceability, and cost.
The JDC COP System With Refurbished Denso Coils for Evo 4-9 is the more budget-conscious complete option. It provides an assembled Denso-based package without requiring the buyer to source every major component individually.
Refurbished coils should not be expected to look identical to brand-new parts. Their value depends on how they are inspected, tested, prepared, and supported. Buyers should review the current listing for details about coil condition, included boots or seals, testing, and warranty coverage.
JDC COP System With Refurbished Denso Coils for Evo 4-9
Owners who prefer a completely new service baseline can choose the JDC COP System With New Denso Coils for Evo 4-9. This follows the same general Denso path while starting with new coils rather than refurbished units.
The extra cost does not automatically mean more horsepower. But it provides the confidence of beginning with new ignition components.
JDC COP System With New Denso Coils for Evo 4-9
Hitachi GT-R Coils Serve a Different Type of Build
Hitachi GT-R-style coils are a different physical and electrical package.
They are commonly considered for more demanding builds that need greater ignition capability under higher cylinder pressure. That may include cars running substantial boost, more aggressive fuel setups, or power levels that place heavier demands on the spark system.
The JDC COP System With Hitachi GT-R Coils for Evo 4-9 represents this higher-output path.
Choosing GT-R coils changes more than the coil itself. The mounting plate, spacers, harness, connector layout, and calibration requirements must all match the selected coil family.
A Denso plate or harness should not be used with GT-R coils simply because the parts appear close in photographs. Small differences in coil height, body shape, mounting points, and connectors can create poor fitment or electrical problems.
The tuner should also confirm the correct dwell strategy and plug setup for the exact ECU and coil configuration before the car is operated under load.
JDC COP System With Hitachi GT-R Coils for Evo 4-9
Complete, Unassembled, and DIY COP Routes
Not every owner needs the same level of assembly.
A complete system reduces the amount of sourcing and compatibility work. This is usually the easiest route for someone who wants a known combination of coils, plate, harness, and mounting components.
An experienced builder may prefer the JDC Unassembled COP System Without Coils. This option gives the installer more control over the final parts selection and may allow known-good coils to be reused.
The tradeoff is responsibility.
When the system arrives without coils or final assembly, the installer becomes responsible for coil compatibility, connector quality, crimping, pin position, strain relief, grounding, and final testing.
A lower starting price can quickly become more expensive if connectors, boots, seals, specialty tools, or replacement coils still need to be purchased.
For most owners, a complete matched system is easier to install and troubleshoot. The unassembled route makes more sense when the installer already understands the Evo ignition system and has a clear reason for selecting each component separately.
JDC Unassembled COP System Without Coils
JDC Evo 4-9 COP Options at a Glance
| Configuration | Main Advantage | Important Check |
|---|---|---|
| Refurbished Denso complete system | Lower-cost entry into an assembled Denso setup | Coil condition, testing, warranty, and included components |
| New Denso complete system | New-coil service baseline for street and show builds | Correct Denso plate, harness, and ECU requirements |
| Hitachi GT-R coil system | Higher-output coil option for demanding combinations | Matching plate, spacers, harness, dwell, and plug setup |
| Unassembled system without coils | More control over component sourcing and final assembly | Installer skill, coil compatibility, wiring quality, and testing |
The Mounting Plate Is More Than an Engine-Bay Detail
The COP mounting plate may be the most visible part of the conversion, but it also performs a real job.
It positions the coils, establishes their height, supports the mounting hardware, and affects how the harness can be routed. Standard, Show-Series, and hideaway-oriented layouts can produce very different engine-bay results.
A standard plate generally keeps the coils and wiring more visible and accessible. A recessed Show-Series layout can create a cleaner appearance, while a hideaway arrangement routes more of the harness beneath the plate.
Those choices must follow the coil family.
For example, JDC’s Show-Series plate is specified for Denso coils rather than Hitachi GT-R coils. An owner should not choose the plate first and then try to force incompatible coils into it.
A wire-tucked appearance also requires safe harness routing. Wiring still needs protection from exhaust heat, sharp edges, engine movement, and areas where future inspection would be difficult.
Spark Plugs, Gap, and Dwell Still Matter
A stronger ignition coil cannot make up for the wrong spark plug or a poor calibration.
As boost and cylinder pressure increase, the spark has to work harder to cross the plug gap. That may require a different plug heat range, a tighter gap, or a revised dwell strategy depending on the complete engine setup.
The correct answer should come from the tuner and the actual data from the car.
Using a powerful coil does not mean the plug gap should be opened as far as possible. Excessive gap can make the ignition system less stable under load.
Likewise, tightening the gap until a misfire disappears may only hide another problem. Weak fuel delivery, incorrect timing, knock, low compression, or damaged wiring can create symptoms that look like ignition breakup.
Log the car under the conditions where the problem occurs instead of replacing parts based on guesswork.
How to Diagnose a Misfire After a COP Installation
Start with the fault code and identify the affected cylinder whenever possible.
Note when the problem occurs. A misfire at idle may have a different cause from a breakup that appears only at high boost or high engine speed.
Inspect the simple items first:
- Connector locks and pin seating
- Harness routing and grounds
- Coil boots and water seals
- Spark-plug condition and gap
- Oil or water inside the plug wells
- Loose mounting hardware or damaged wiring
When it is safe to do so, swap one compatible coil or spark plug between cylinders and see whether the fault follows the component.
If the misfire stays on the same cylinder, the problem may involve the injector, wiring, compression, ECU output, or calibration rather than the coil itself.
Changing one variable at a time is much more useful than replacing the complete COP system without evidence.
What to Verify Before Ordering
- Confirm the Evo generation, engine setup, ECU, and any existing ignition changes.
- Choose Denso or Hitachi GT-R coils before selecting the plate and harness.
- Decide between new coils, refurbished coils, supplied coils, or a no-coil system.
- Verify the spark-plug specification, gap, and tuner recommendations.
- Plan harness routing, grounding, strain relief, and future coil access.
- Confirm exactly what the listing includes and which parts must be ordered separately.
- Compare the complete installed cost rather than the price of the main kit.
The final cost may include coils, plugs, wiring, hardware, spacers, tuning, tools, and professional labor. A less expensive kit can cost more overall if several supporting components still need to be sourced.
Common Mistakes
- Assuming a COP conversion automatically adds horsepower
- Mixing Denso and GT-R-specific plates, harnesses, or spacers
- Buying a no-coil system without budgeting for known-good coils and connectors
- Routing the harness against heat, sharp metal, or moving parts
- Blaming every high-load breakup on the ignition coils
- Changing plug gap without discussing it with the tuner
- Choosing the plate for appearance before choosing the coil family
Maintenance Keeps the System Reliable
A COP conversion still needs regular inspection.
Keep coil boots and water seals in good condition. Inspect the connectors whenever the plugs are serviced. Check the harness for heat damage, abrasion, or strain near the terminals.
Before removing the factory ignition system, photograph the original routing and preserve the removed parts when practical. Save installation instructions, pinouts, dwell information, and spark-plug specifications with the vehicle’s records.
After the first drive or heat cycle, inspect the mounting hardware, connectors, harness routing, and contact points according to the manufacturer’s procedure.
Good documentation makes future diagnosis much easier, especially if the car changes tuners or owners later.
Frequently Asked Questions
Will a JDC COP system require tuning?
Requirements depend on the coil family, ECU, wiring, and existing calibration. Confirm dwell and installation requirements with JDC and the vehicle’s tuner before driving the car under load.
Are refurbished Denso coils suitable for a street car?
They can be a budget-conscious option when they are supplied and tested as described in the current listing. New coils provide a new-component baseline but do not automatically create more power.
Can the Show-Series plate be used with GT-R coils?
No. The Show-Series plate is specified for Denso coils rather than Hitachi GT-R coils. Use the mounting plate designed for the selected coil family.
Will GT-R coils fix every high-boost misfire?
No. High-load misfires can also come from plug gap, fuel delivery, compression, wiring, grounds, calibration, or other mechanical problems. Diagnose the cause before replacing the ignition system.
Select the Coil Family First
Denso COP systems suit many street, show, and moderate performance builds. Buyers can choose refurbished or new coils depending on budget and the service baseline they want.
The Hitachi GT-R route serves a different type of build with greater ignition demands. It needs its own compatible plate, harness, spacers, and calibration strategy.
The most reliable system is not the one with the most expensive coil or the cleanest-looking plate. It is the one where the coils, wiring, plugs, dwell, hardware, and mechanical condition of the engine were planned together.
Key Takeaways
| Key Takeaway | What It Means for the Build |
|---|---|
| COP does not automatically add power | Its main benefits are packaging, serviceability, and a modern ignition layout. |
| Choose the coil family first | Denso and Hitachi GT-R coils require matching plates, harnesses, spacers, and setup. |
| New and refurbished Denso systems serve different budgets | New coils provide a fresh baseline, while tested refurbished coils can reduce entry cost. |
| GT-R coils are for more demanding applications | They still require correct dwell, plugs, wiring, and calibration to work properly. |
| The complete system matters | Coils, harness, mounting plate, plugs, hardware, and ECU strategy must agree. |
| Misfires need methodical diagnosis | Inspect codes, plugs, connectors, wiring, fuel, and compression before blaming the coils. |
