JDC Unassembled Coil-On-Plug Ignition Systems | No Coils (Evo 4-9)

Build your own JDC Coil-On-Plug Ignition System using the same proven harness, mounting plate, and hardware found in our complete COP systems while supplying your own ignition coils.

Designed as an upgrade for the factory Mitsubishi Lancer Evolution 4-9 ignition system, this package is ideal for customers who already have compatible coils or prefer to source their own. You receive the core components needed to build a JDC COP system without paying for another set of ignition coils.

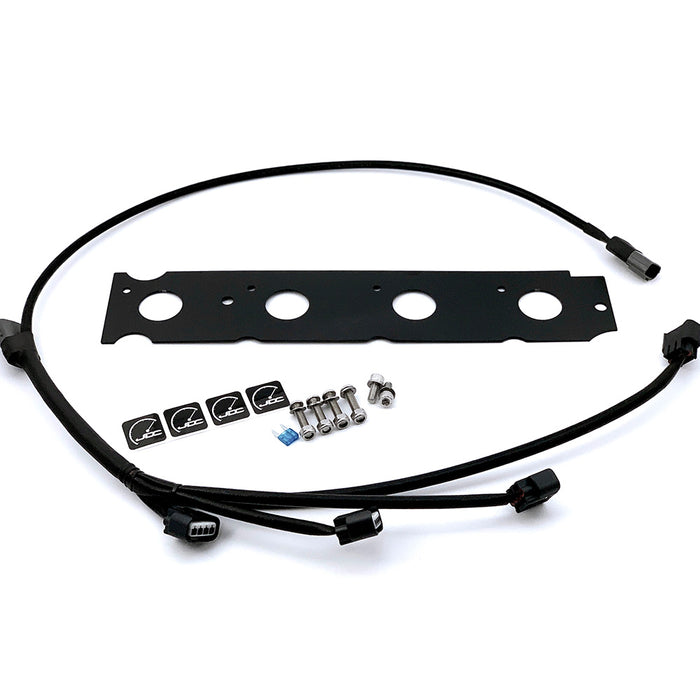

The system includes the JDC COP wire harness, your selected mounting plate, and the required mounting hardware. Simply add a compatible set of ignition coils to complete the setup.

Features

• Fits 1996-2006 Mitsubishi Lancer Evolution 4-9
• Includes JDC COP wire harness
• Includes mounting plate and required mounting hardware
• Ignition coils are not included
• Allows you to use your own compatible coils
• Available with standard or Hideaway wire harness
• Multiple mounting plate and hardware options available
• Designed and assembled in the USA
• Uses the same components found in our complete JDC COP systems
• Proven JDC COP platform available since 2015

Which Ignition Coils Should I Use?

For the best combination of performance and long-term reliability, we recommend using authentic Denso ignition coils.

Our two preferred Denso part numbers are:

• Denso 90919-02240
• Denso 90919-02265
• Denso 673-1306

Both coil options have been used successfully in Evo COP systems for many years and are widely trusted throughout the performance community.

Other ignition coils using Denso-style connectors may also be compatible, but fitment and performance can vary. If you are unsure about a specific coil, contact us before ordering so we can help confirm compatibility.

Why Choose the Hideaway Harness?

The optional JDC Hideaway harness is designed for enthusiasts who want the performance and reliability of our standard COP harness with a cleaner, wire-tucked engine bay.

It uses the same high-quality connectors, military-spec Tefzel wire, and protective wire sheath as our standard harness, but routes the wiring underneath the mounting plate to conceal more of the harness from view.

How the Hideaway Harness Is Different

• Both harness leads exit the valve cover on the right side
• Wiring is concealed inside a single protective sheath
• The right-side connector makes its connection behind the thermostat housing
• The left-side lead can be routed under or over the intake manifold
• The left-side connection is made behind the valve cover for a cleaner appearance

The Hideaway harness provides the same functionality as our standard harness while creating a much cleaner engine bay installation.

Proven JDC COP Experience

Since 2015, JD Customs USA has been a trusted authority on Evo coil-on-plug ignition systems, with thousands of JDC COP systems sold and proven in street, track, and high-horsepower applications around the world. Our systems are widely recommended by respected tuners throughout the Evo community because of their consistent performance, proven reliability, and long-term durability.

With more than a decade of hands-on experience designing, assembling, supporting, and refining these ignition systems, JDC has become one of the most experienced and established sources for Evo 4-9 COP conversions.

Important Ordering Information

Ignition coils are not included with this system.

This listing is intended for customers who already own compatible coils or plan to purchase them separately. Select your preferred wire harness, mounting plate, hardware, and other available options before placing your order.

If you want a complete ready-to-install system, choose one of our JDC Coil-On-Plug Ignition Systems equipped with new or refurbished Denso ignition coils instead.
