What Widebody Hardware Needs to Do
A successful widebody hardware installation starts with the complete mounting system. The bolt, washer, threaded insert, body panel, mounting surface, and hole size must work together. When those pieces are matched correctly, the hardware holds the panel evenly, remains removable for future service, and avoids concentrating pressure around the mounting holes.
The step-by-step example below replaces aluminum rivets on Varis bumper ducts fitted to a Mitsubishi Evo. It uses M5 rubber well nuts in the plastic bumper with JDC Titanium bolts and flush washers. The same process applies to many widebody panels, fender flares, ducts, and trim pieces, but the correct insert and hole size depend on the panel material, mounting surface, and load.
Important: The 3/8-inch hole size shown in this installation matched the M5 well nuts used on this car. Measure the actual well nuts and confirm their required mounting-hole diameter before drilling your bumper or panel.
Choose the Mounting Method Before Drilling
Widebody bolts can thread into well nuts, rivet nuts, backing nuts, or another insert specified by the panel manufacturer. Choose the mounting method based on the body material, access behind it, available depth, expected load, and how often the panel will be removed.
Rubber well nuts suit many light panels mounted to plastic, fiberglass, or other thin surfaces and provide some vibration isolation. Rivet nuts create a more rigid threaded point in suitable materials, while a backing nut and washer can spread load when the back side is accessible. Follow the panel manufacturer's instructions. High-load aero and structural parts require properly engineered mounting and reinforcement.
JDC rubber well nuts provide a front-installed threaded mounting point for compatible widebody panels, bumper ducts, and other light exterior pieces. Their rubber body can isolate vibration and reduce direct contact with softer materials, making them particularly useful when the panel and mounting surface suit a compressible insert.
JD Customs USA Rubber Well Nuts
Plan the Panel Fit Before Making Holes
Test fit the complete panel and confirm body lines, gaps, wheel clearance, door movement, and bumper alignment. Do not use the fasteners to force a poor-fitting panel into position because constant stress can crack or distort it.
Inspect behind every planned hole for wiring, hoses, brackets, liners, fuel components, and structure. Confirm insert depth and leave enough material around each hole. Existing rivet holes located the hardware on the Evo ducts shown here. For a new panel, secure its final position, mark the holes according to the manufacturer's instructions, and recheck the fit before drilling.
Tools and Parts for Installing Widebody Hardware
Gather the complete hardware system and installation tools before removing the original fasteners or drilling the body. Confirm bolt diameter, length, washer size, insert type, and required hole diameter against the actual panel stack.
- JDC Titanium M5 widebody and panel bolts with matching flush washers
- M5 rubber well nuts sized for the panel and mounting holes
- Drill and bits for pilot holes, final holes, or removing existing rivets
- 3/8-inch drill bit, only when confirmed for the specific well nuts being installed
- Masking tape for paint protection and marking
- Appropriate hand tool for the titanium bolts
- Panel-safe cleaner or polish
- Eye protection
An electronic caliper helps measure the well-nut body, panel stack, fastener diameter, and available clearance before drilling. Measuring the actual component is more reliable than copying a drill size from another installation that may use a different insert.
Electronic Digital Caliper- Accurately Measure Hardware & Parts!
When existing hardware is unidentified, a thread checker can distinguish between similar metric and SAE sizes before replacement bolts are selected. This is especially useful when a used panel kit arrives without complete documentation or has been assembled with mixed hardware.
Nut & Bolt Thread Checker for SAE & Metric Hardware
How to Install Widebody Hardware
This installation sequence uses the Evo bumper ducts as a practical example. Adapt the process to the instructions supplied with your widebody kit, the material being drilled, and the type of threaded insert selected for the job.
1. Protect the Surface and Mark the Mounting Points
Clean the area, then apply masking tape around the planned holes and nearby paint. Confirm a new panel's final position before marking it. On the Evo, the existing rivets located each mounting point, so the tape was placed around them before removal.
2. Remove Existing Rivets or Create the Initial Holes
For an existing riveted panel, use a suitable bit and keep the drill centered. Work slowly until the head separates, remove the remaining rivet body, and support the panel as the final fasteners come out. Stop if a rivet spins because excess speed or pressure can enlarge the hole or damage the surrounding material.
For a new installation, create the pilot and final holes using the panel manufacturer's sequence. Keep the drill square to the local surface and stop if the panel moves from its confirmed position.
3. Remove the Panel and Inspect Every Mounting Point
Inspect both sides for cracks, stretched holes, thin edges, or old fastener damage. Repair a damaged mounting point before installing new hardware. Clean the panel and confirm it sits against the body without being pulled into position. The Evo ducts were cleaned and polished at this stage.
4. Drill Each Hole for the Selected Insert
Match the final hole to the selected insert. The M5 well nuts on this Evo required the bumper holes to be enlarged with a 3/8-inch bit, but that is not a universal widebody hardware size. Drill square to the surface and follow the correct method for painted metal, fiberglass, carbon fiber, or the material on your car.
Deburr each hole and test fit the insert. A well-nut flange should sit flat without falling through, folding over, or damaging the mounting surface. Confirm every hole before assembly.
5. Install the Threaded Inserts
Install each insert according to its instructions. The rubber well nuts used here press into the prepared bumper holes until their flanges sit flat. Confirm each insert is straight, has room to compress, and is free of cuts or distortion. Rivet nuts require the correct setting tool and a suitable mounting surface.
6. Align the Panel and Start Every Bolt by Hand
Return the widebody panel, flare, duct, or trim piece to its confirmed position and align it with the threaded inserts. Start every titanium bolt by hand before tightening any one location. Each bolt should engage smoothly. If it resists immediately, back it out and realign the panel or insert rather than forcing the threads.
The JDC kit pairs custom-head titanium bolts with flush-fitting washers for visible panel mounting. Choose the bolt quantity, length, and finish that match the actual panel stack and installation.
JDC Titanium Widebody & Panel Hardware (Universal)
7. Tighten the Hardware Evenly

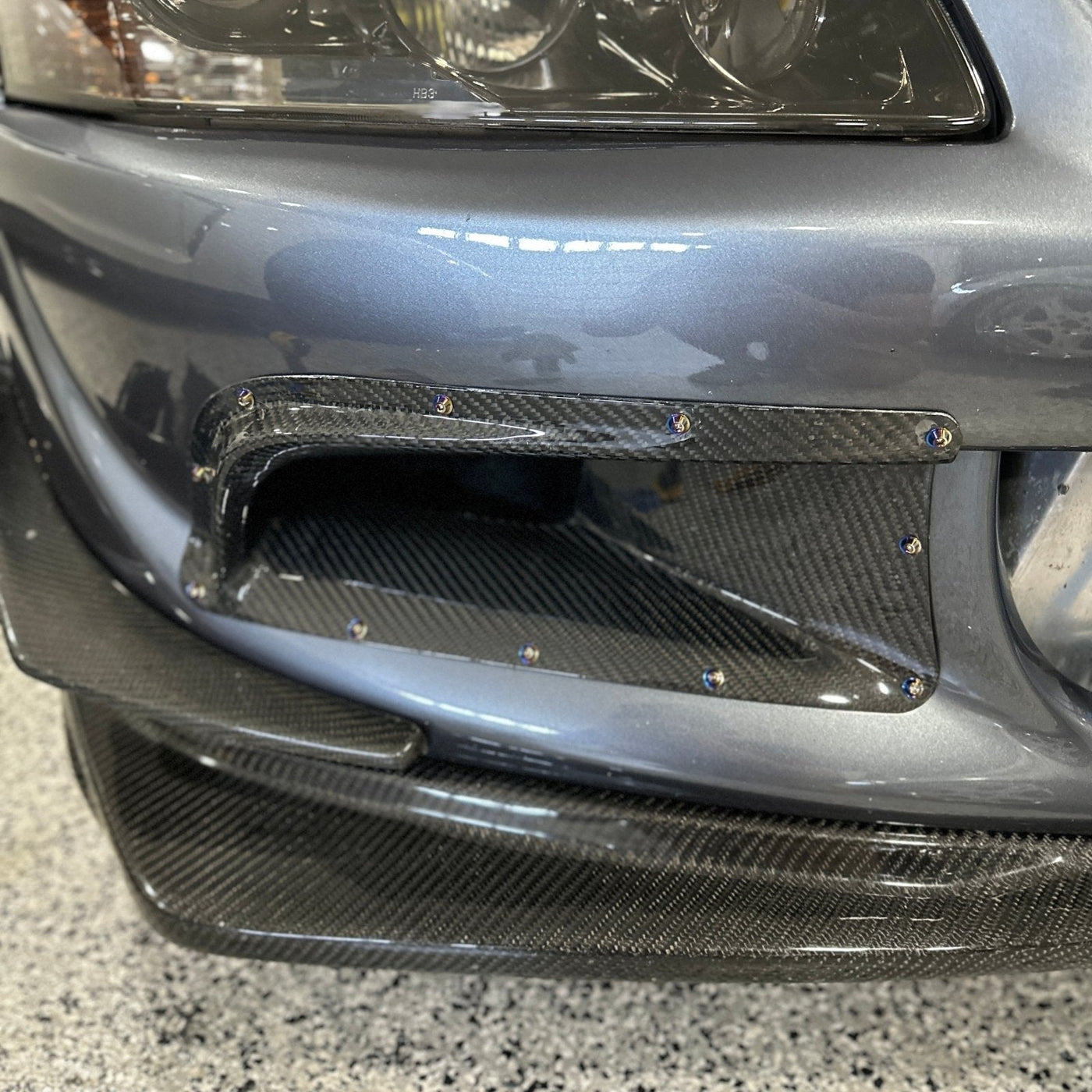

Snug the bolts gradually in a cross pattern or another sequence that seats the panel evenly. Watch the gaps and washer contact. Excessive tightening can distort a well nut, crush a composite panel, or pull on plastic. Remove the tape and inspect for bowing, lifted edges, pinched sections, or angled washers. The finished Evo duct shows the clean, removable result.
What to Check After the First Drive
Reinspect the hardware after the first drive and after normal vibration, temperature changes, and washing. Look for loose bolts, rotating inserts, movement, or changing panel gaps. If a mounting point repeatedly loosens, inspect the hole, insert size, alignment, and load instead of adding more clamping force.
Common Installation Mistakes
- Drilling before the complete widebody panel is positioned and checked
- Using a generic drill size without measuring the specific threaded insert
- Allowing the bit to walk into the paint or away from the original hole center
- Installing hardware over cracked, stretched, or unsupported panel material
- Using bolts that are too short for proper thread engagement or too long for the available clearance
- Tightening one bolt fully before the rest of the panel is aligned
- Overtightening the hardware in an attempt to correct poor panel fit
- Skipping the first-drive inspection after the inserts and panel have settled
Frequently Asked Questions
What Size Drill Bit Is Needed for Widebody Hardware?
The drill size is determined by the specific well nut, rivet nut, or other insert being installed. Measure the insert and follow its instructions before drilling. The M5 well nuts in the Evo example used 3/8-inch mounting holes, but another insert may require a different size.
Should Widebody Hardware Use Well Nuts or Rivet Nuts?
Well nuts suit many light-duty installations in plastic, fiberglass, and thin panels where vibration isolation and front-side installation are useful. Rivet nuts create a more rigid threaded point in suitable materials. Choose based on the mounting surface, access, panel load, and the widebody manufacturer's instructions.
Key Takeaways
| Decision Area | What Matters Most |
|---|---|
| Panel fit | Confirm body lines, gaps, clearance, and movement before drilling any mounting point. |
| Insert choice | Match the well nut, rivet nut, or backing hardware to the material, access, and expected load. |
| Hole size | Measure the actual insert before drilling. The Evo example used 3/8-inch holes for its selected M5 well nuts. |
| Alignment | Start every bolt by hand and seat the panel evenly before final tightening. |
| Clamping force | Tighten gradually and evenly without crushing the panel or overcompressing the inserts. |
| Reinspection | Check for movement, loose bolts, rotating inserts, and changing panel gaps after the first drive. |
